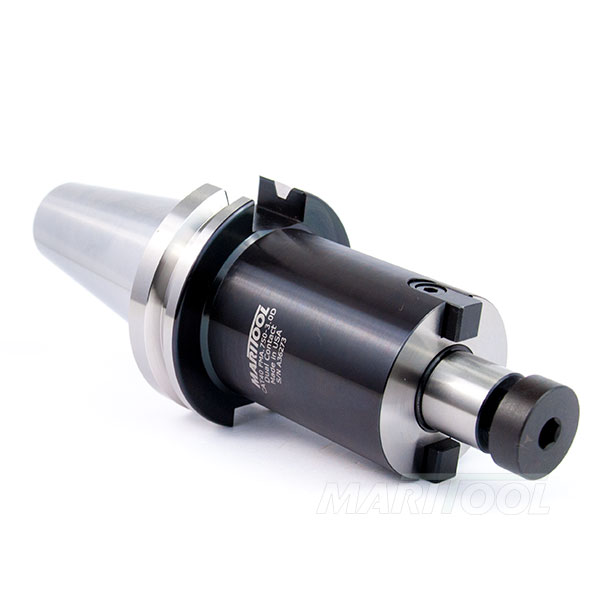

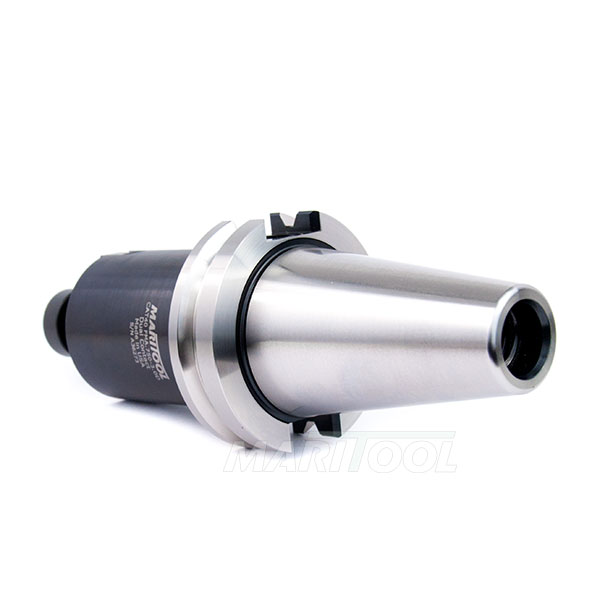

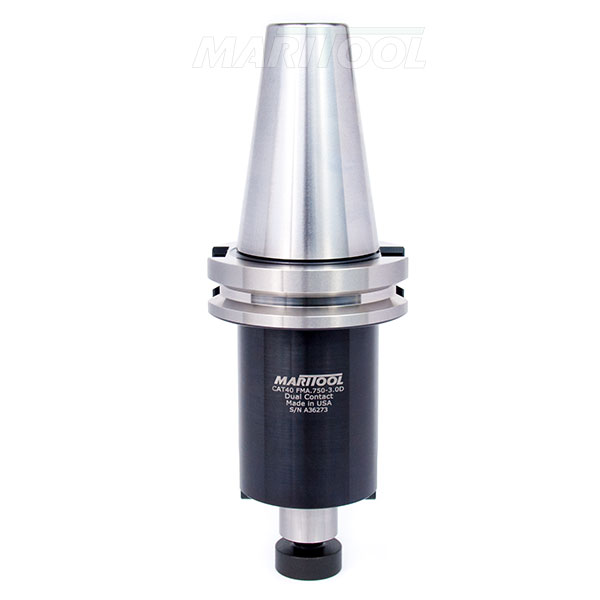

CAT40 DUAL CONTACT .750-3.0 FACE MILL TOOL HOLDER

CAT40 .750-3.0 DUAL CONTACT FACE MILL TOOL HOLDER

Item No.	CAT40-FMA.750-3.0D
Price:	$170.25
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Works on all CAT40 machines with Dual Contact spindles
Compatible with BIG-PLUS® spindles
Arbor diameter is .750 inches
Made from alloy steel hardened to 54 - 56rc
Concentricity is less than .0002 at face and arbor
All critical tool holder surfaces precision ground
Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
Gage length is 3.0 inches
Nose diameter is 1.75 Inches
Lock screw thread is 3/8-24

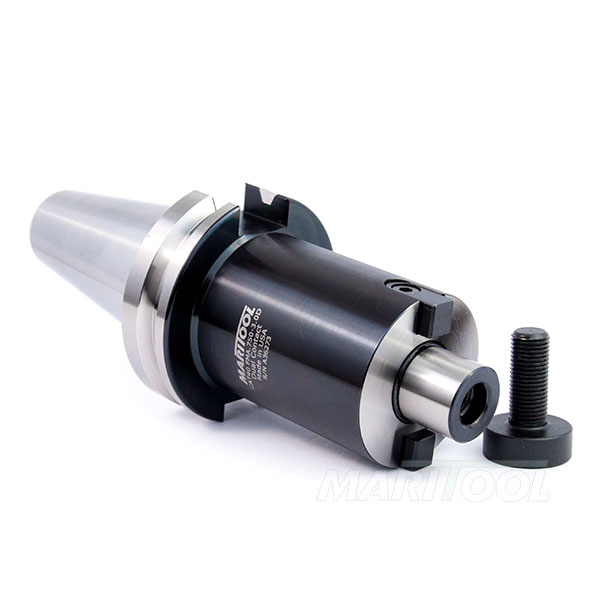

Includes large head 3/8-24 lock screw pictured and a standard 3/8-24 x 1.0 SHCS
Width of removable drive keys are .312 inches
Rear thread for pull stud is 5/8-11
MariTool Part# is CAT40-FMA.750-3.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Arbor Diameter:	.750
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0002
Coolant Thru:	Yes
Finish:	Black Oxide
Gage Length:	3.00
Material:	Hardened Alloy Steel
Nose Diameter:	1.75
Rear Thread:	5/8-11
Taper:	CAT40 DUAL CONTACT
