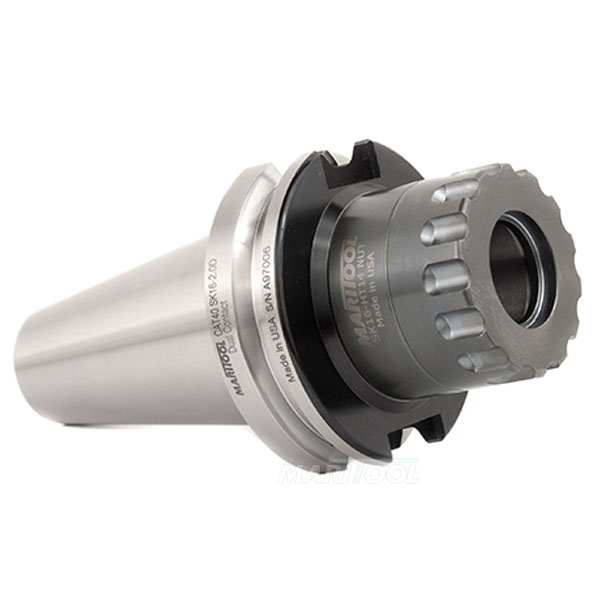

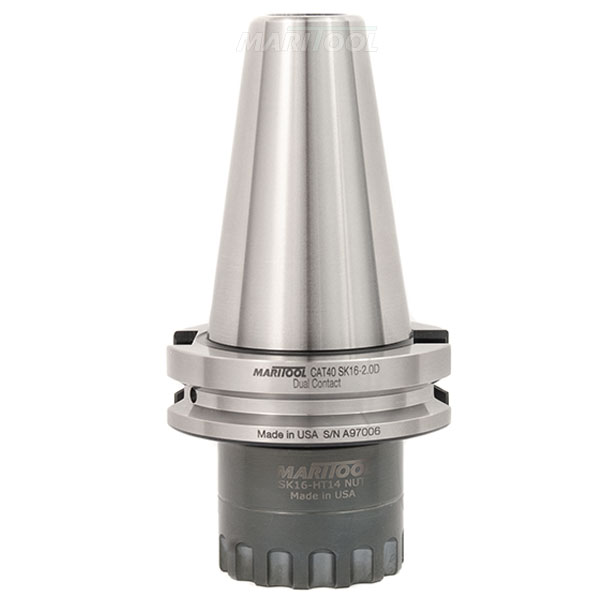

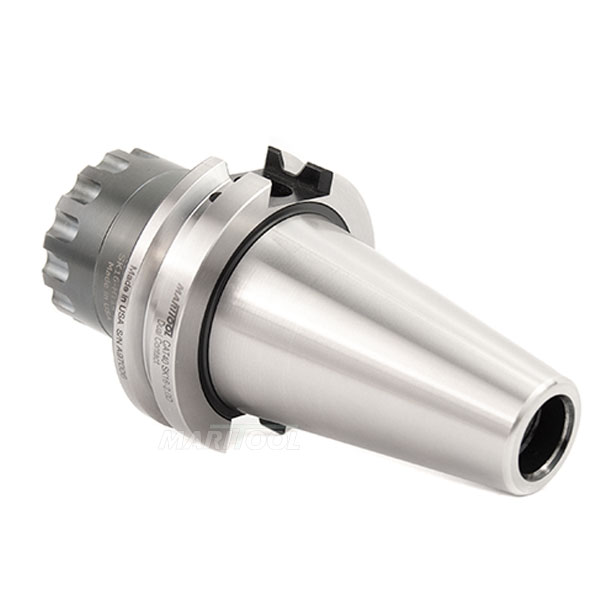

CAT40 HIGH TORQUE DUAL CONTACT SK16 2.0 COLLET CHUCK HOLDER

Item No.	CAT40-SK16-2.0D-HT
Price:	$181.15
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Torque Ratings for SK16 Collet Nuts can be found here
With SK16-HT nut high metal removal rates are possible without shank slippage
Works on all CAT40 machines with Dual Contact spindles
Compatible with BIG-PLUS® spindles
Threaded for stop screw type 2 (not included)
All critical tool holder surfaces precision ground
Made from alloy steel hardened to 54 - 56rc
Tool Holder is balanced to G2.5 at 20,000 rpms
Gage length is 2.0 inches (50mm)
Concentricity is less than .0001 at collet face

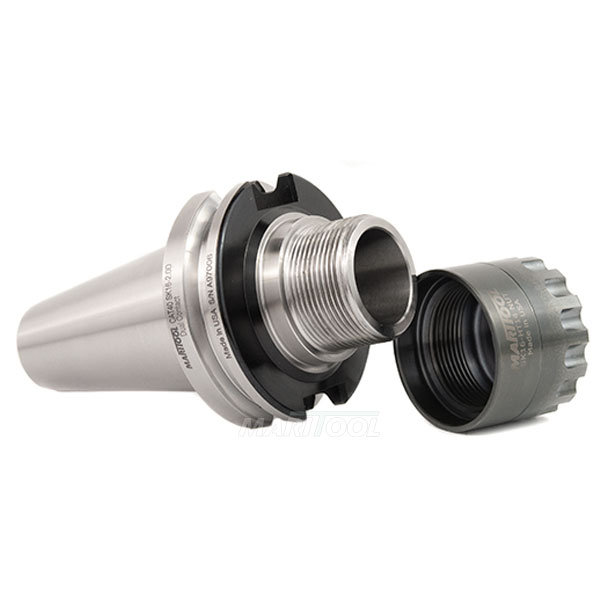

High Torque Collet nut is included
Uses HT14-TWA torque wrench adaptor (not included)
We also recommend CTW-45-220 torque wrench for proper tightening
Coolant thru capability
Rear thread for pull stud is 5/8—11
MariTool Part# is CAT40-SK16-2.0D-HT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Balance Spec:	G2.5 @ 20,000 rpms
Collet Grip Range:	.09-.630 inches
Collet Size:	SK16
Concentricity:	< .0001 at Collet Face
Coolant Thru:	Yes
Finish:	Black Oxide
Gage Length:	2.0
Material:	Hardened Alloy Steel
Rear Thread:	5/8-11
Taper:	CAT40 DUAL CONTACT
