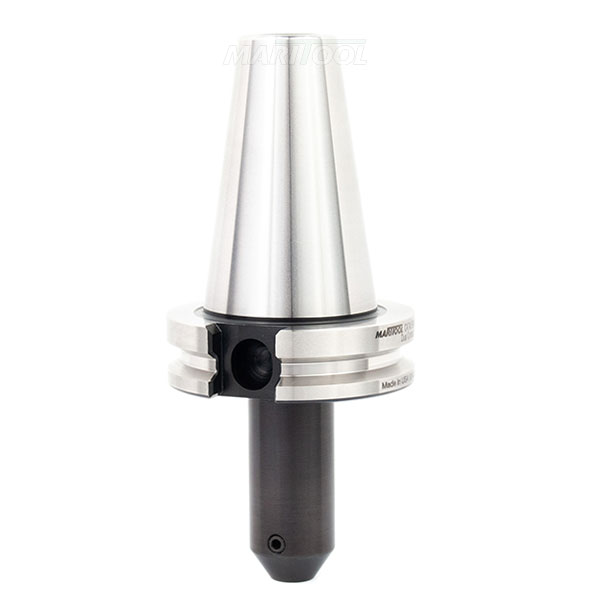

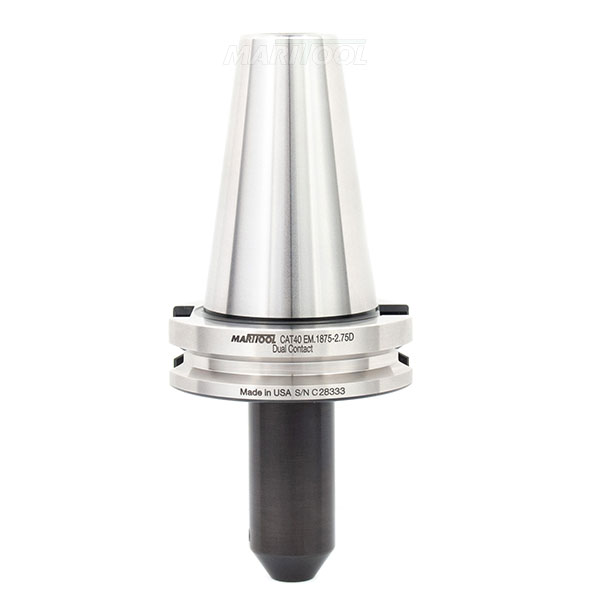

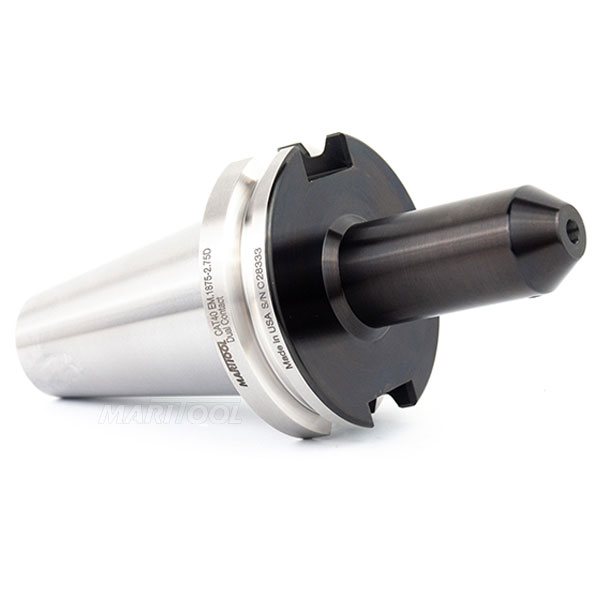

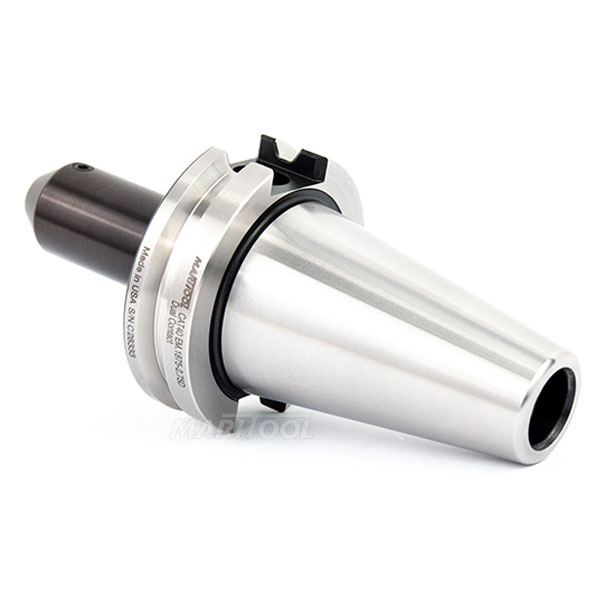

CAT40 3/16 DUAL CONTACT END MILL TOOL HOLDER .1875-2.75 $132.80
CAT40 3/16 DUAL CONTACT END MILL TOOL HOLDER .1875-2.75
Click to enlarge

CAT40 3/16 DUAL CONTACT END MILL TOOL HOLDER .1875-2.75
Click to enlarge 		CAT40 3/16 DUAL CONTACT END MILL TOOL HOLDER .1875-2.75
Click to enlarge
CAT40 3/16 DUAL CONTACT END MILL TOOL HOLDER .1875-2.75
Click to enlarge
Item No. CAT40-EM.1875-2.75D
Price: $132.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-EM.1875-2.75D
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • This tool holder accepts all .1875 shank tooling
  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Coolant thru capable
  • Gage length is 2.75 inches
  • Nose diameter is .875 Inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.1875-2.75D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  2.75
Material:  Hardened Alloy Steel
Nose Diameter:  .875
Rear Thread:  5/8-11
Shank Size:  .1875
Taper:  CAT40 DUAL CONTACT
