CAT40 ER11 3.5 DUAL CONTACT TAPERED NOSE COLLET CHUCK TOOL HOLDER $164.35

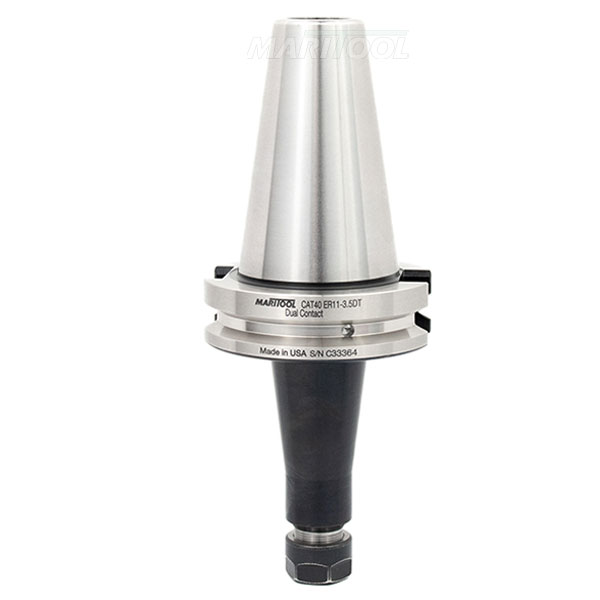

CAT40 ER11 3.5 DUAL CONTACT TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge

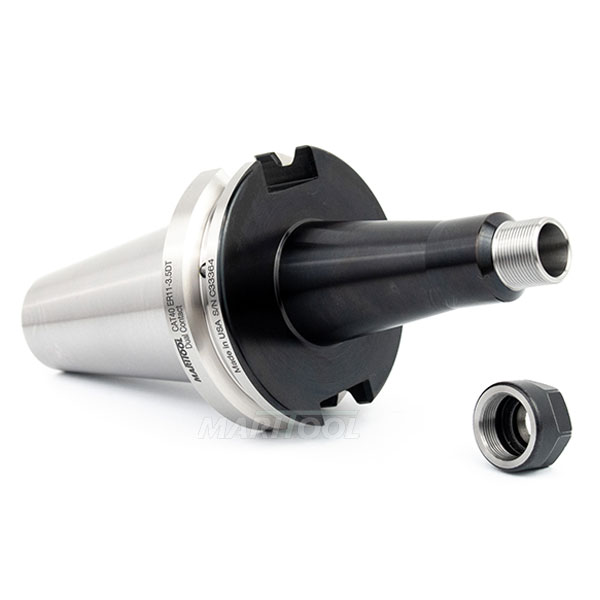

CAT40 ER11 3.5 DUAL CONTACT TAPERED NOSE COLLET CHUCK TOOL HOLDER

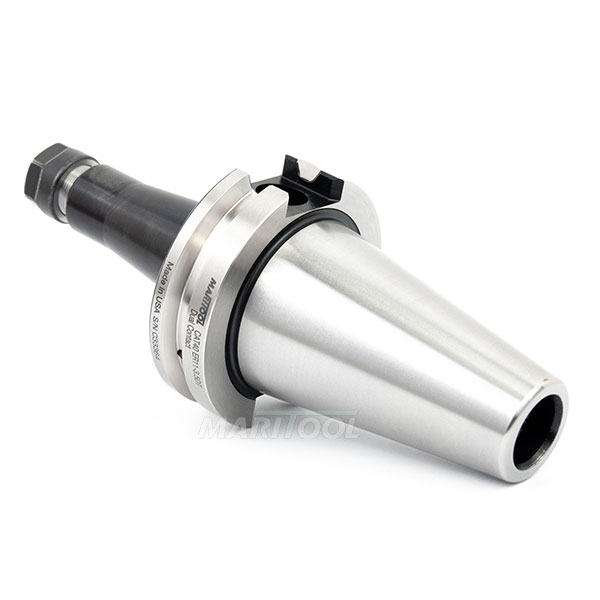

Click to enlarge 		CAT40 ER11 3.5 DUAL CONTACT TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER11-3.5DT
Price: $164.35
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-ER11-3.5DT
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Tool Holder is Balanced to G2.5 at 20,000 rpms
  • Tool holder has a coolant hole thru the center
  • Gage length is 3.5 inches
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is 5/8—11
  • Collet nut is included
  • MariTool Part# is CAT40-ER11-3.5DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Nut:  ER11
Collet Size:  ER 11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.5
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40 Dual Contact
