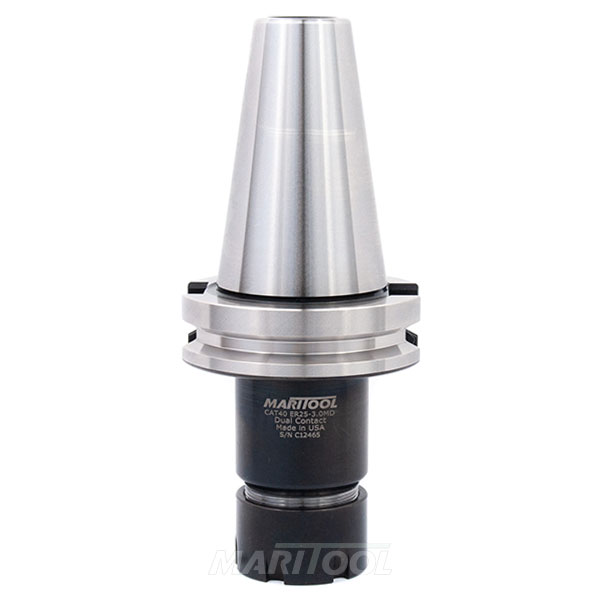

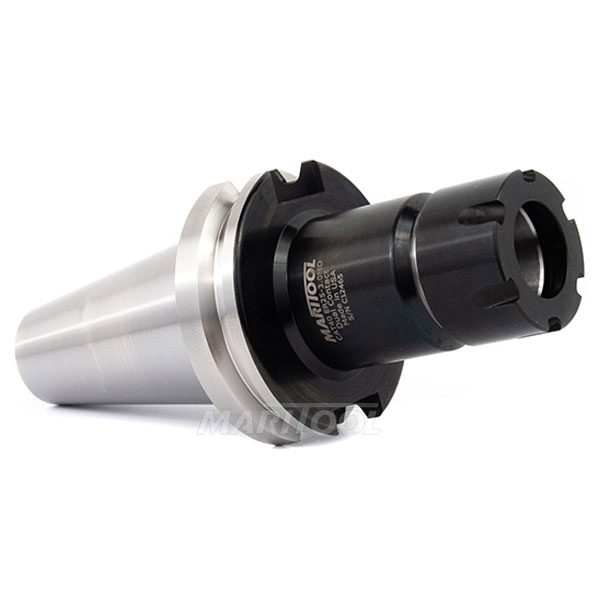

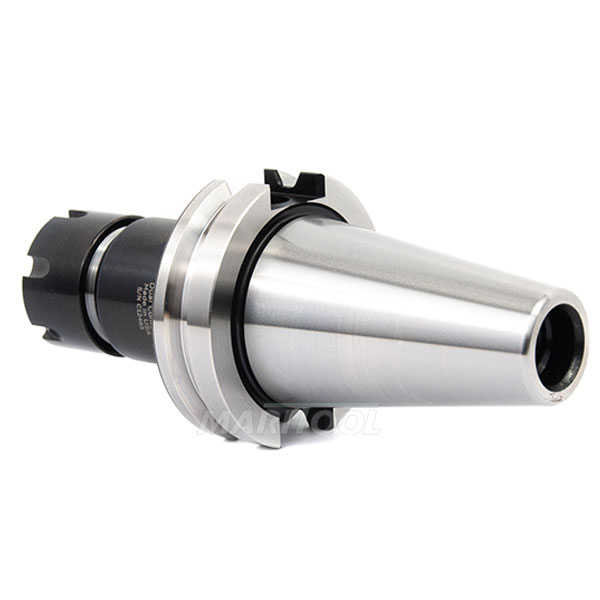

CAT40 ER25 3.0 Dual Contact Mini Nut Collet Chuck

CAT40 ER25 3.0 MINI NUT DUAL CONTACT COLLET CHUCK TOOL HOLDER

Item No.	CAT40-ER25-3.0MD
Price:	$180.85
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

CAT40 Collet Chuck accepts all ER25 collets
Works on all CAT40 machines with Dual Contact spindles
Compatible with BIG-PLUS® spindles
Threaded for stop screw type 2 (not included)
All critical tool holder surfaces precision ground
Made from alloy steel hardened to 54 - 56rc
Balanced to G2.5 at 20,000 rpms
Gage length is 3.0 Inches
Concentricity is less than .0001 at collet face

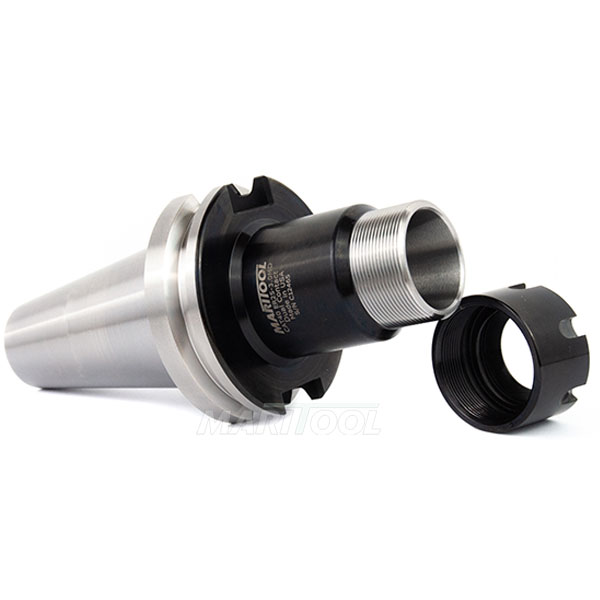

Collet nut is included
Mini Collet Nut is slimmer than standard collet nut
ER25 Mini Nut has an id thread of 30mm X 1.0 pitch. Outside diameter is 1.377 inches (35mm)
Must use ER25M collet wrench
Coolant thru capability
Rear thread for pull stud is 5/8—11
MariTool Part# is CAT40-ER25-3.0MD

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Balance Spec:	G2.5 @ 20,000 rpms
Collet Grip Range:	.024-.6875 inches
Collet Size:	ER25M
Concentricity:	< .0001 at Collet Face
Coolant Thru:	Yes
Finish:	Black Oxide
Gage Length:	3.0
Material:	Hardened Alloy Steel
Rear Thread:	5/8-11
Taper:	CAT40 DUAL CONTACT
