Dual Contact CAT40 Tool Probe Calibrator $296.40

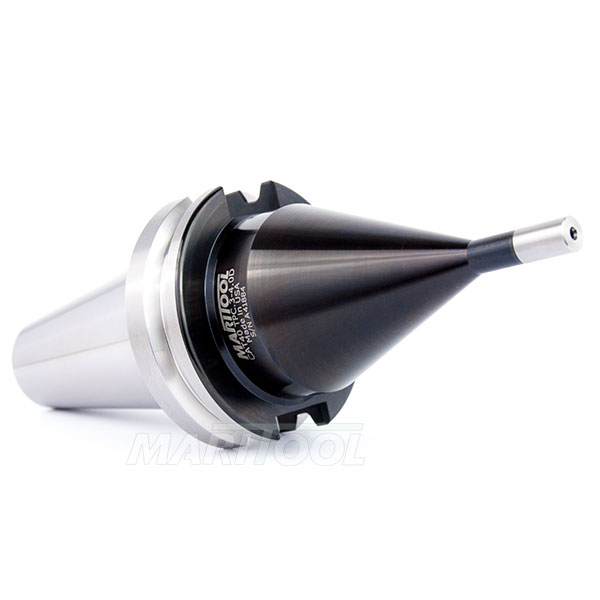

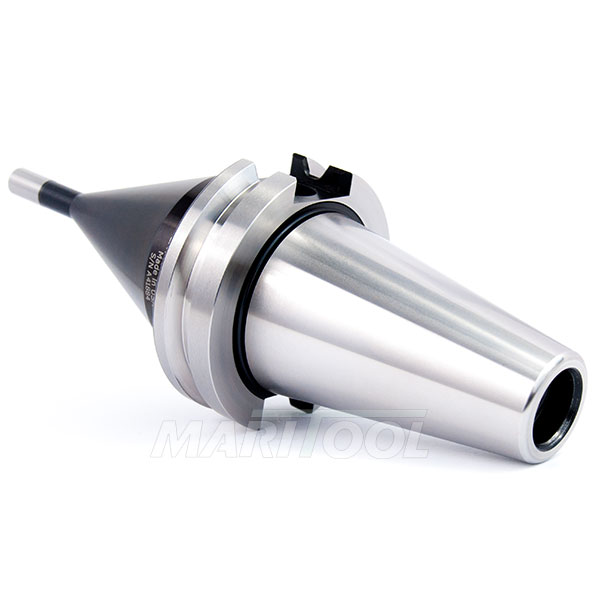

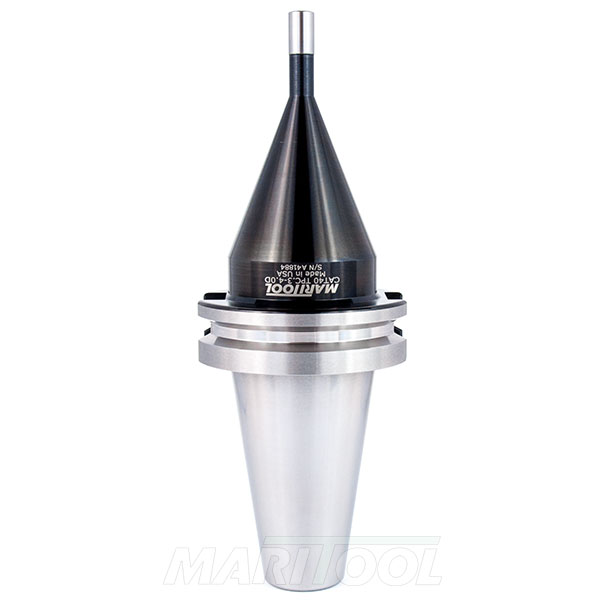

Dual Contact CAT40 Tool Probe Calibrator
Click to enlarge

Dual Contact CAT40 Tool Probe Calibrator
Click to enlarge 		Dual Contact CAT40 Tool Probe Calibrator
Click to enlarge
Dual Contact CAT40 Tool Probe Calibrator
Click to enlarge
Item No. CAT40-TPC.3-4.0D
Price: $296.40
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-TPC.3-4.0D
DWG file  DXF file  STP file  PDF file
Product Info

View complete catalog page

  • Works on all CAT 40 machines with Dual Contact Spindles
  • Compatible with BIG-PLUS® spindles
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is 4.000 inches*
  • Probe diameter is .3000 inches*
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-TPC.3-4.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

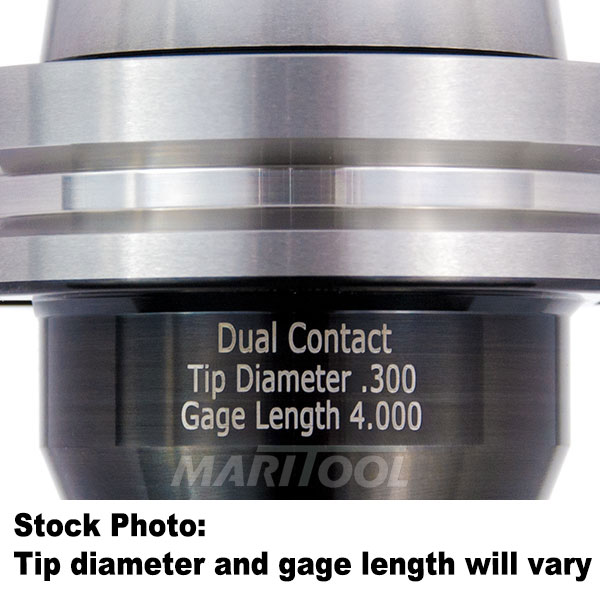

*All calibrated measurements are laser marked on each tool
