CAT40 Laser Tool Probe Calibrator $330.45

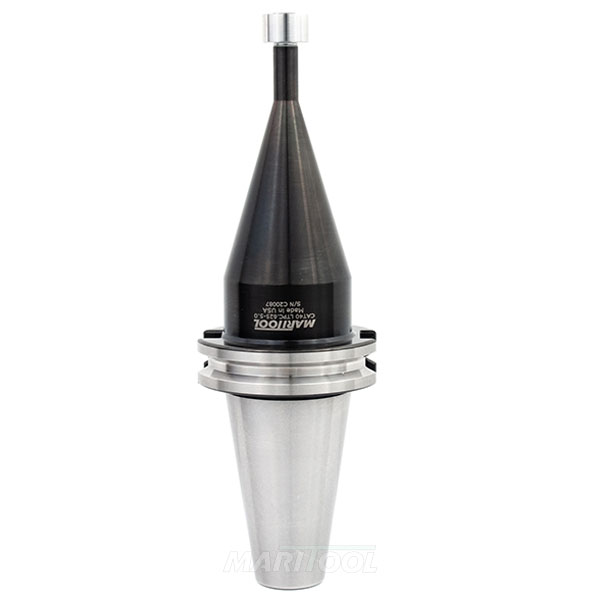

CAT40 Laser Tool Probe Calibrator
Click to enlarge

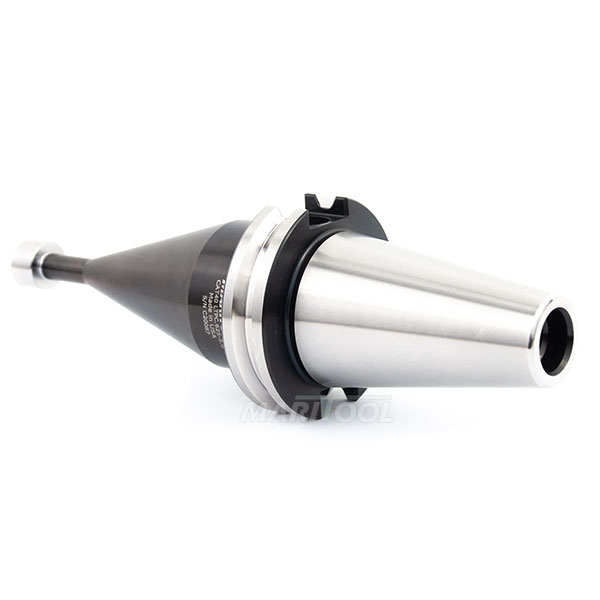

CAT40 Laser Tool Probe Calibrator

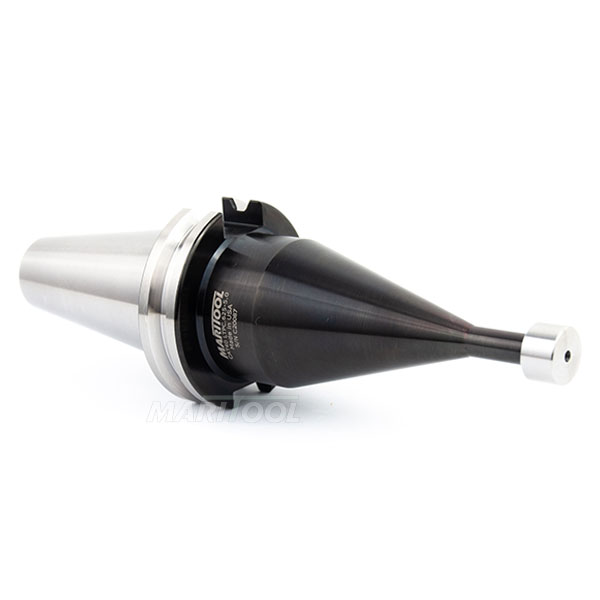

Click to enlarge 		CAT40 Laser Tool Probe Calibrator
Click to enlarge
CAT40 Laser Tool Probe Calibrator
Click to enlarge
Item No. CAT40-LTPC.625-5.0
Price: $330.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-LTPC.625-5.0
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all CAT 40 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe and laser probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is 5.000 inches*
  • Probe diameter is .6250 inches*
  • Probe width is .375 inches*

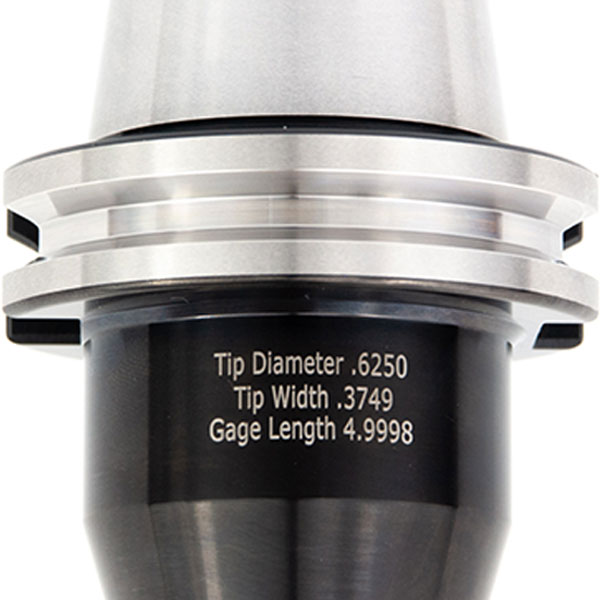

  • Exact dimensions are laser marked on the tool holder
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-LTPC.625-5.0
*All calibrated measurements are laser marked on each tool
