CAT40 Tool Holder OMP60 Probe Holder $247.75

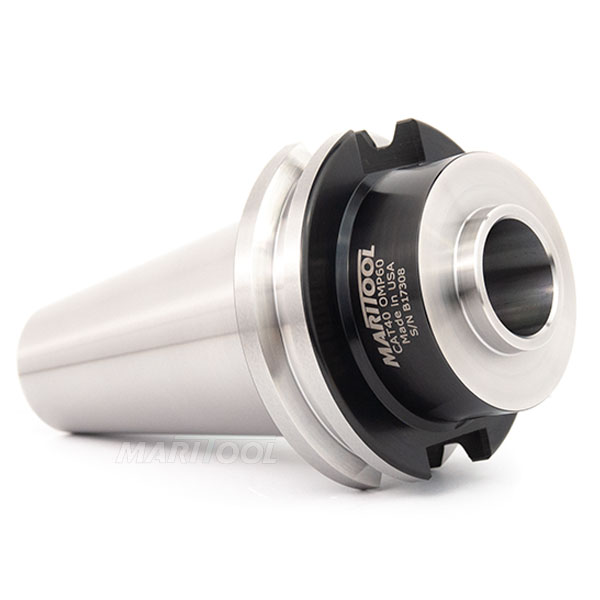

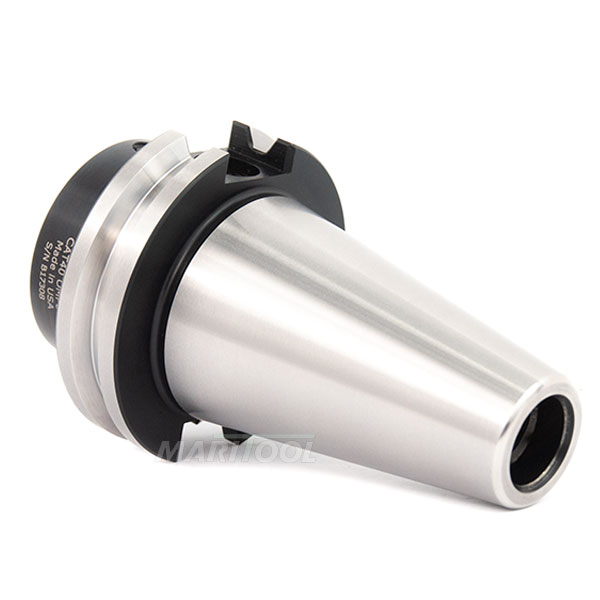

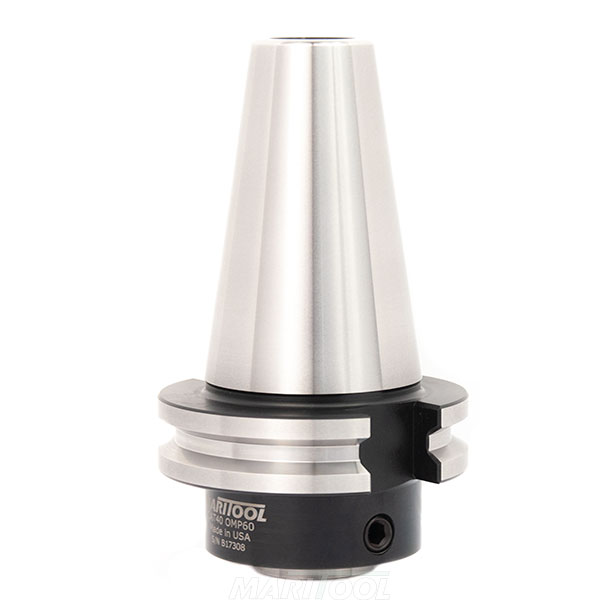

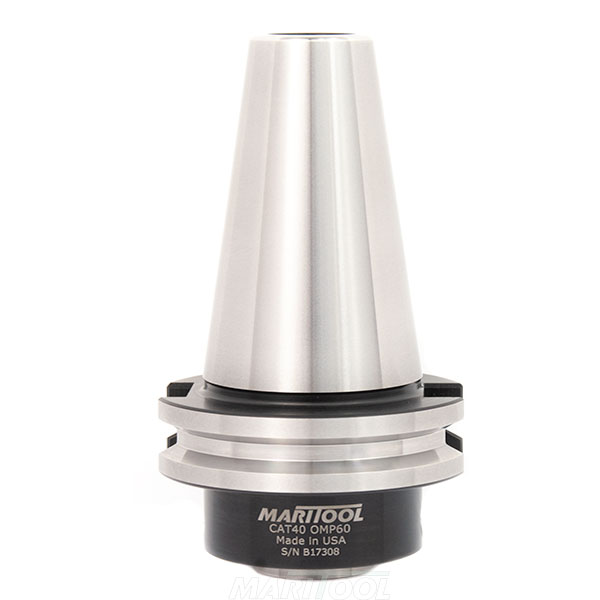

CAT40 Tool Holder OMP60 Probe Holder
Click to enlarge

CAT40 Tool Holder OMP60 Probe Holder
Click to enlarge 		CAT40 Tool Holder OMP60 Probe Holder
Click to enlarge
CAT40 Tool Holder OMP60 Probe Holder
Click to enlarge
Item No. CAT40-OMP60
Price: $247.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-OMP60
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all CAT 40 machines
  • This tool is to be used for Renishaw OMP60 probes
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is approximately 1.375" long
  • Nose diameter is 1.750"
  • Hub diameter is .980" X .170" tall
  • Mounting hole is .790" in diameter x 1.08" deep
  • M8 X 1.25 set screws included (2)
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-OMP60
