BT40 TG100 COLLET CHUCK TOOL HOLDER $129.65

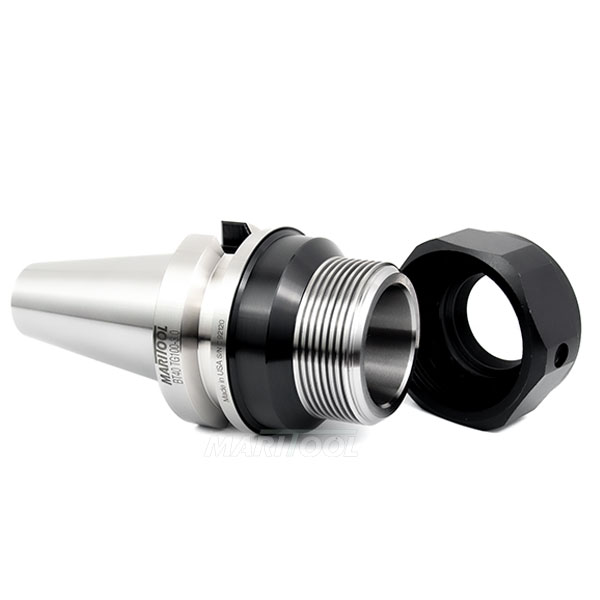

BT40 TG100 COLLET CHUCK TOOL HOLDER
Click to enlarge

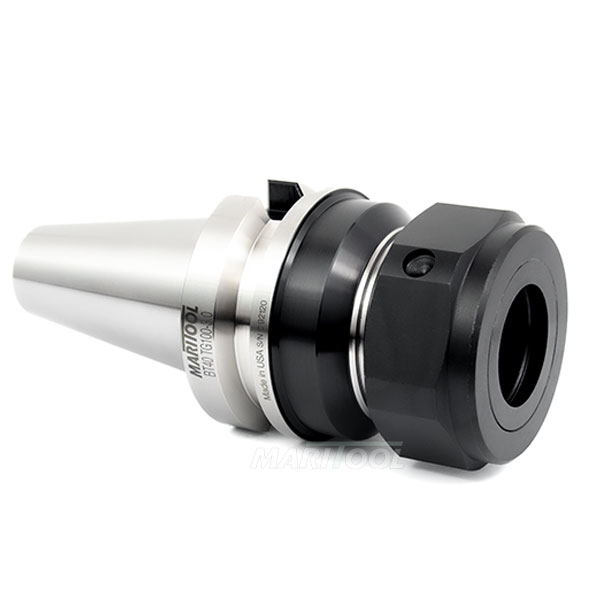

BT40 TG100 COLLET CHUCK TOOL HOLDER

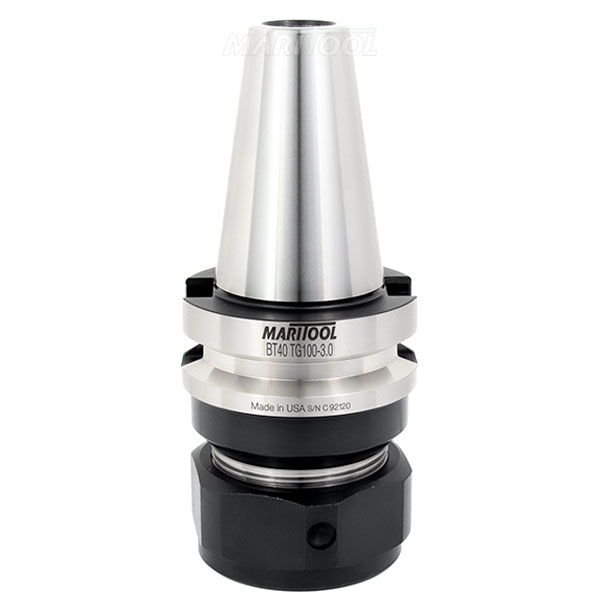

Click to enlarge 		BT40 TG100 COLLET CHUCK TOOL HOLDER
Click to enlarge

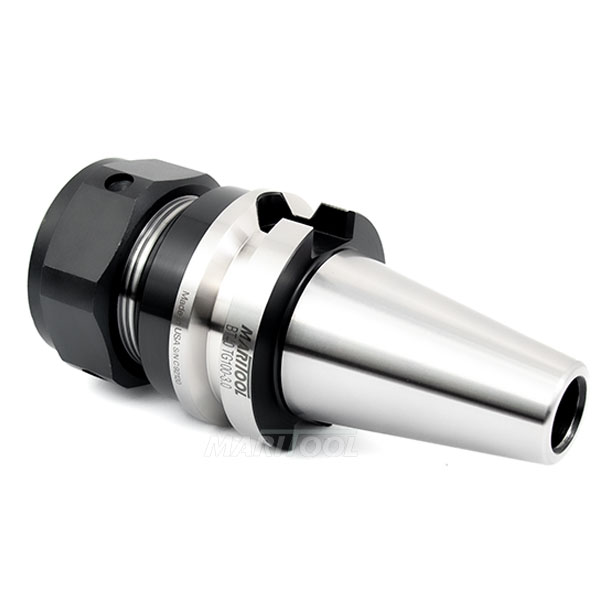

BT40 TG100 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-TG100-3.0
Price: $129.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT40-TG100-3.0
DWG file  STP file  DXF file  PDF file
Product Info

View complete catalog page

  • Collet Chuck accepts all TG100 collets
  • Works on all BT40 machines
  • Threaded for stop screw type 2 (not included)
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.0 inches
  • Collet nut is included
  • Coolant thru capability
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-TG100-3.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Size:  TG100
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
Weight:  2.8
