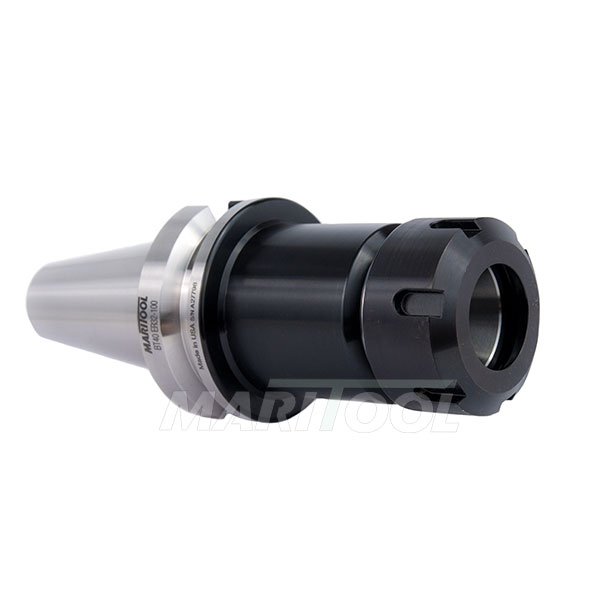

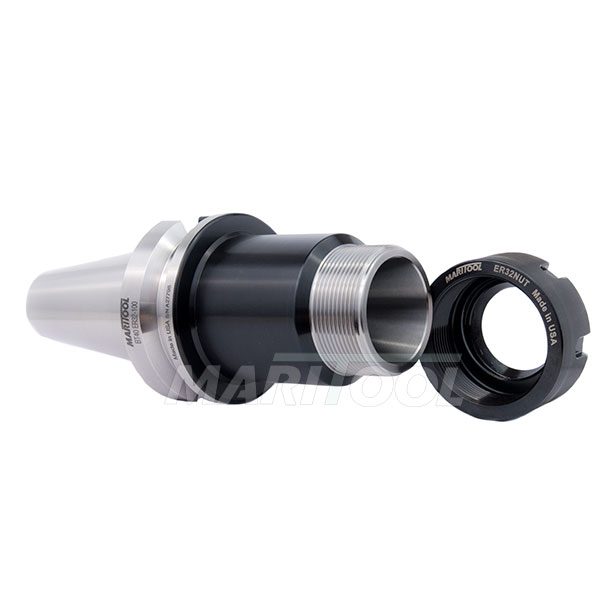

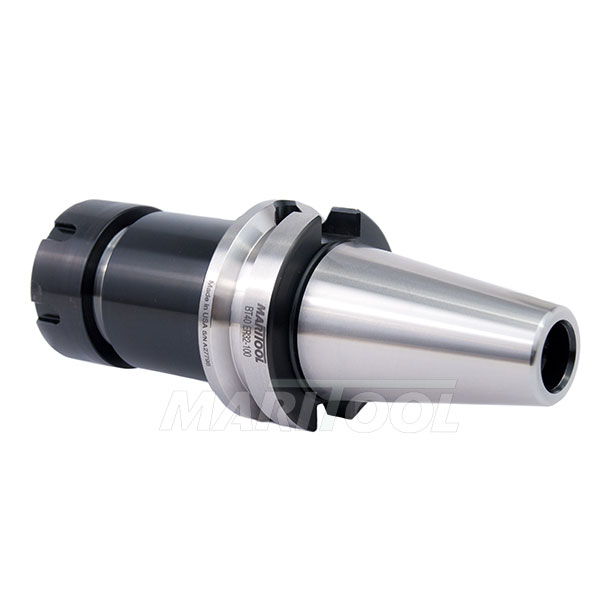

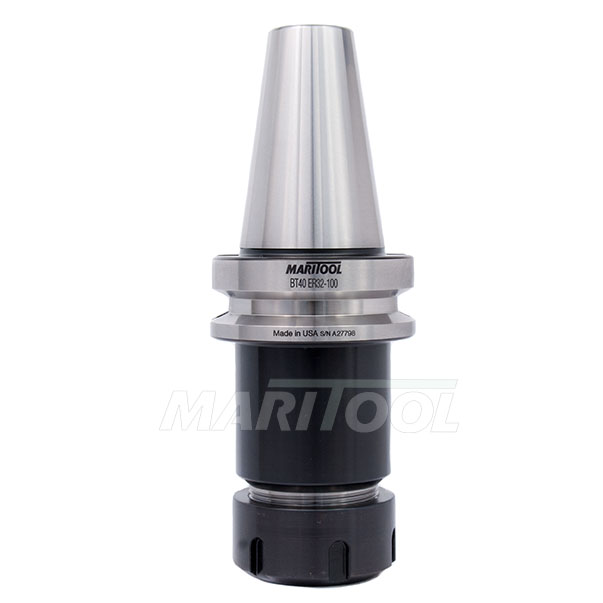

BT40 ER32 100mm COLLET CHUCK TOOL HOLDER $123.40
BT40 ER32 100mm COLLET CHUCK TOOL HOLDER
Click to enlarge

BT40 ER32 100mm COLLET CHUCK TOOL HOLDER
Click to enlarge 		BT40 ER32 100mm COLLET CHUCK TOOL HOLDER
Click to enlarge
BT40 ER32 100mm COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-ER32-100
Price: $123.40
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT40-ER32-100
DWG file  STP file  DXF file  PDF file
Product Info

View complete catalog page

  • Tool Holder accepts all ER32 collets
  • Threaded for stop screw type 2 (not included)
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Concentricity is less than .0001 at collet face
  • All critical tool holder surfaces precision ground
  • Coolant through capability
  • Gage length is 100mm (4.0 inches)
  • Collet nut is included
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-ER32-100
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.875 inches
Collet Size:  ER32
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  100mm
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
