BT40 ER11 150mm TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER $192.00

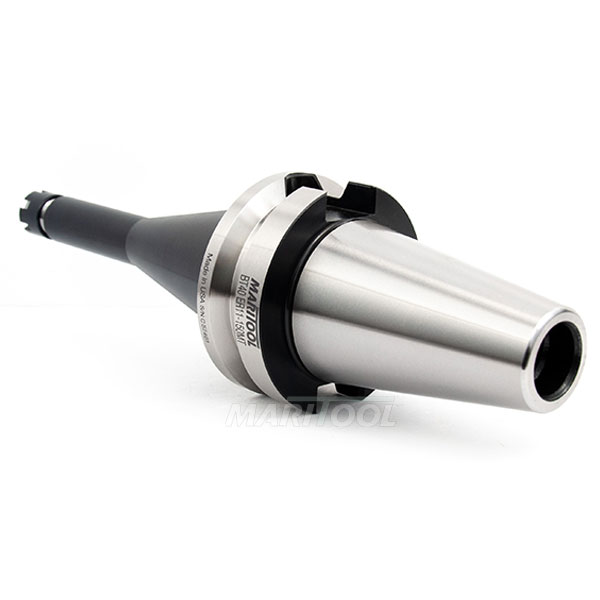

BT40 ER11 150mm TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge

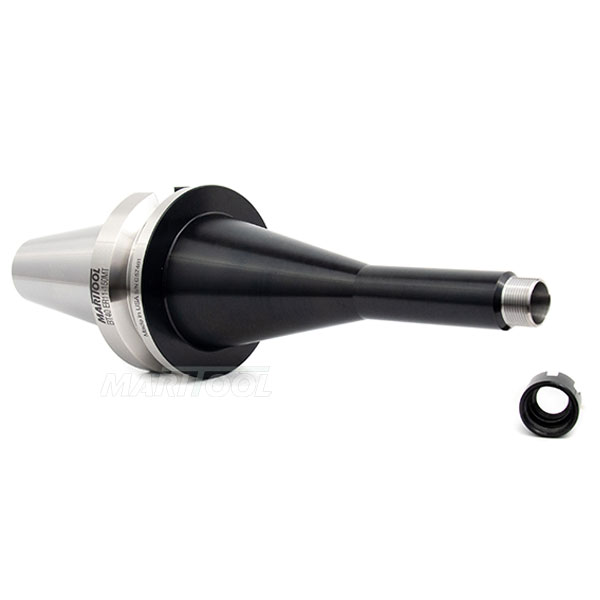

BT40 ER11 150mm TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER

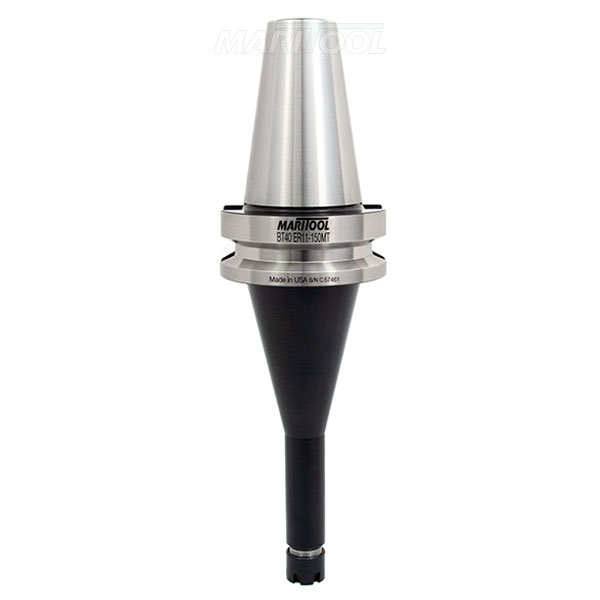

Click to enlarge 		BT40 ER11 150mm TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge

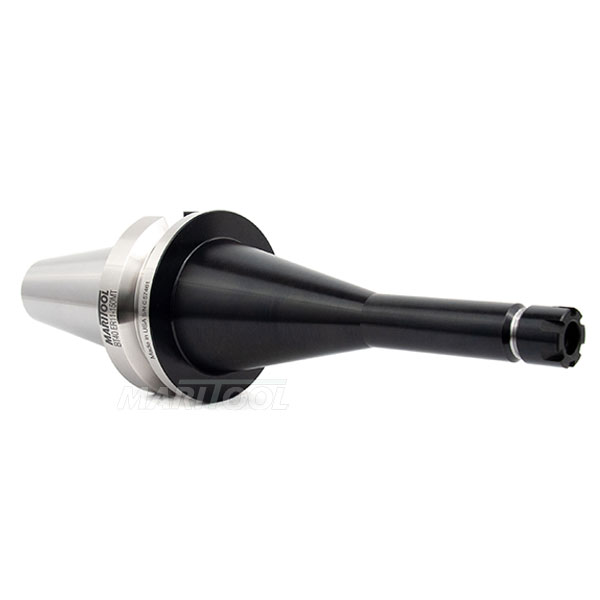

BT40 ER11 150mm TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-ER11-150MT
Price: $192.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all BT 40 machines
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 150mm (5.9 inches)
  • Concentricity is less than .0001 at collet face
  • Coolant through capability
  • Collet nut is included
  • Collet nut is .640 dia. and uses wrench part number ER11M-WRENCH
  • Must use ER11M collet wrench
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-ER11-150MT
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Size:  ER11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  150mm Tapered
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
