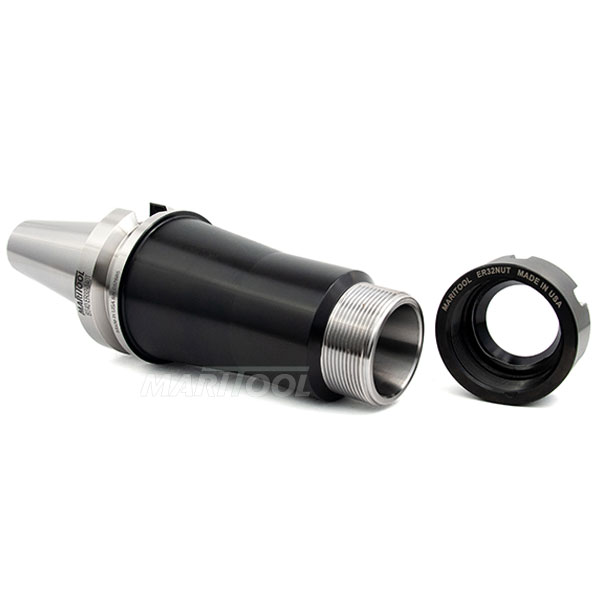

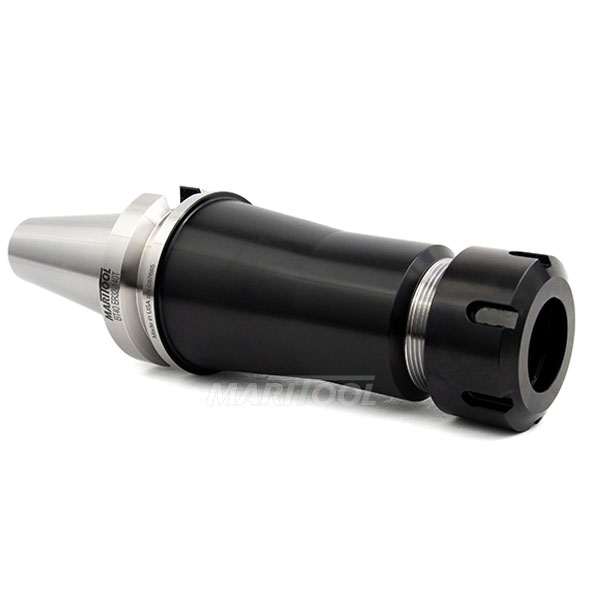

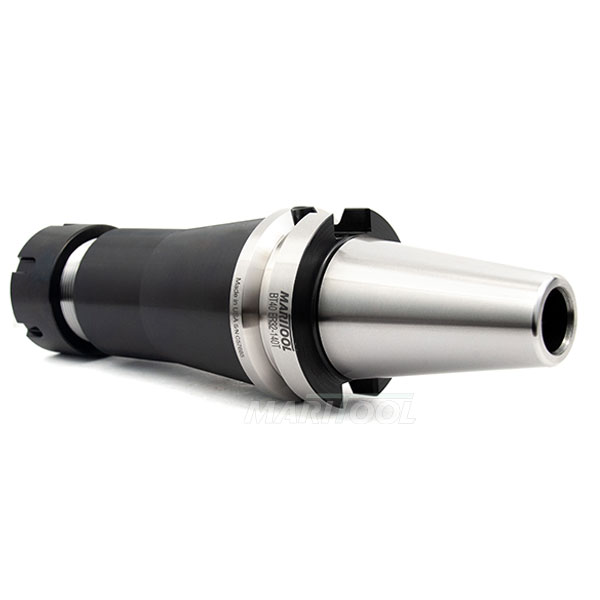

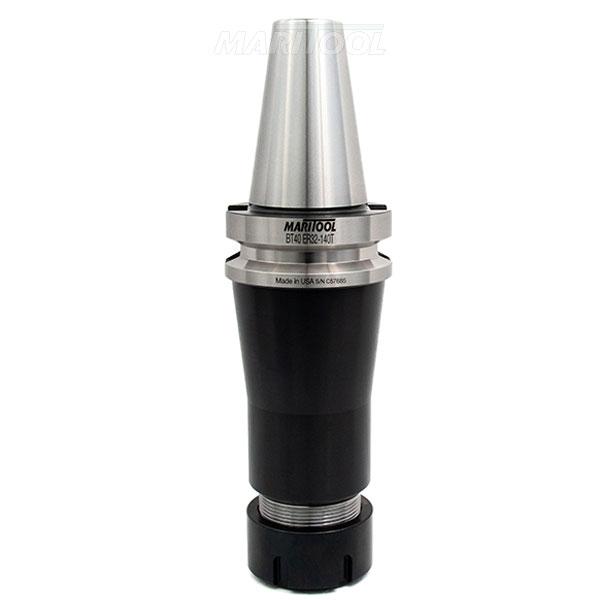

BT40 ER32 140mm TAPERED NOSE COLLET CHUCK TOOL HOLDER $125.25
BT40 ER32 140mm TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge

BT40 ER32 140mm TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge 		BT40 ER32 140mm TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge
BT40 ER32 140mm TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-ER32-140T
Price: $125.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Tool Holder accepts all ER32 collets
  • Threaded for stop screw type 2 (not included)
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Concentricity is less than .0001 at collet face
  • All critical tool holder surfaces precision ground
  • Coolant through capability
  • Gage length is 140mm (5.5 inches)
  • Nose diameter is 1.8 inches
  • Collet nut is included
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-ER32-140T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.875 inches
Collet Size:  ER32
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  140mm Tapered
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
