BT40 ER16 140 TAPERED NOSE COLLET CHUCK TOOL HOLDER $126.25

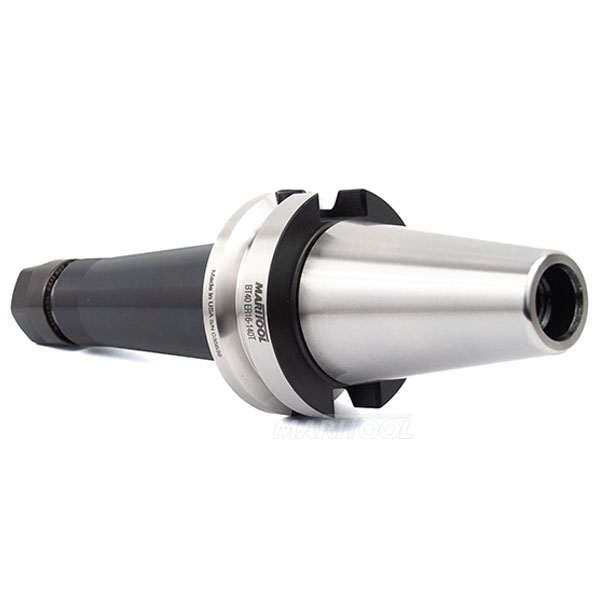

BT40 ER16 140 TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge

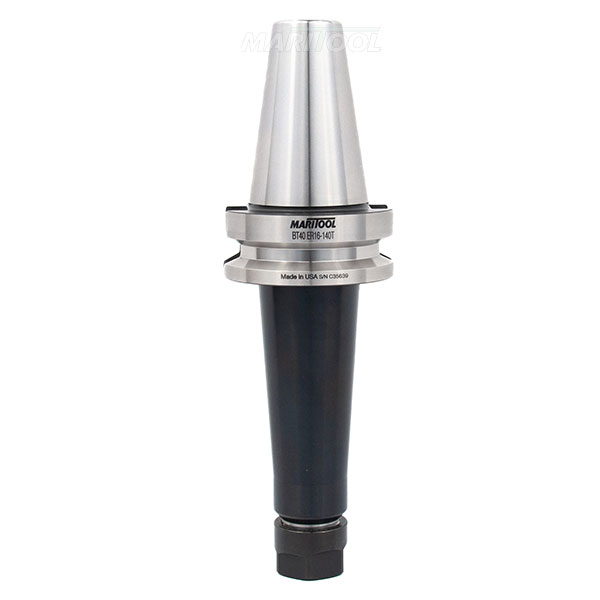

BT40 ER16 140 TAPERED NOSE COLLET CHUCK TOOL HOLDER

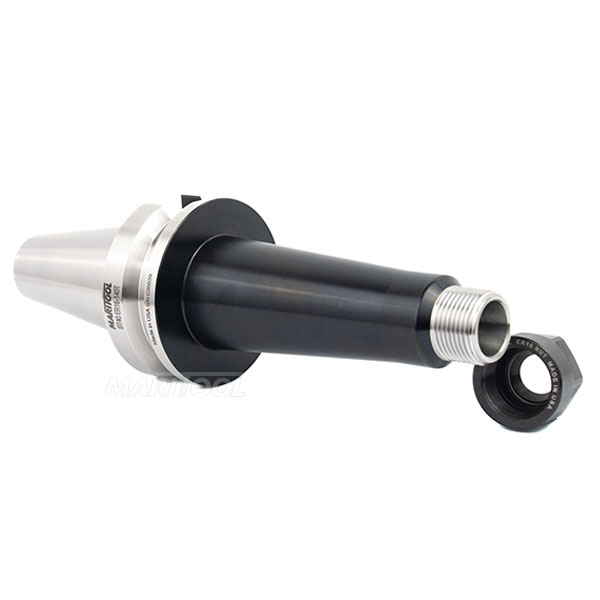

Click to enlarge 		BT40 ER16 140 TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-ER16-140T
Price: $126.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT40-ER16-140T
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Accepts all ER16 collets
  • Threaded for stop screw type 1 (not included)
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Concentricity is less than .0001 at collet face
  • All critical surfaces precision ground
  • Coolant through capability
  • Gage length is 140mm (5.5 inches)
  • Collet nut is included
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-ER16-140T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.4375 inches
Collet Size:  ER 16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  140mm Tapered
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
