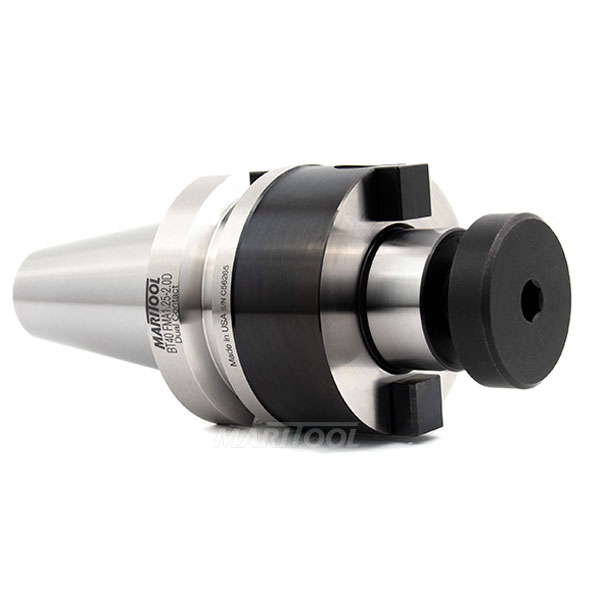

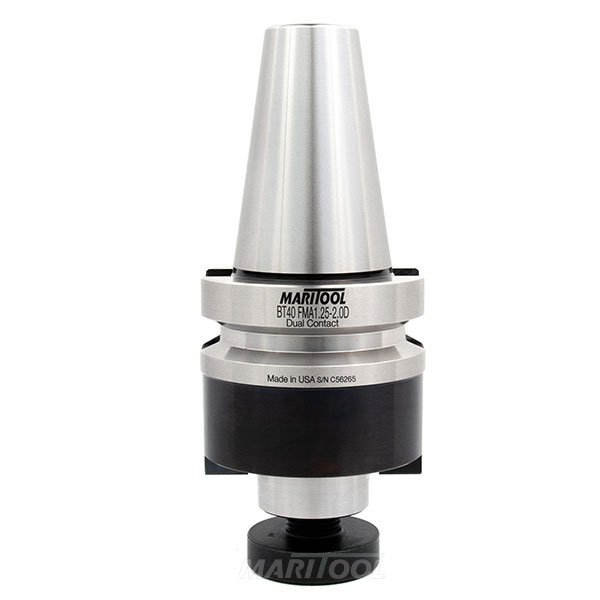

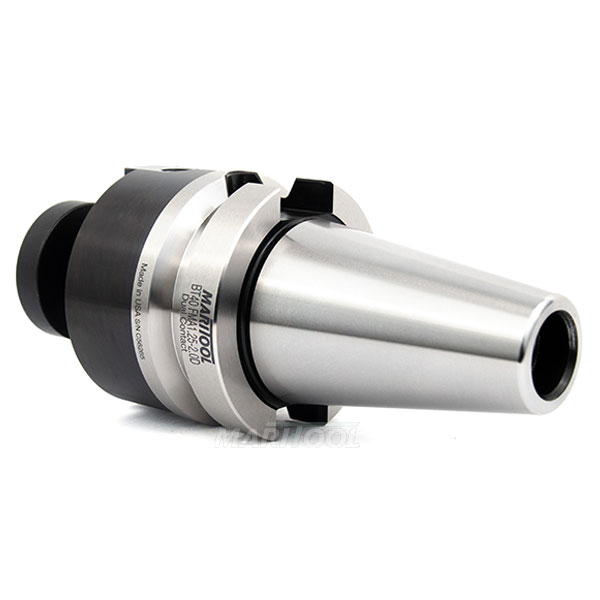

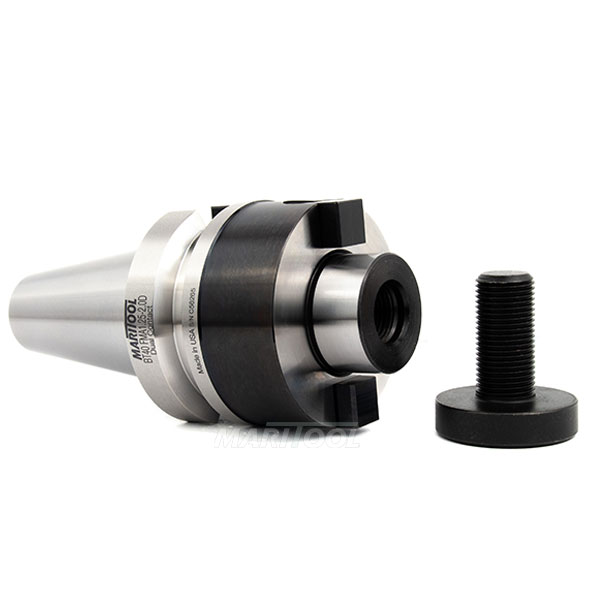

BT40 1.25-2.0 DUAL CONTACT FACE MILL TOOL HOLDER $143.95
BT40 1.25-2.0 DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge

BT40 1.25-2.0 DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge 		BT40 1.25-2.0 DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge
BT40 1.25-2.0 DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge
Item No. BT40-FMA1.25-2.0D
Price: $143.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Works on all BT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Arbor diameter is 1.25 inches
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity is less than .0002 at face and arbor
  • All critical surfaces precision ground
  • Gage length is 2.0 inches
  • Nose diameter is 2.43 inches
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 5/8-18
  • Width of removable drive keys are .490 inches
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-FMA1.25-2.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Arbor Diameter:  1.25
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.00
Material:  Hardened Alloy Steel
Nose Diameter:  2.43
Rear Thread:  M16 X 2.0
Taper:  BT40 Dual Contact
