BT40 Tool Probe Calibrator 8mm x 100mm $271.80

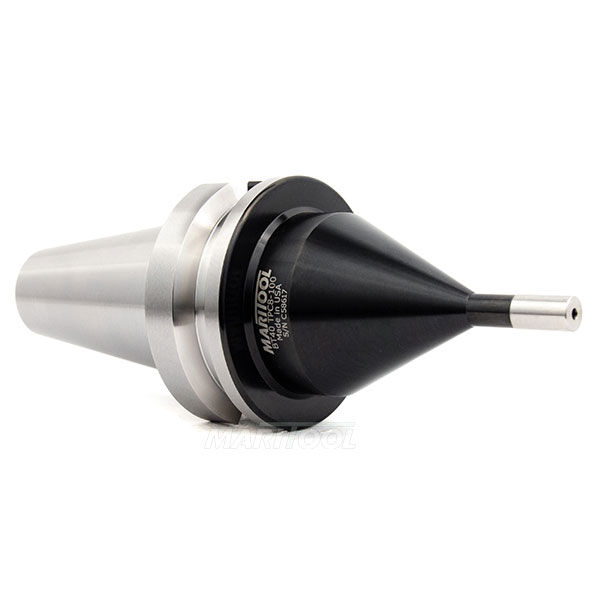

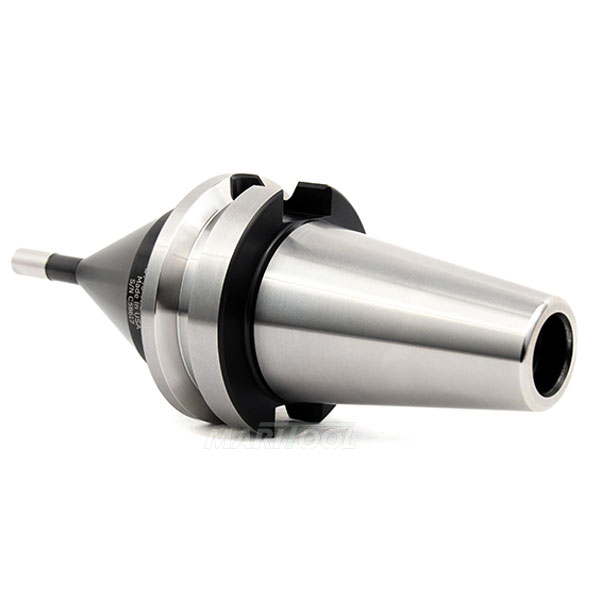

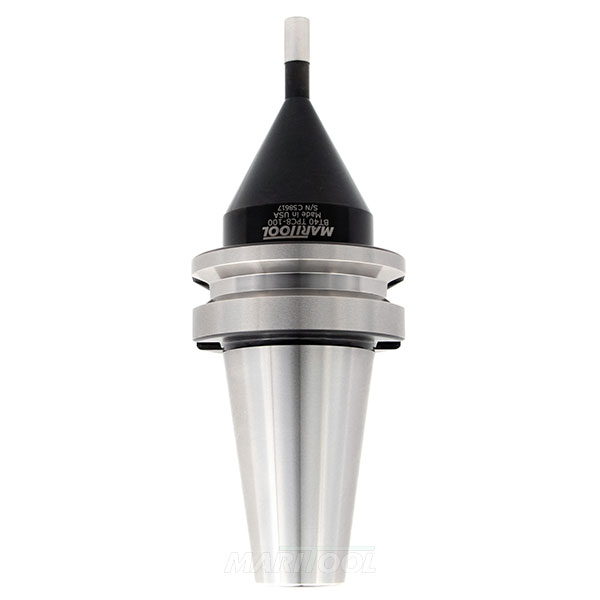

BT40 Tool Probe Calibrator 8mm x 100mm
Click to enlarge

BT40 Tool Probe Calibrator 8mm x 100mm
Click to enlarge 		BT40 Tool Probe Calibrator 8mm x 100mm
Click to enlarge
BT40 Tool Probe Calibrator 8mm x 100mm
Click to enlarge
Item No. BT40-TPC8-100
Price: $271.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT40-TPC8-100
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all BT 40 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 100mm*
  • Probe diameter is 8mm*
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-TPC8-100

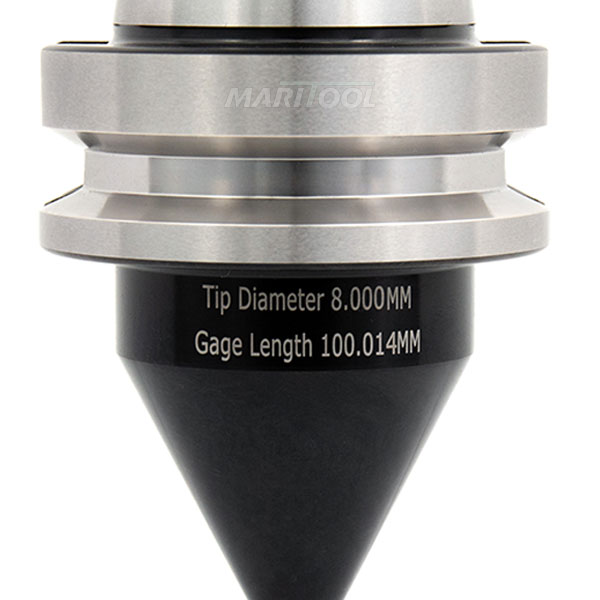

*All calibrated measurements are laser marked on each tool
