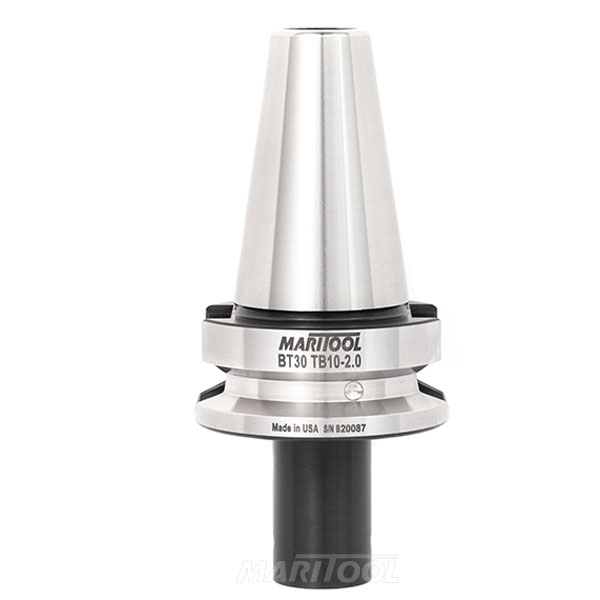

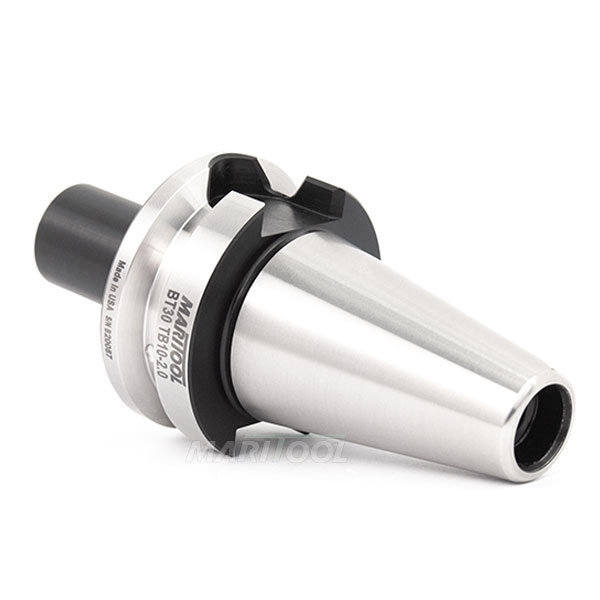

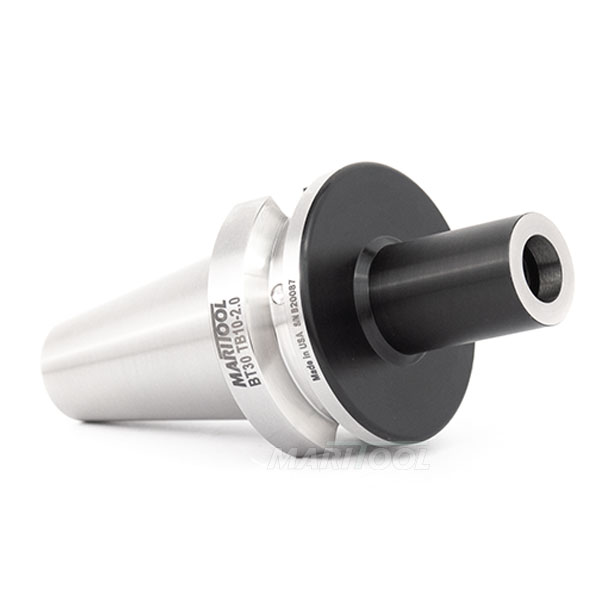

BT30 M10 Threaded Body Modular Tool Holder 2.0" $126.40
BT30 M10 Threaded Body Modular Tool Holder 2.0"
Click to enlarge

BT30 M10 Threaded Body Modular Tool Holder 2.0"
Click to enlarge 		BT30 M10 Threaded Body Modular Tool Holder 2.0"
Click to enlarge
BT30 M10 Threaded Body Modular Tool Holder 2.0"
Click to enlarge
Item No. BT30-TB10-2.0
Price: $126.40
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-TB10-2.0
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • This tool holder accepts all 10mm threaded screw-in indexable cutters
  • This tool holder is for indexable modular cutters
  • Cutters are often called Modular tooling, Screw in, or Threaded Shank Cutters
  • Click here for list of cutters and terminology used by different manufacturers
  • Ground pilot diameter is 10.5mm X 7mm deep, internal thread is M10 X 1.5 X 22mm deep
  • Nose diameter is .700 Inches
  • Tool holder works on all BT30 machines
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 2.0 inches
  • Concentricity is less than .0001 at pilot bore
  • Coolant thru capability
  • Rear thread for pull stud is M12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-TB10-2.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Pilot Bore
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.0
Material:  Hardened Alloy Steel
Modular Interface Size:  M10
Rear Thread:  M12 x 1.75
Taper:  BT30
