BT30-SSA13-1.5 Slitting Saw Arbor Holder $159.95

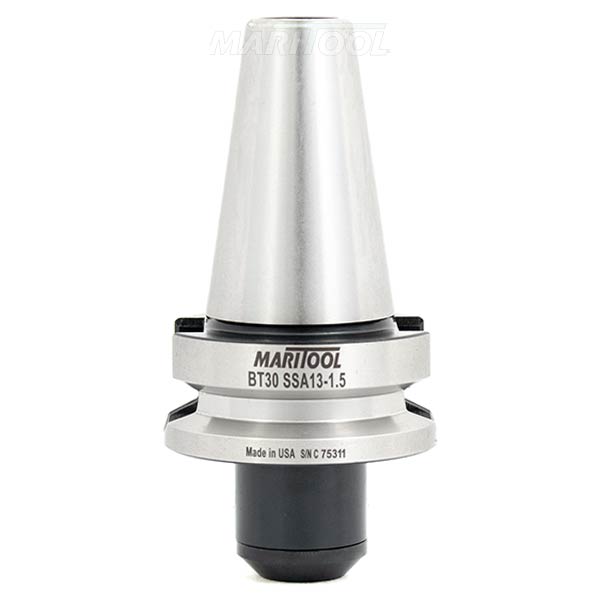

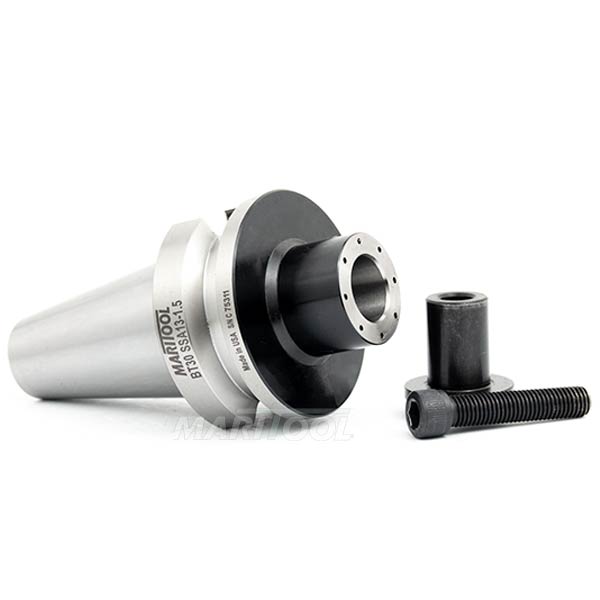

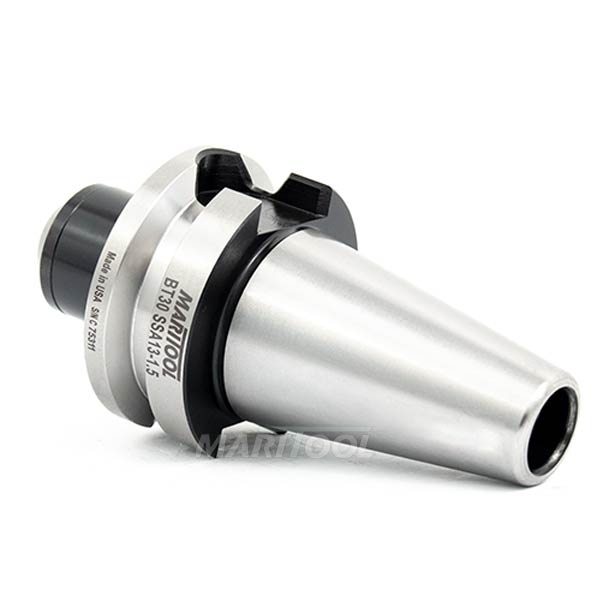

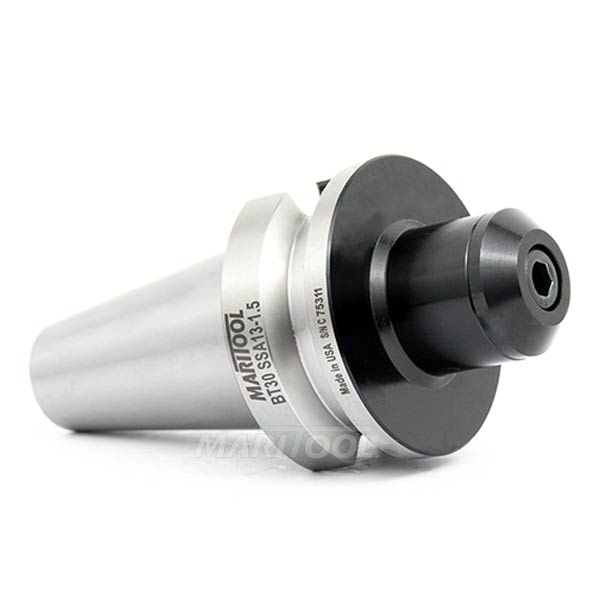

BT30-SSA13-1.5 Slitting Saw Arbor Holder
Click to enlarge

BT30-SSA13-1.5 Slitting Saw Arbor Holder
Click to enlarge 		BT30-SSA13-1.5 Slitting Saw Arbor Holder
Click to enlarge
BT30-SSA13-1.5 Slitting Saw Arbor Holder
Click to enlarge
Item No. BT30-SSA13-1.5
Price: $159.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Keyless slitting saw holder, for saws with 13mm arbor hole
  • Works on all BT30 Machines
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @20,000 rpms
  • Gage length is 1.5 inches
  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 1/4-28 X 1-1/4 long
  • Saw cap is 1/4 thick and 13mm diameter boss is .700 long
  • Nose dia and saw cap is .875 Inches diameter
  • Replacement cap is available SSA13mm-cap
  • Rear thread for pull stud is M12 x 1.75
  • MariTool Part# is BT30-SSA13-1.5
Product Specifications
Arbor Diameter:  13mm
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  1.5
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30
Weight:  1.0
