BT30 1/4 SHRINK FIT TOOL HOLDER .250-3.75 $180.55

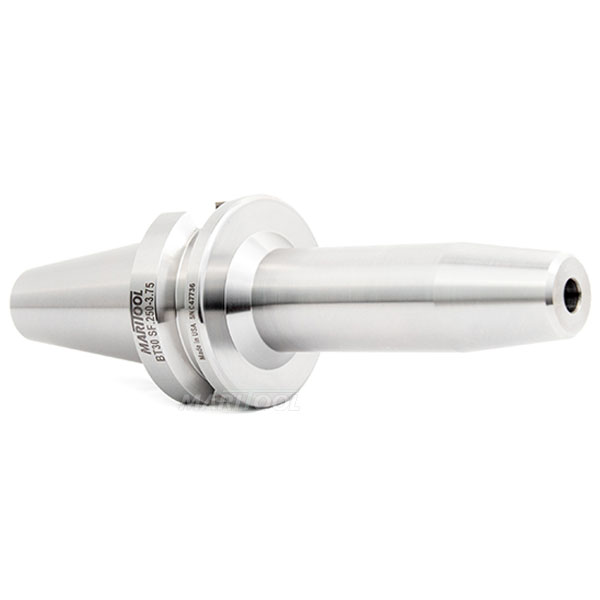

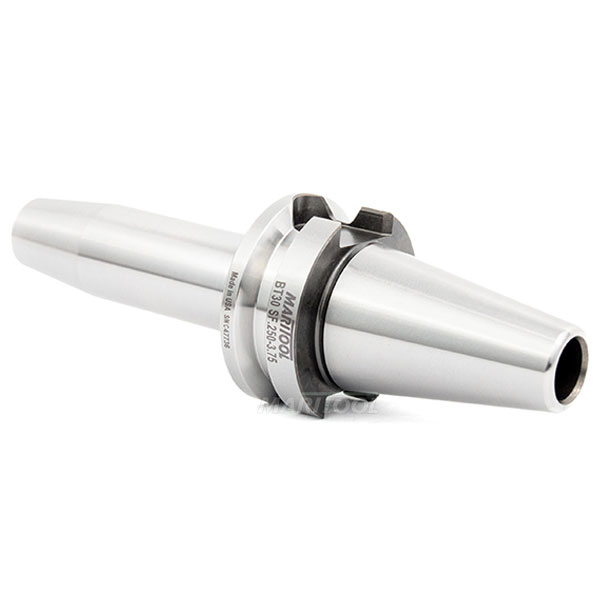

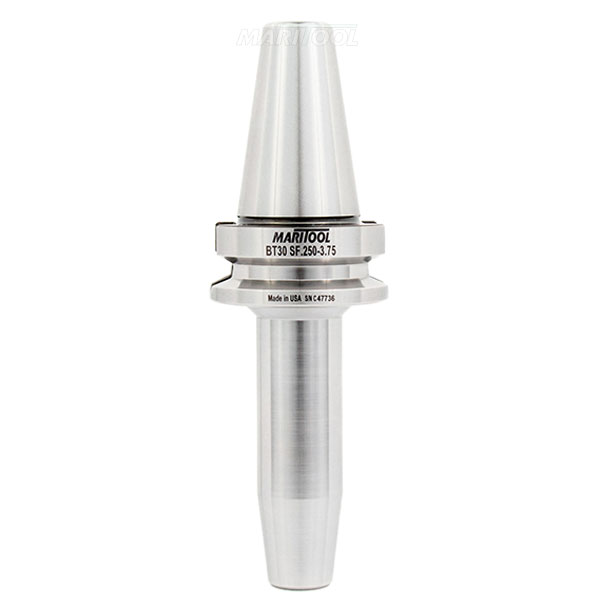

BT30 1/4 SHRINK FIT TOOL HOLDER .250-3.75
Click to enlarge

BT30 1/4 SHRINK FIT TOOL HOLDER .250-3.75
Click to enlarge 		BT30 1/4 SHRINK FIT TOOL HOLDER .250-3.75
Click to enlarge
Item No. BT30-SF.250-3.75
Price: $180.55
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-SF.250-3.75
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all BT30 Machines
  • This Shrink Fit Tool Holder accepts all .250 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.75 inches
  • Nose diameter is .875 Inches
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0002
  • Rear thread for pull stud is M12 x 1.75
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is BT30-SF.250-3.75
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0002
Gage Length:  3.75
Material:  Hardened H-13 Alloy Steel
Rear Thread:  M12 x 1.75
Shank Size:  .250
Taper:  BT30
