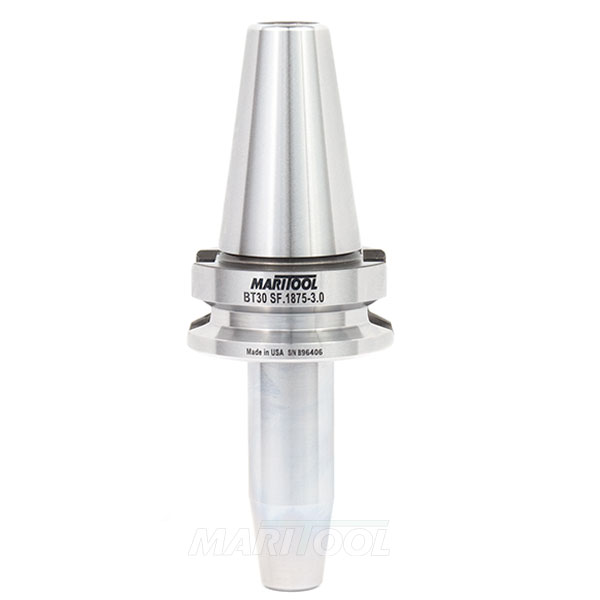

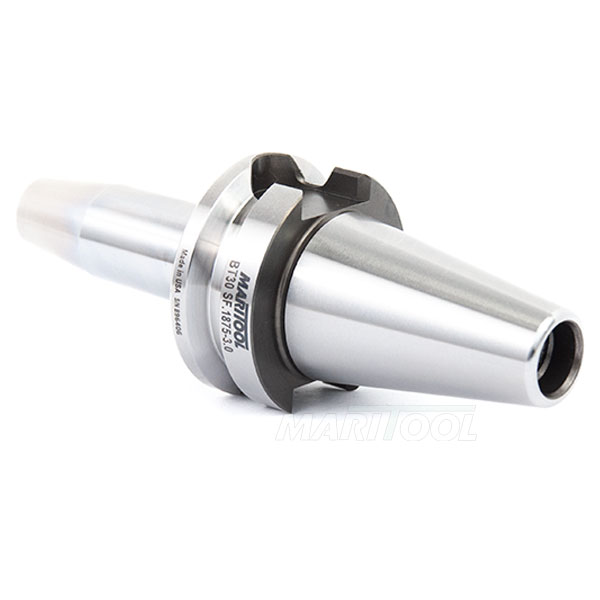

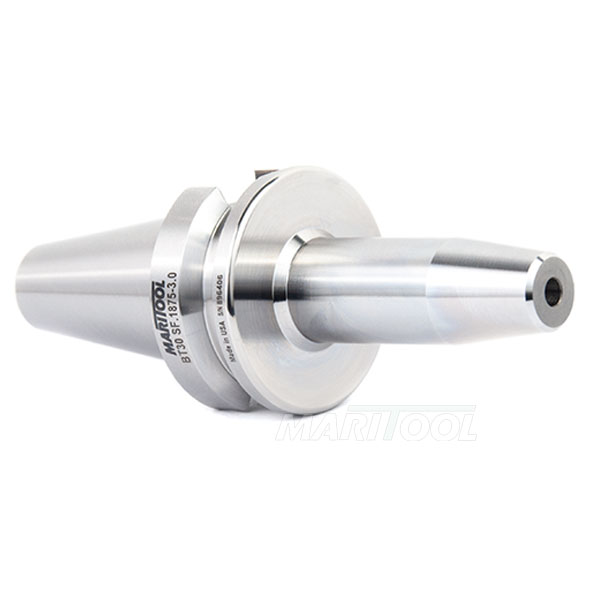

BT30 3/16 SHRINK FIT TOOL HOLDER .1875-3.0 $177.30
BT30 3/16 SHRINK FIT TOOL HOLDER .1875-3.0
Click to enlarge

BT30 3/16 SHRINK FIT TOOL HOLDER .1875-3.0
Click to enlarge 		BT30 3/16 SHRINK FIT TOOL HOLDER .1875-3.0
Click to enlarge
Item No. BT30-SF.1875-3.0
Price: $177.30
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for BT30-SF.1875-3.0
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all BT30 Machines
  • This Shrink Fit Tool Holder accepts all .1875 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.0 inches
  • Nose diameter is .760 Inches
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0002
  • Rear thread for pull stud is M12 x 1.75
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is BT30-SF.1875-3.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0002
Gage Length:  3.0
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  .760
Rear Thread:  M12 x 1.75
Shank Size:  .1875
Taper:  BT30
