BT30 .750-2.5 FACE MILL TOOL HOLDER $114.55

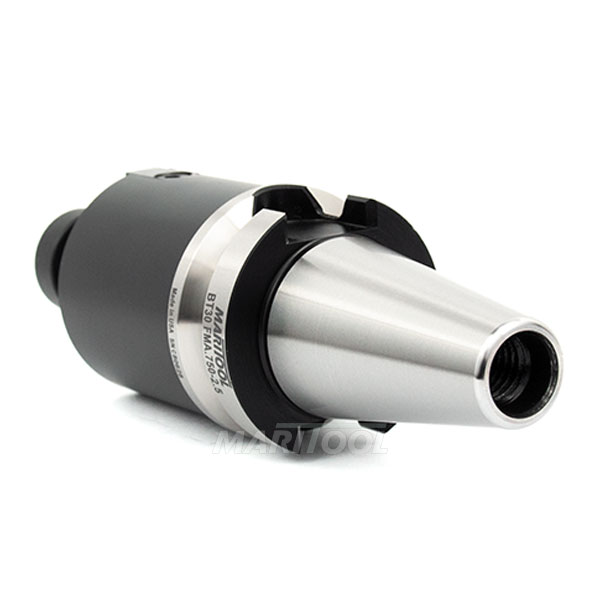

BT30 .750-2.5 FACE MILL TOOL HOLDER
Click to enlarge

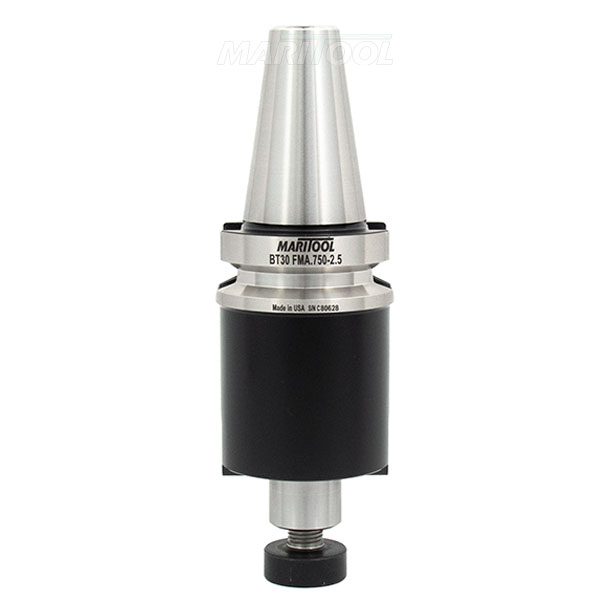

BT30 .750-2.5 FACE MILL TOOL HOLDER
Click to enlarge 		BT30 .750-2.5 FACE MILL TOOL HOLDER
Click to enlarge

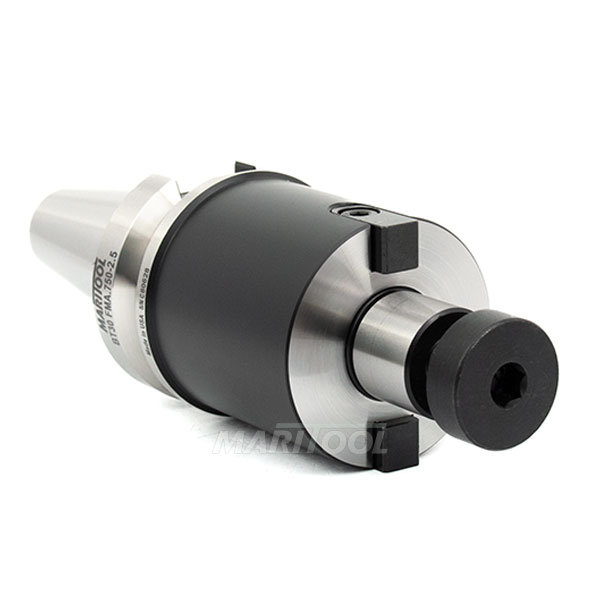

BT30 .750-2.5 FACE MILL TOOL HOLDER
Click to enlarge
Item No. BT30-FMA.750-2.5
Price: $114.55
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-FMA.750-2.5
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Arbor diameter is .750 inches
  • Works on all BT30 machines
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 2.5 inches
  • Concentricity is less than .0002 at face and arbor
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 3/8-24

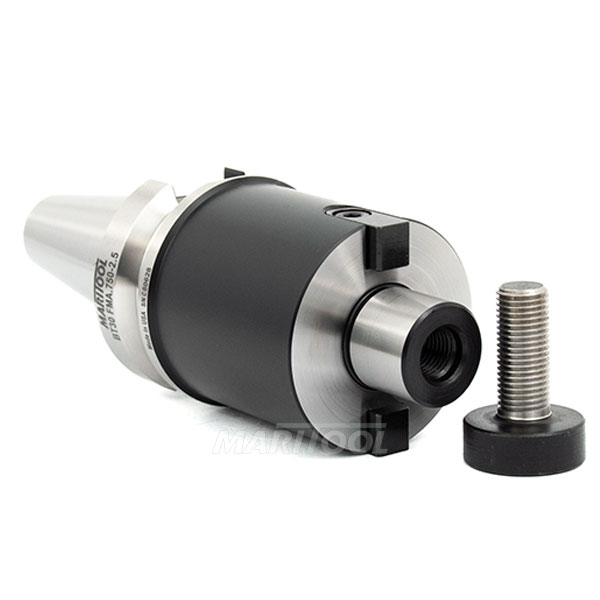

  • Includes large head 3/8-24 lock screw pictured and a standard 3/8-24 x 1.0 SHCS
  • Width of removable drive keys are .312 inches
  • Rear thread for pull stud is m12 x 1.75
  • MariTool Part# is BT30-FMA.750-2.5
Product Specifications
Arbor Diameter:  .750
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.5
Material:  Hardened Alloy Steel
Nose Diameter:  1.73
Rear Thread:  M12 x 1.75
Taper:  BT30
Weight:  2.0
