BT30 .500-1.5M SLIM NOSE FACE MILL TOOL HOLDER $115.95

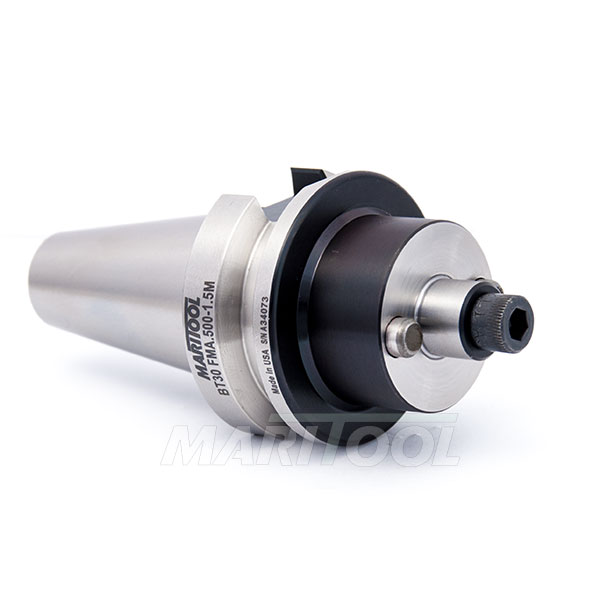

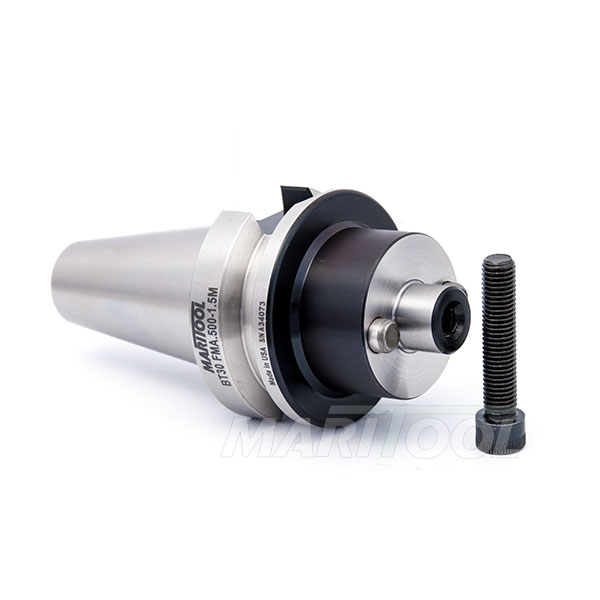

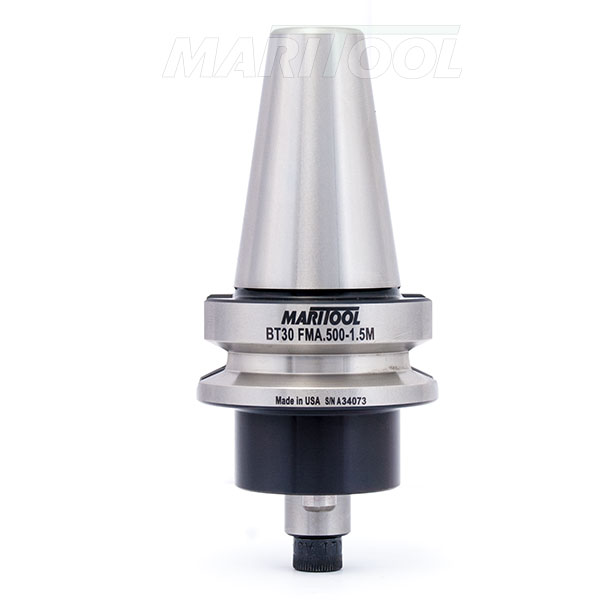

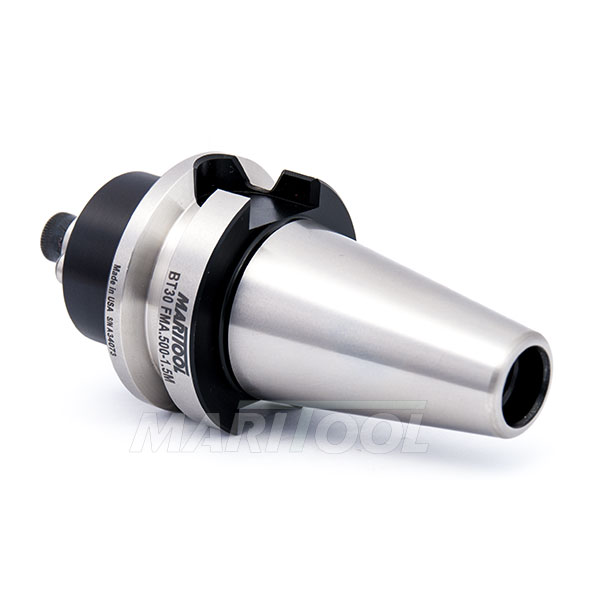

BT30 .500-1.5M SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge

BT30 .500-1.5M SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge 		BT30 .500-1.5M SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge
BT30 .500-1.5M SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge
Item No. BT30-FMA.500-1.5M
Price: $115.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-FMA.500-1.5M
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Arbor diameter is .500 inches
  • Works on all BT 30 machines
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is 1.5 inches
  • Nose diameter is 1.24 inches
  • Concentricity is less than .0002 at face and arbor
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 1/4-28
  • Size of drive pins are .250 inches
  • Rear thread for pull stud is m12 x 1.75
  • MariTool Part# is BT30-FMA.500-1.5M
Product Specifications
Arbor Diameter:  .500
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  1.5
Material:  Hardened Alloy Steel
Nose Diameter:  1.24
Rear Thread:  M12 x 1.75
Taper:  BT30
