BT30 ER11 110mm Tapered Nose Collet Chuck Tool Holder $127.65

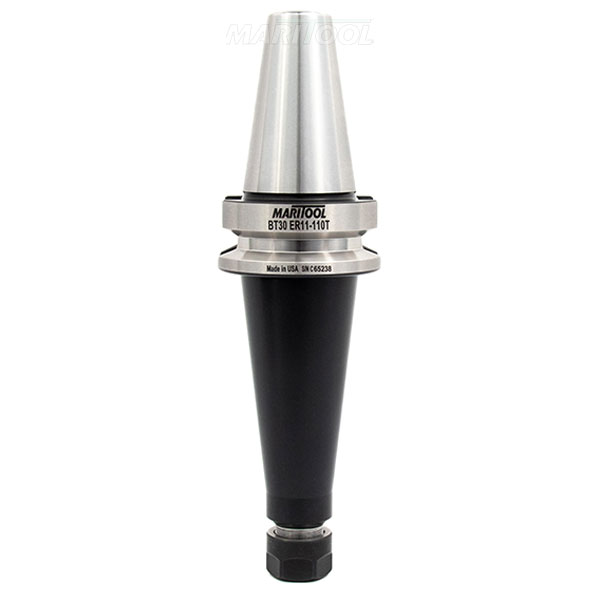

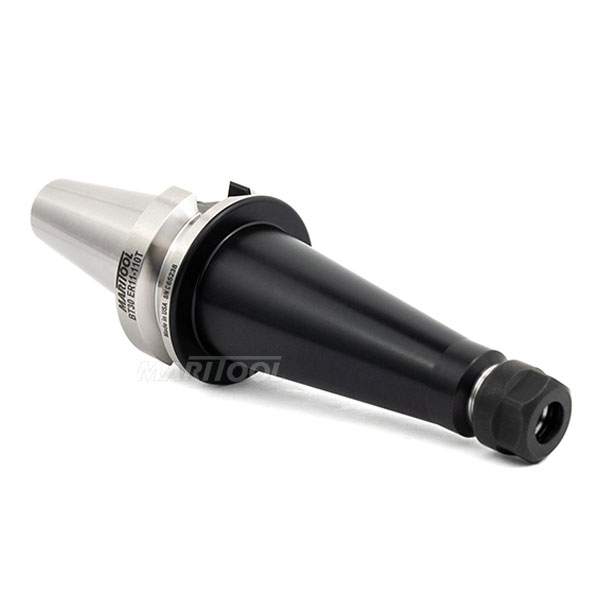

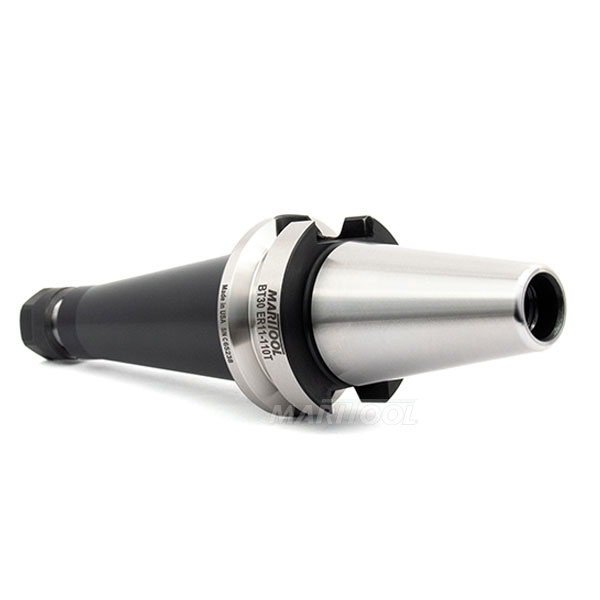

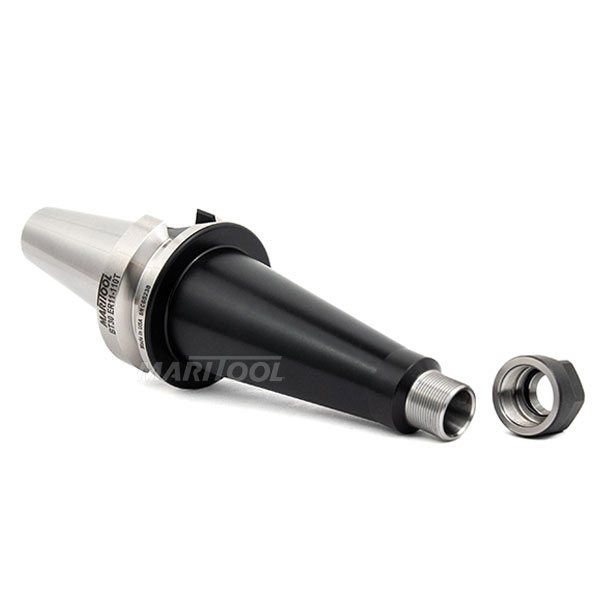

BT30 ER11 110mm Tapered Nose Collet Chuck Tool Holder
Click to enlarge

BT30 ER11 110mm Tapered Nose Collet Chuck Tool Holder
Click to enlarge 		BT30 ER11 110mm Tapered Nose Collet Chuck Tool Holder
Click to enlarge
BT30 ER11 110mm Tapered Nose Collet Chuck Tool Holder
Click to enlarge
Item No. BT30-ER11-110T
Price: $127.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-ER11-110T
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all BT 30 machines
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 110mm (4.33 inches)
  • Nose diameter is .755 inches
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-ER11-110T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Size:  ER 11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  110mm
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30
