BT30 ER32 80mm Collet Chuck Tool Holder $122.70

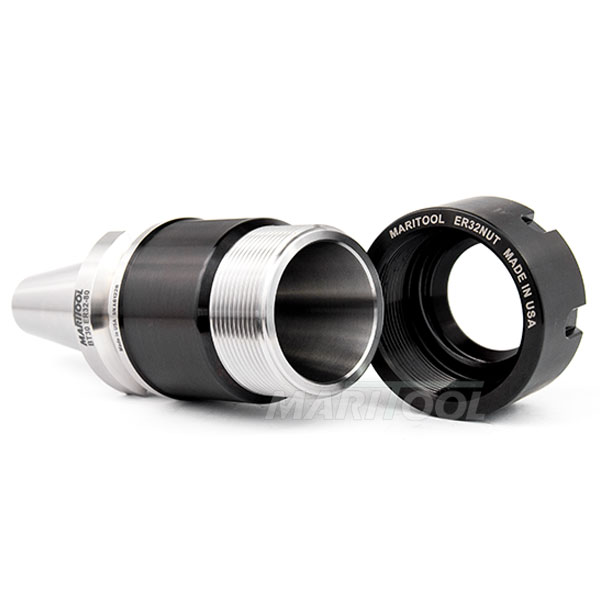

BT30 ER32 80mm Collet Chuck Tool Holder
Click to enlarge

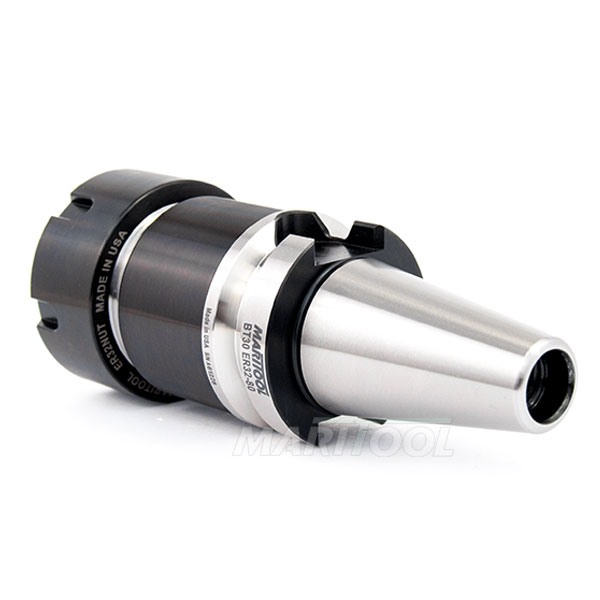

BT30 ER32 80mm Collet Chuck Tool Holder

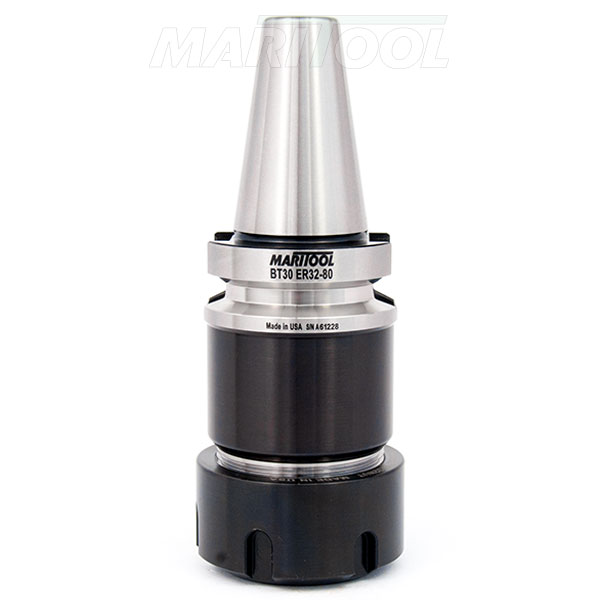

Click to enlarge 		BT30 ER32 80mm Collet Chuck Tool Holder
Click to enlarge

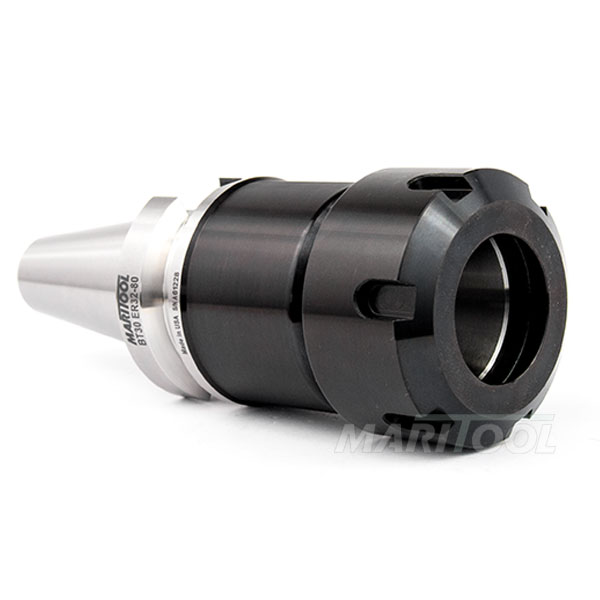

BT30 ER32 80mm Collet Chuck Tool Holder
Click to enlarge
Item No. BT30-ER32-80
Price: $122.70
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-ER32-80
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER32 collets
  • Works on all BT 30 machines
  • Threaded for stop screw type 2 (not included)
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 80mm (3.1 inches)
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-ER32-80
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.875 inches
Collet Size:  ER 32
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  80mm
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30
