- This tool holder accepts all 10mm threaded screw-in indexable cutters
- Cutters are often called Modular tooling, Screw in, or Threaded Shank Cutters
- Click here for list of cutters and terminology used by different manufacturers
- Ground pilot diameter is 10.5mm X 7mm deep, internal thread is M10 X 1.5 X 22mm deep
- Nose diameter is .705 Inches
- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- All critical tool holder surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Balanced to G2.5 at 20,000 rpms
- Gage length is 1.0 inches
- Concentricity is less than .0001 at pilot bore
- Coolant thru capability
- Rear thread for pull stud is M12 x 1.75
- View BT30 Pull Studs

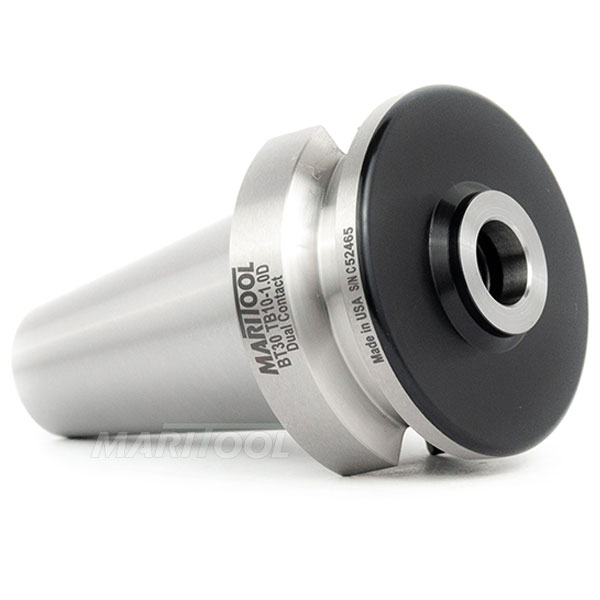

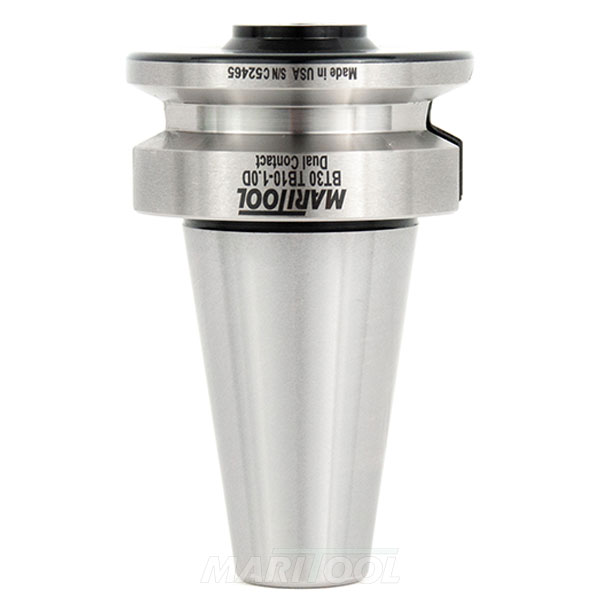

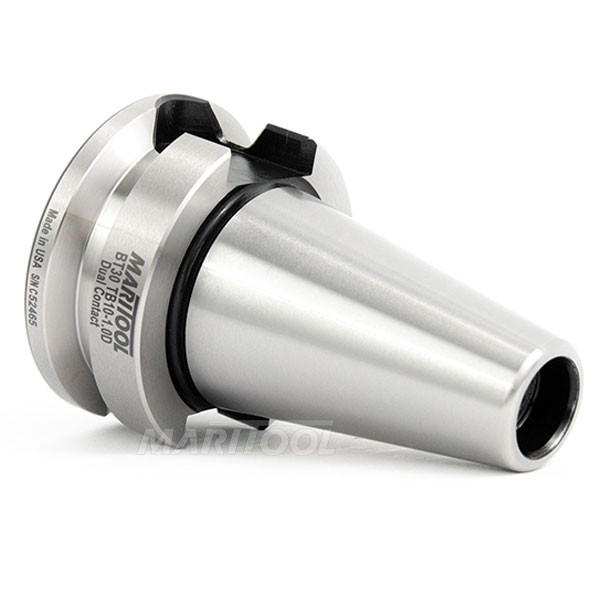

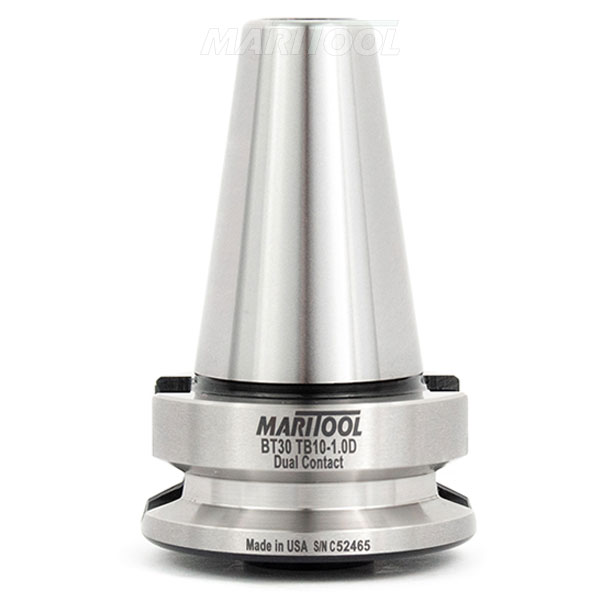

- MariTool Part# is BT30-TB10-1.0D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
