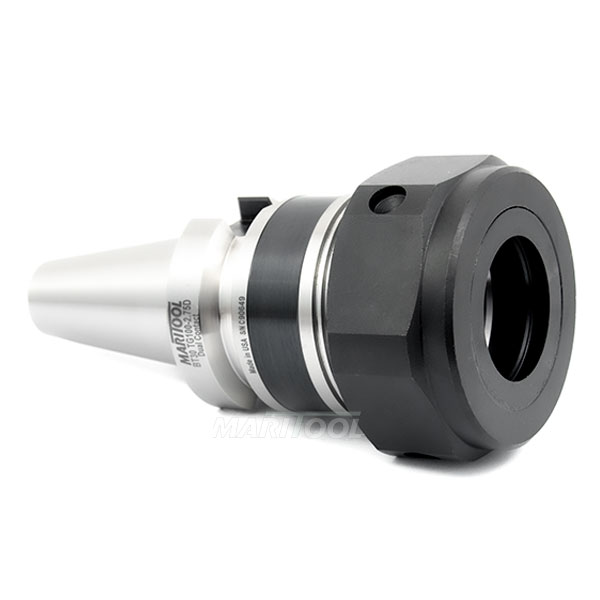

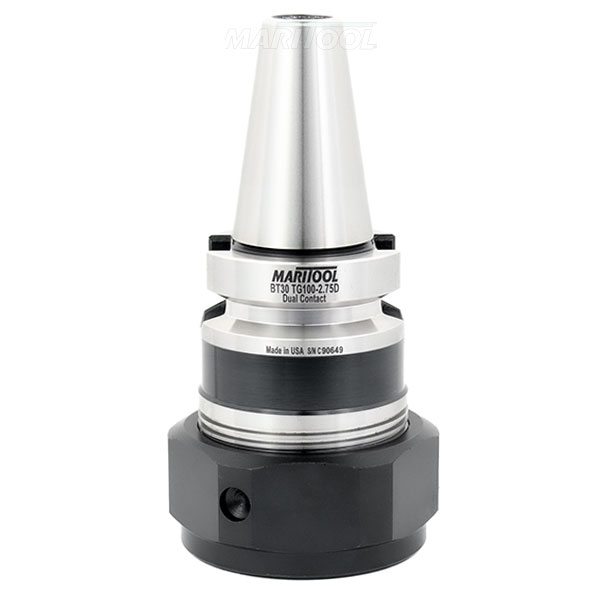

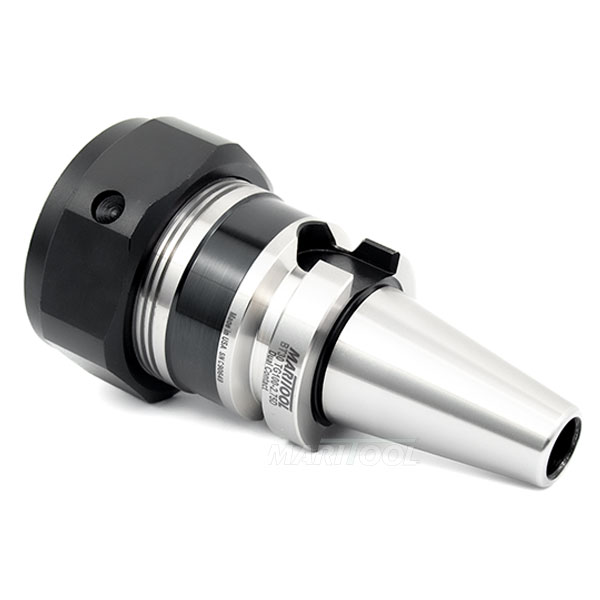

- Collet Chuck accepts all TG100 collets
- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- Threaded for stop screw type 2 (not included)
- All critical surfaces precision ground
- Made from hardened alloy steel
- Balanced to G2.5 at 20,000 rpms
- Gage length is 2.75 inches

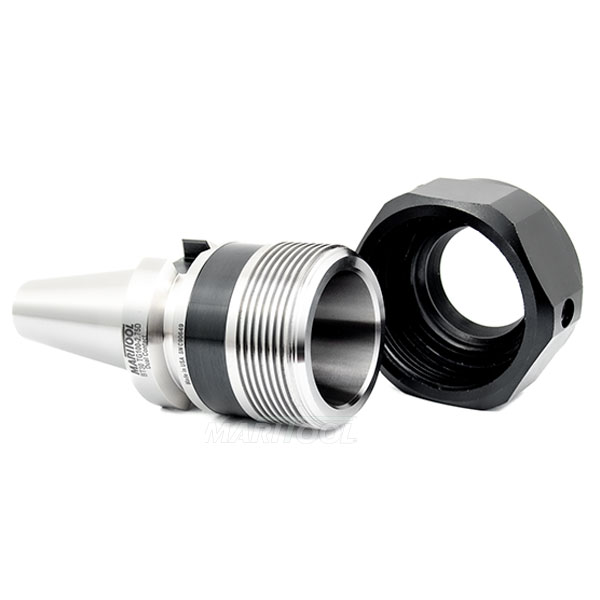

- Collet nut is included
- Coolant thru capability
- Concentricity is less than .0001 at collet face
- Rear thread for pull stud is M12 x 1.75
- MariTool Part# is BT30-TG100-2.75D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
