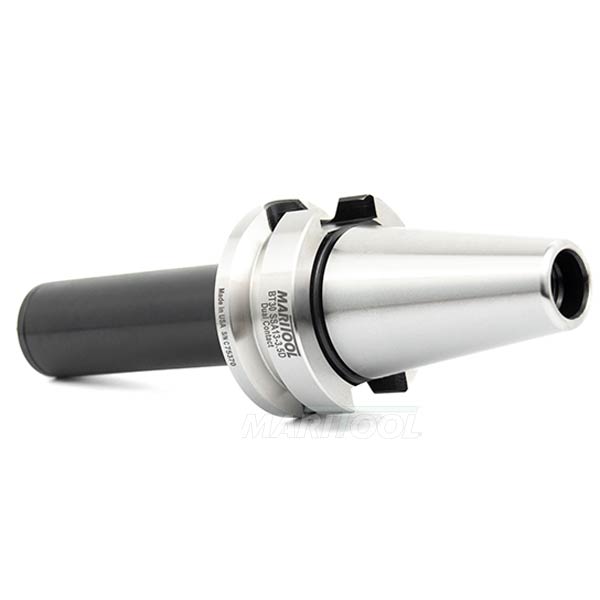

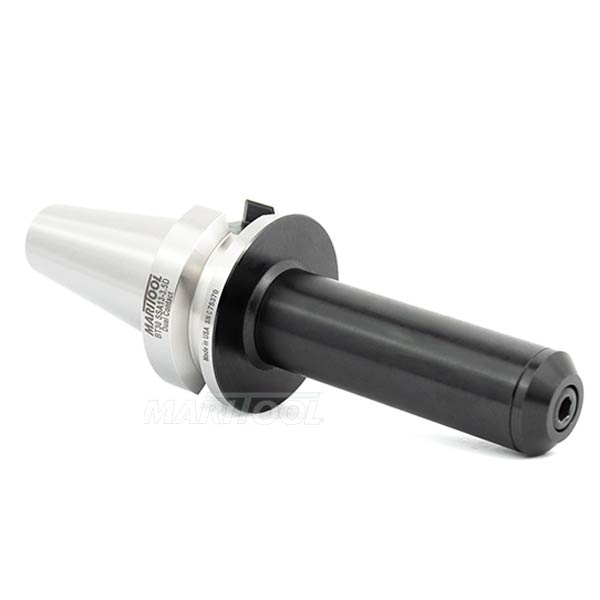

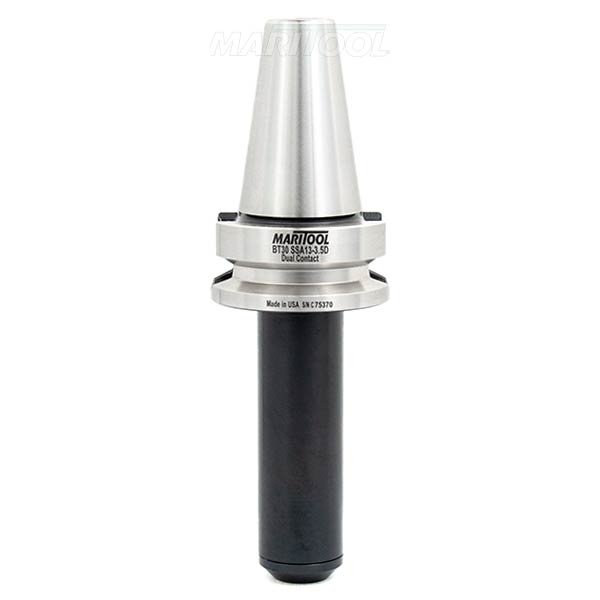

BT30-SSA13-3.5 Dual Contact Slitting Saw Arbor Holder

Item No.	BT30-SSA13-3.5D
Price:	$203.70
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Keyless slitting saw holder, for saws with 13mm arbor hole
Works on all BT30 machines with Dual Contact Spindles
Compatible with BIG-PLUS® spindles
All critical surfaces precision ground
Made from hardened alloy steel
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 @20,000 rpms
Gage length is 3.5 inches

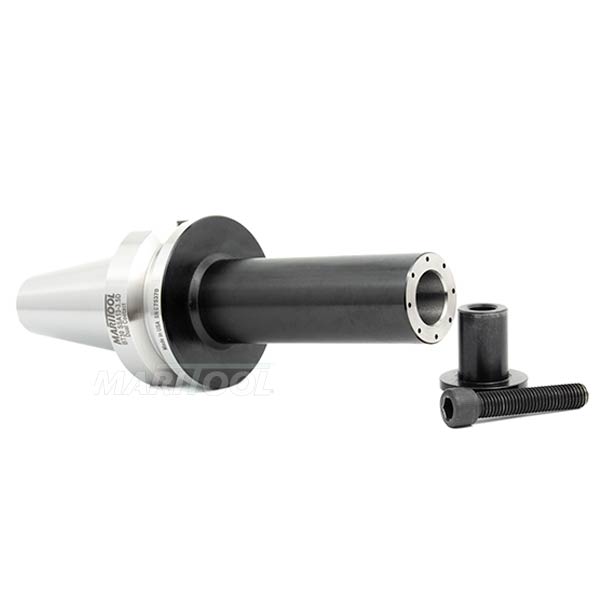

End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
Screw for cap is 1/4-28 X 1-1/4 long
Saw cap is 1/4 thick and 13mm diameter boss is .700 long
Nose dia and saw cap is .875 Inches diameter
Replacement cap is available SSA13mm-cap
Rear thread for pull stud is M12 x 1.75
MariTool Part# is BT30-SSA13-3.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Arbor Diameter:	13mm
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Coolant Thru:	No
Finish:	Black Oxide
Gage Length:	3.5
Material:	Hardened Alloy Steel
Rear Thread:	M12 x 1.75
Taper:	BT30 Dual Contact
Weight:	1.5
