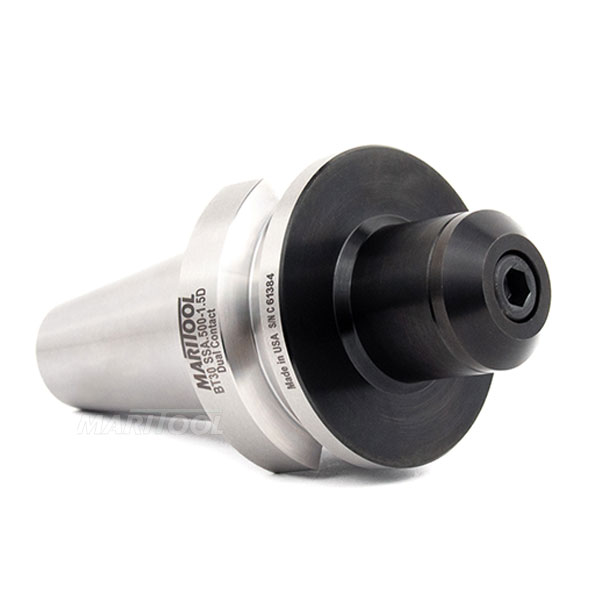

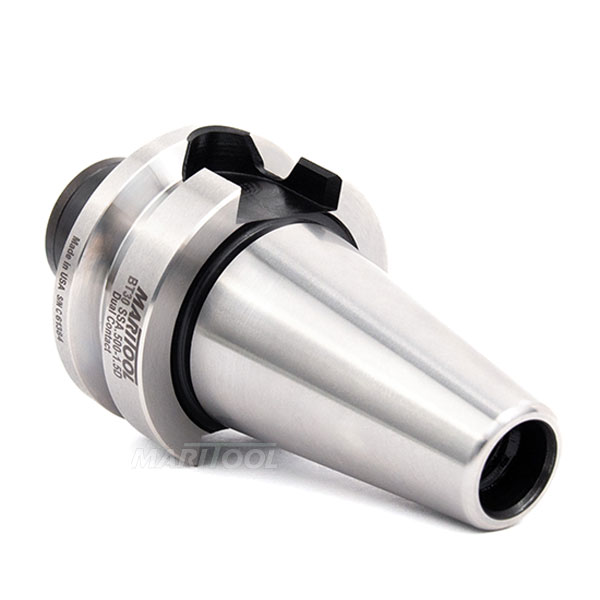

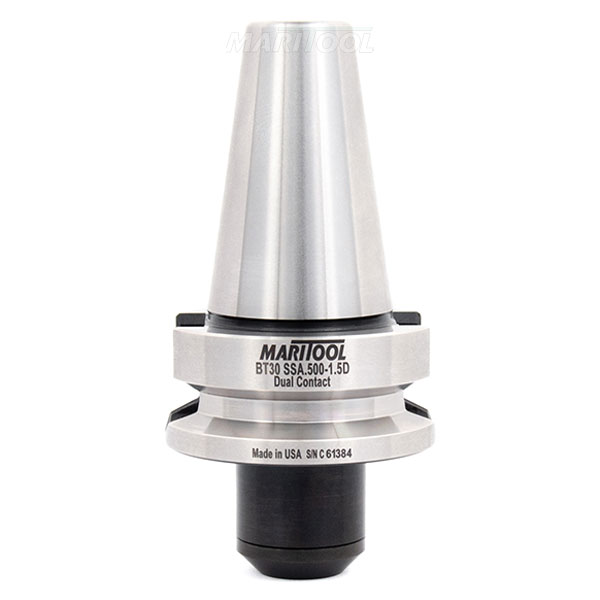

BT30-SSA.500-1.5 Dual Contact Slitting Saw Arbor Holder

Item No.	BT30-SSA.500-1.5D
Price:	$195.75
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Keyless slitting saw holder, for saws with .500" arbor hole
Works on all BT30 machines with Dual Contact Spindles
Compatible with BIG-PLUS® spindles
All critical surfaces precision ground
Made from hardened alloy steel
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 @20,000 rpms
End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued

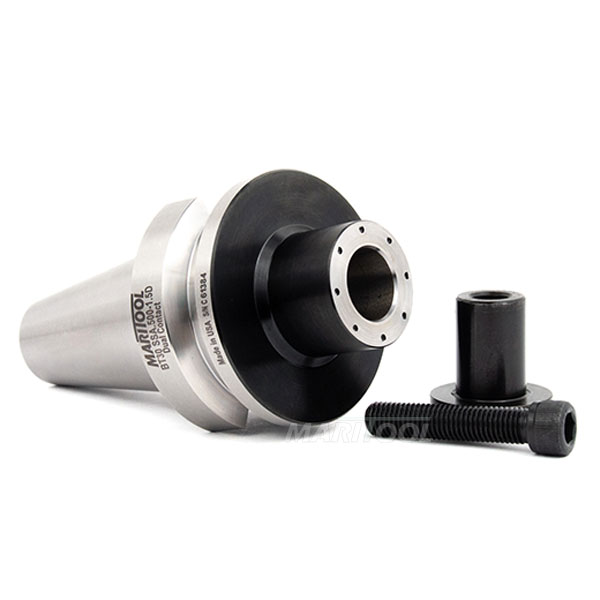

Screw for cap is 1/4-28 X 1-1/4 long
Saw cap is 1/4 thick and .4999 diameter boss is .700 long
Nose dia and saw cap is .875 Inches diameter
Replacement cap is available SSA.500-cap
MariTool Part# is BT30-SSA.500-1.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Arbor Diameter:	.500
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Finish:	Black Oxide
Gage Length:	1.5
Material:	Hardened Alloy Steel
Rear Thread:	M12 x 1.75
Taper:	BT30 Dual Contact
