BT30 .500 DUAL CONTACT FACE MILL TOOL HOLDER .500-2.5 $156.00

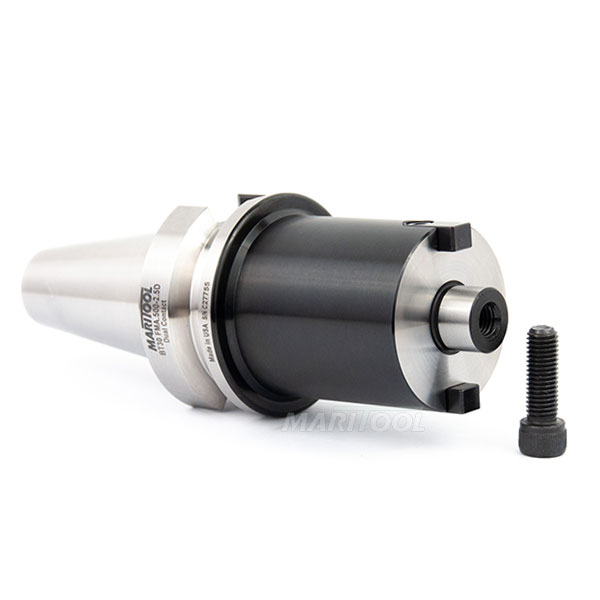

BT30 .500 DUAL CONTACT FACE MILL TOOL HOLDER .500-2.5
Click to enlarge

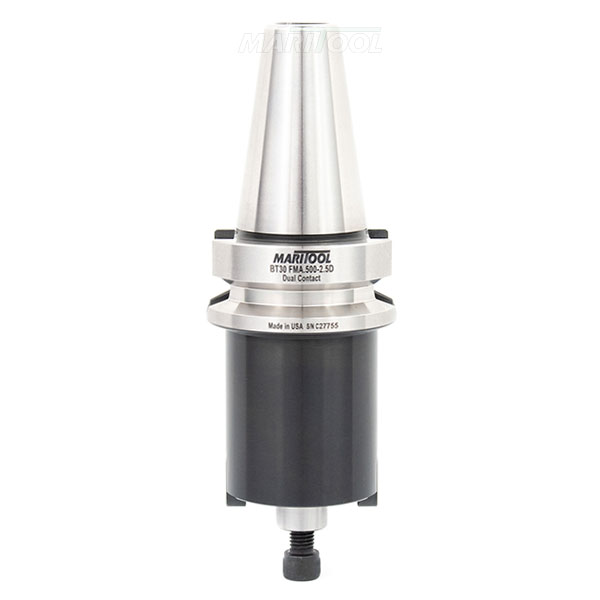

BT30 .500 DUAL CONTACT FACE MILL TOOL HOLDER .500-2.5

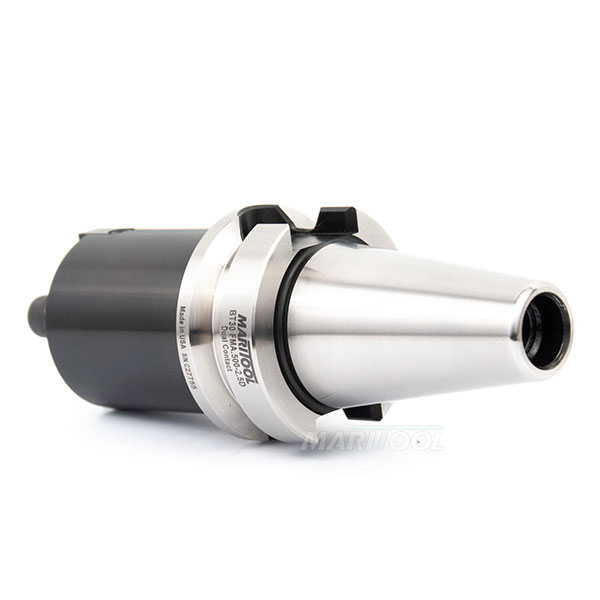

Click to enlarge 		BT30 .500 DUAL CONTACT FACE MILL TOOL HOLDER .500-2.5
Click to enlarge
Item No. BT30-FMA.500-2.5D
Price: $156.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-FMA.500-2.5D
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Arbor diameter is .500 inches
  • Works on all BT30 machines with Dual Contact Spindles
  • Compatible with BIG-PLUS® spindles
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is 2.5 inches
  • Concentricity is less than .0002 at face and arbor
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 1/4-28
  • Size of drive pins are .250 inches
  • Rear thread for pull stud is m12 x 1.75
  • MariTool Part# is BT30-FMA.500-2.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Arbor Diameter:  .500
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.5
Material:  Hardened Alloy Steel
Nose Diameter:  1.45
Rear Thread:  M12 x 1.75
Taper:  BT30 DUAL CONTACT
