- Torque Ratings for SK16 Collet Nuts can be found here
- Collet Chuck accepts all SK16 collets
- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- Threaded for stop screw type 2 (not included)
- All critical tool holder surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Tool Holder is balanced to G2.5 at 20,000 rpms
- Gage length is 60mm (2.3 inches)
- Concentricity is less than .0001 at collet face

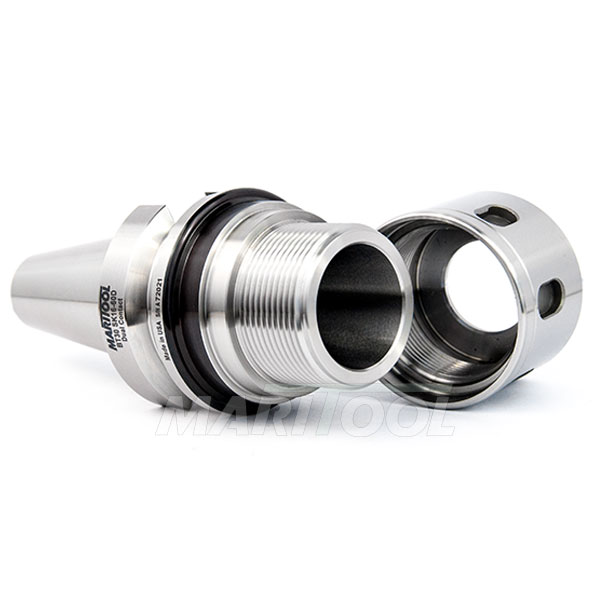

- Collet nut is included
- Uses wrench part# ER25-Bwrench (not included)
- Coolant thru capability
- Rear thread for pull stud is m12 x 1.75

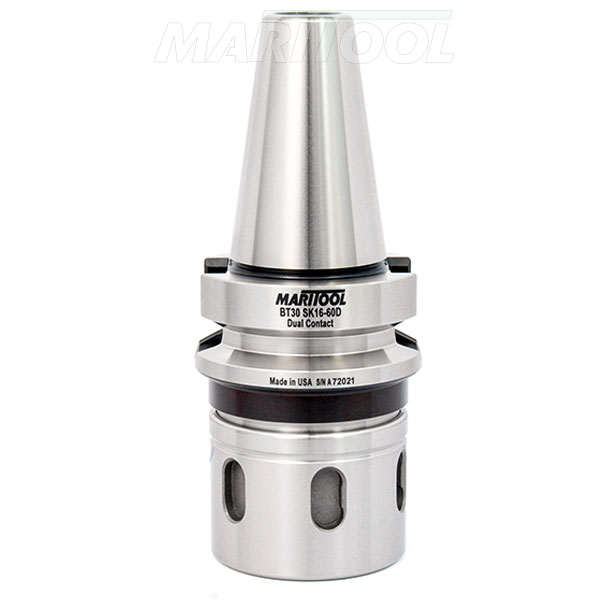

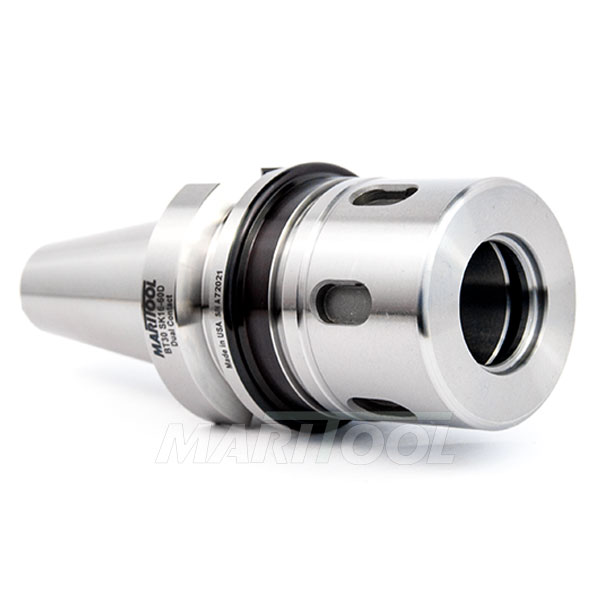

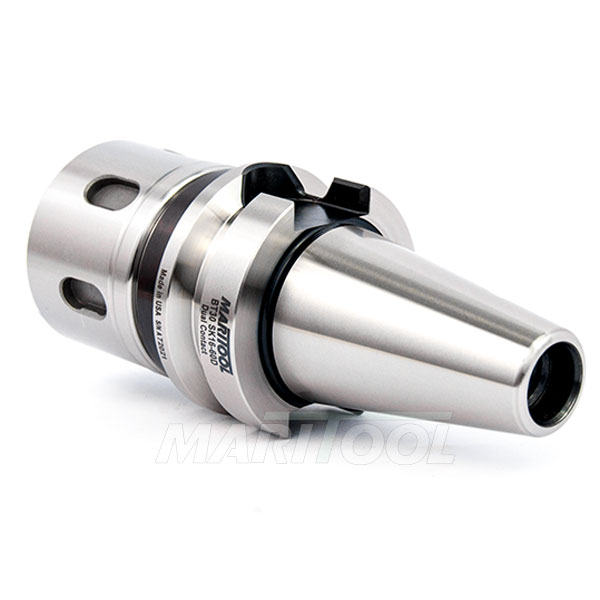

- MariTool Part# is BT30-SK16-60D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
