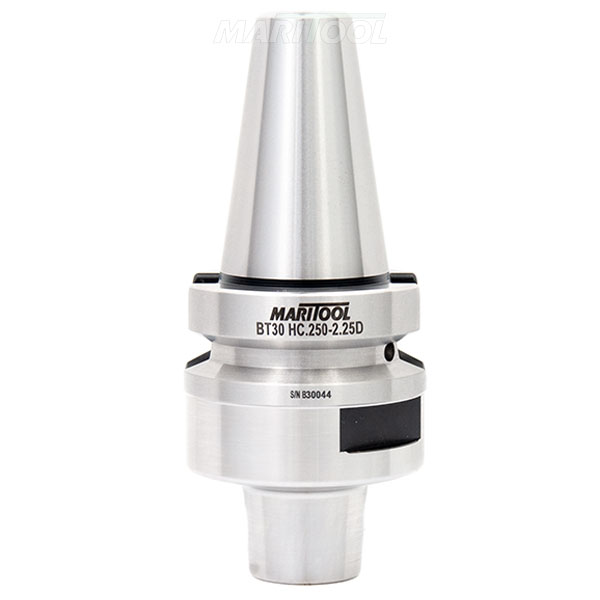

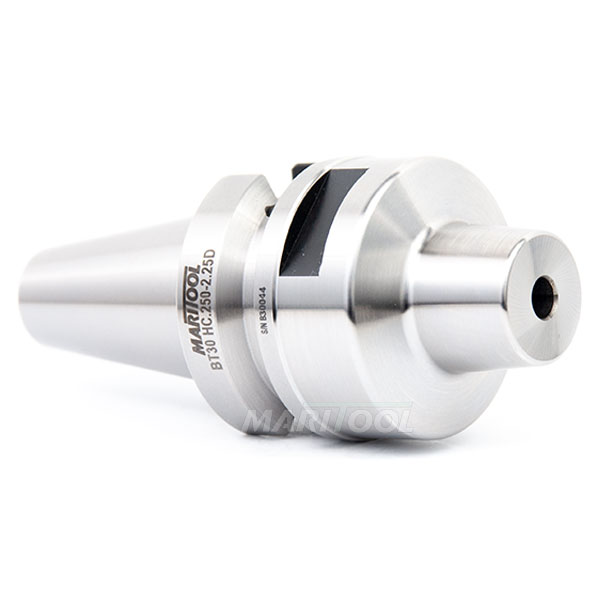

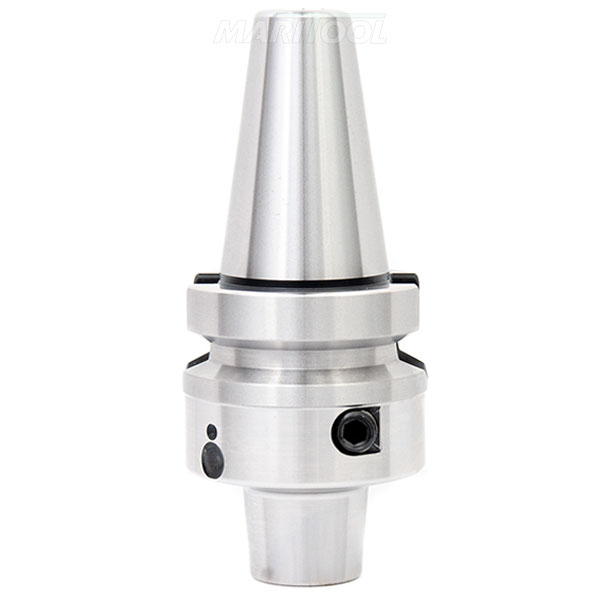

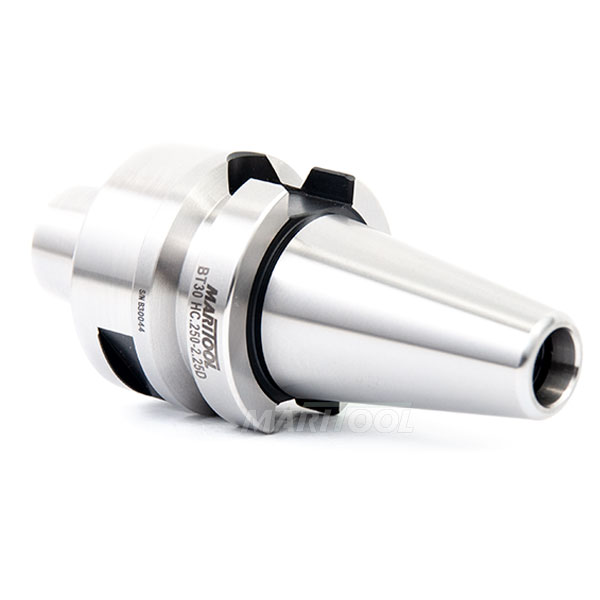

Hydraulic Holders have the best dampening abilities of all holders resulting in....
- Minimal noise emissions
- Increased tool life
- Improved surface finish and less chatter
- Less chipping of sharp corner tooling
Product Details
- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- These holders are maintenance free
- Fast tool change, simply insert tool and tighten screw until it stops
- Holder and stop screw have thru holes, coolant thru capable
- Sleeves are available for holding different diameters
- MariTool offers standard and coolant sealing sleeves
- Super accurate .0001 TIR or less at 4x diameter
- Maximum operating temperature 120 deg Fahrenheit
- Balanced to G2.5 @ 25,000 rpms
- Max shank without sleeve is .250 Inches
- Uses HC.25-XXX sleeves available here
- 4mm allen key is not included but available here
- Bore depth is 1.875 Inches
- Shank must be inserted min .60" deep for proper clamping
- Internal stop screw is included
- View BT30 Pull Studs
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
