BT30 ER11 80mm Dual Contact Tapered Nose Collet Chuck Tool Holder $161.65

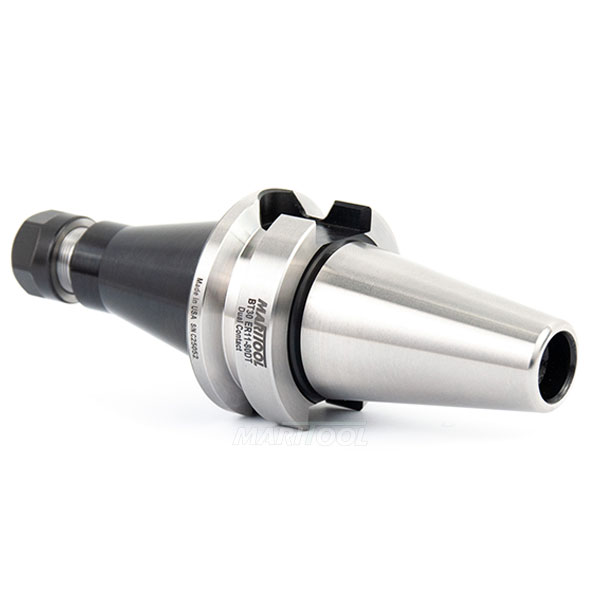

BT30 ER11 80mm Dual Contact Tapered Nose Collet Chuck Tool Holder
Click to enlarge

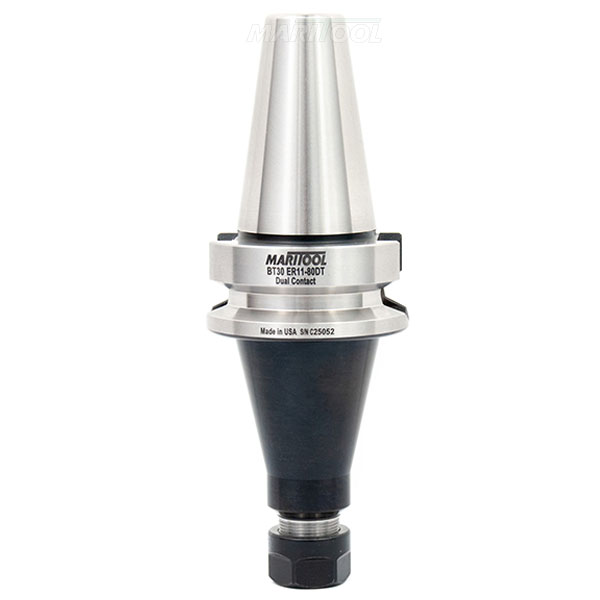

BT30 ER11 80mm Dual Contact Tapered Nose Collet Chuck Tool Holder

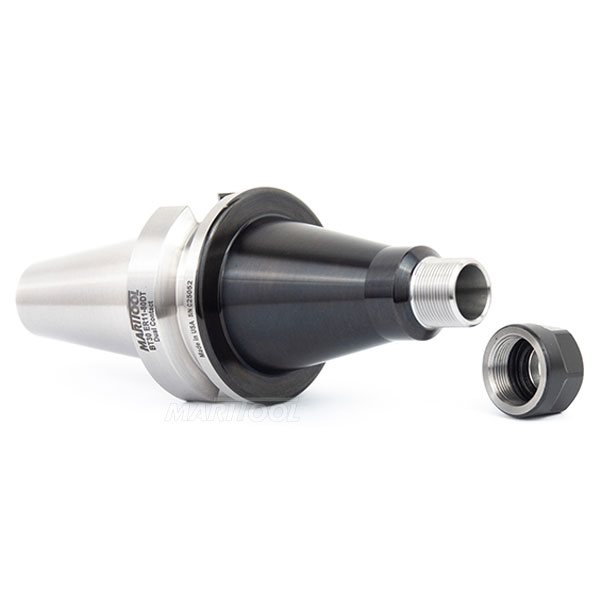

Click to enlarge 		BT30 ER11 80mm Dual Contact Tapered Nose Collet Chuck Tool Holder
Click to enlarge
Item No. BT30-ER11-80DT
Price: $161.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-ER11-80DT
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all BT30 machines with Dual Contact Spindles
  • Compatible with BIG-PLUS® spindles
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 80mm (3.15 inches)
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-ER11-80DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Size:  ER 11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  80mm
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30 DUAL CONTACT
