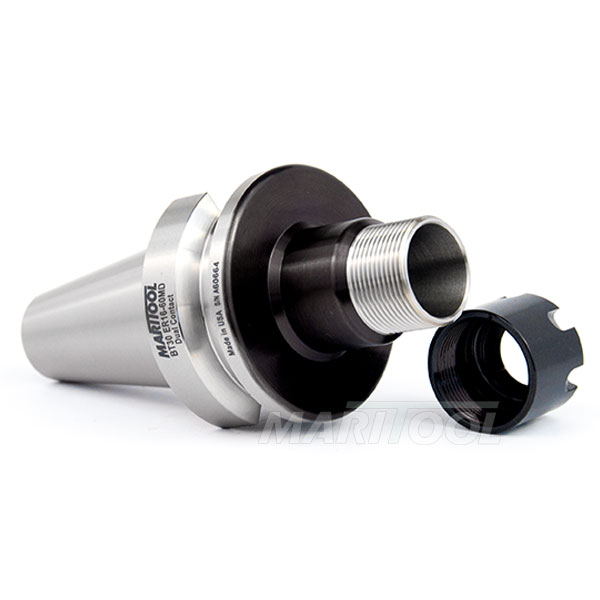

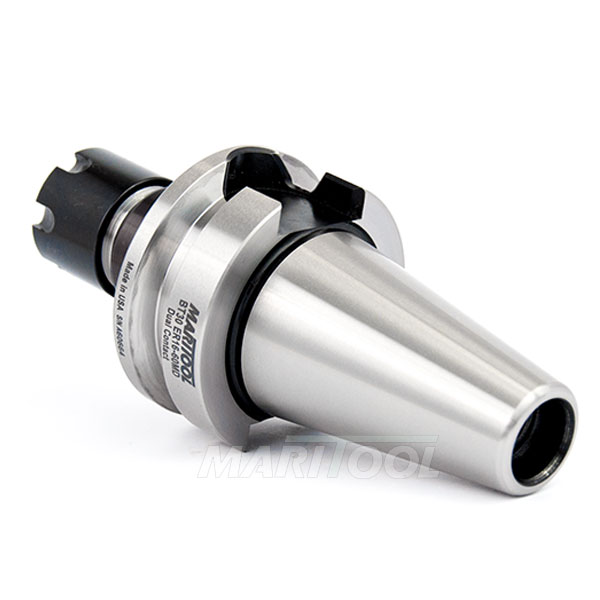

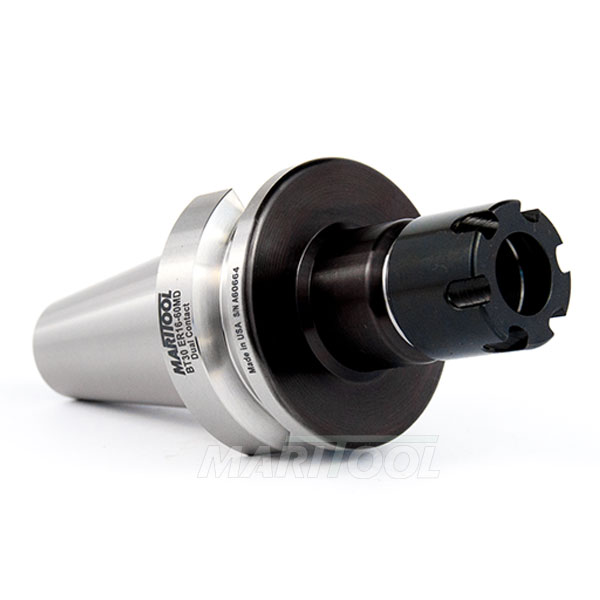

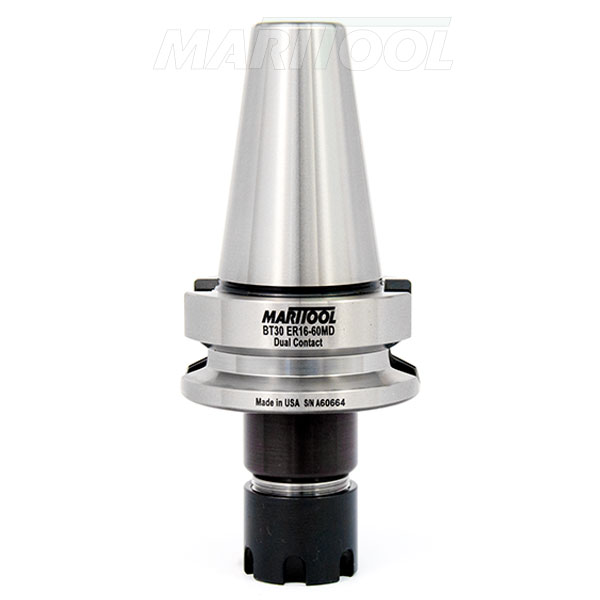

- Collet Chuck accepts all ER16 collets
- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- Made from alloy steel hardened to 54 - 56rc
- Balanced to G2.5 at 20,000 rpms
- Gage length is 60mm (2.3 inches)
- Concentricity is less than .0001 at collet face
- Collet nut is included
- Mini Collet Nut is slimmer than standard collet nut
- ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
- Must use ER16M collet wrench
- Rear thread for pull stud is m12 x 1.75
- View BT30 Pull Studs
- MariTool Part# is BT30-ER16-60MD
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
