- Works on all BT30 machines with Dual Contact Spindles
- Compatible with BIG-PLUS® spindles
- Drill Chuck is screwed from the back to ensure it does not come out during high cutting loads
- Balanced to G2.5 @ 20,000 rpm, but rated safe operation speed is 7000 rpm
- All critical surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Gage length is 100mm (3.9 inches)
- This unit can hold shanks from .019-.511 (.5-13mm)
- Rear thread for pull stud is M12 x 1.75
- Max runout is .0015"
- Wrench included
- Not coolant thru capable
- Max drill depth when clamping min diameter drill is 1.145"
- Max drill depth when clamping max diameter drill is 1.38"

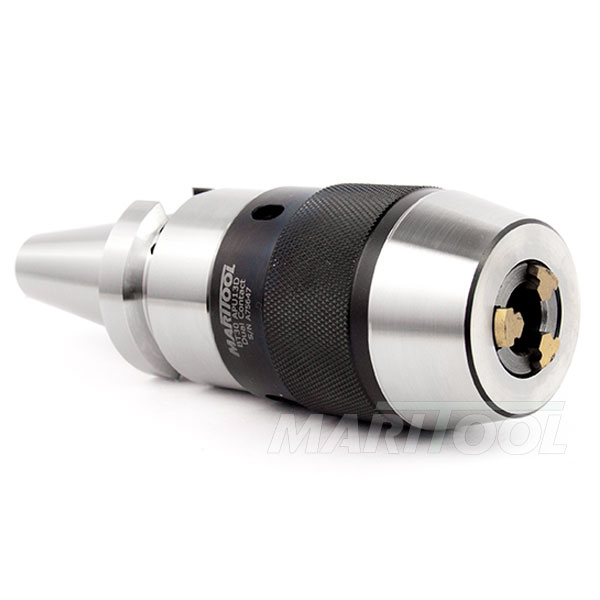

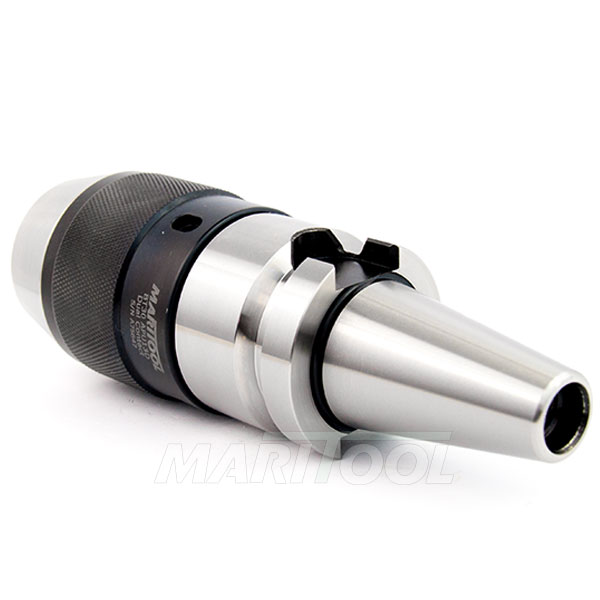

- MariTool Part# is BT30-APU13D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
