BT30 DRILL CHUCK TOOL HOLDER 6mm $201.50

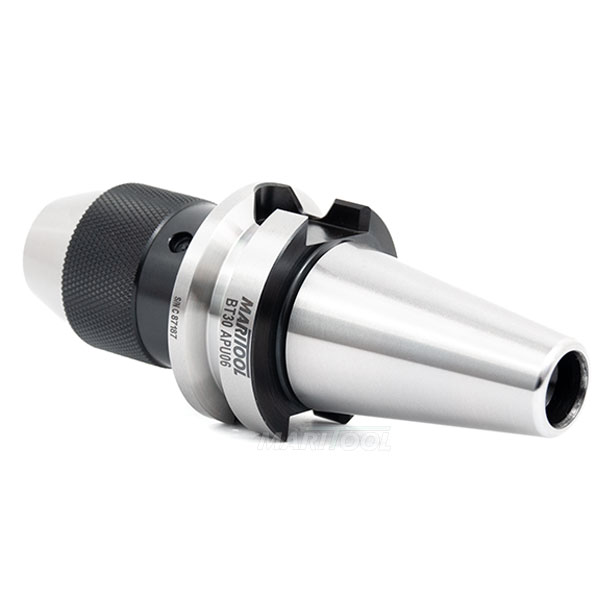

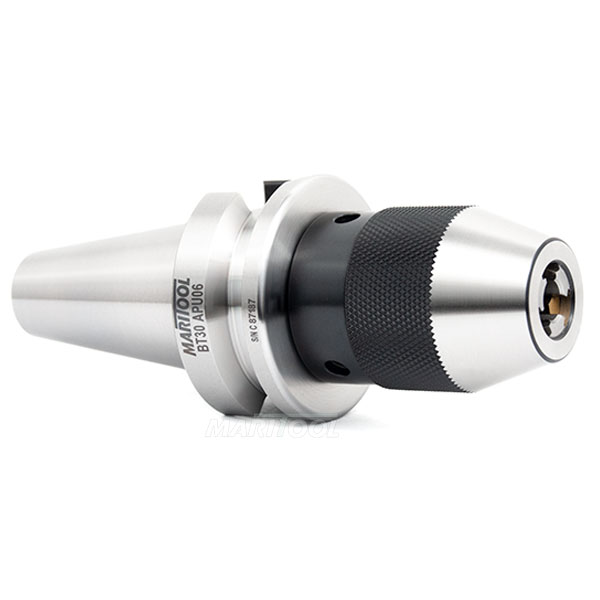

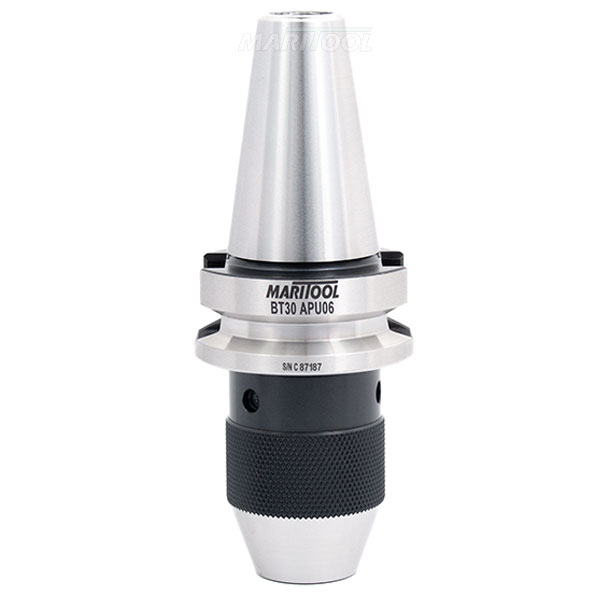

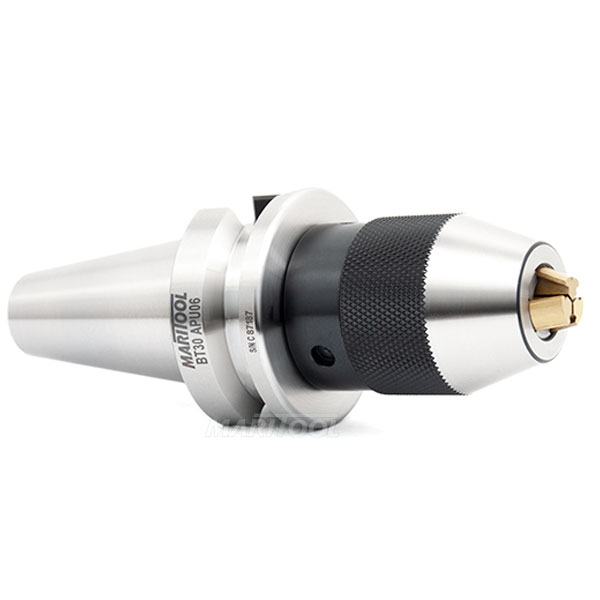

BT30 DRILL CHUCK TOOL HOLDER 6mm
Click to enlarge

BT30 DRILL CHUCK TOOL HOLDER 6mm
Click to enlarge 		BT30 DRILL CHUCK TOOL HOLDER 6mm
Click to enlarge
BT30 DRILL CHUCK TOOL HOLDER 6mm
Click to enlarge
Item No. BT30-APU06
Price: $201.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Drill Chuck is screwed from the back to ensure it does not come out during high cutting loads
  • Balanced to G2.5 @ 20,000 rpm, but rated safe operation speed is 8000 rpm
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 80mm (3.14 inches)
  • This unit can hold shanks from .010-.236 (.25-6mm)
  • Rear thread for pull stud is M12 x 1.75
  • Max runout is .0015"
  • Wrench included
  • Not coolant thru capable
  • Clamping depth is .8"
  • MariTool Part# is BT30-APU06
