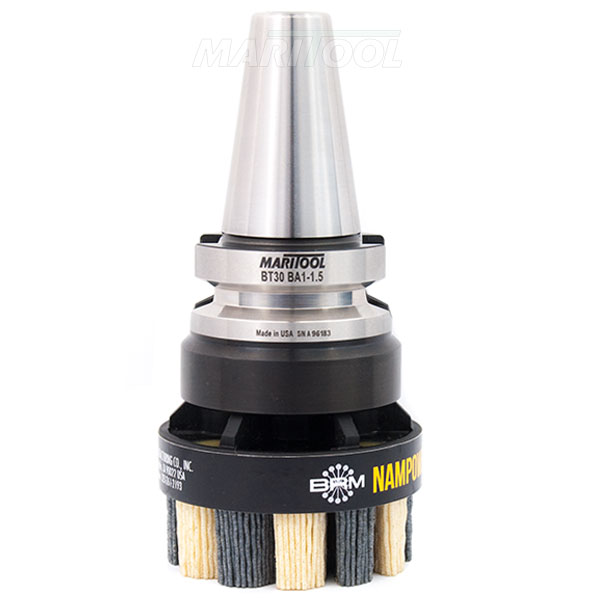

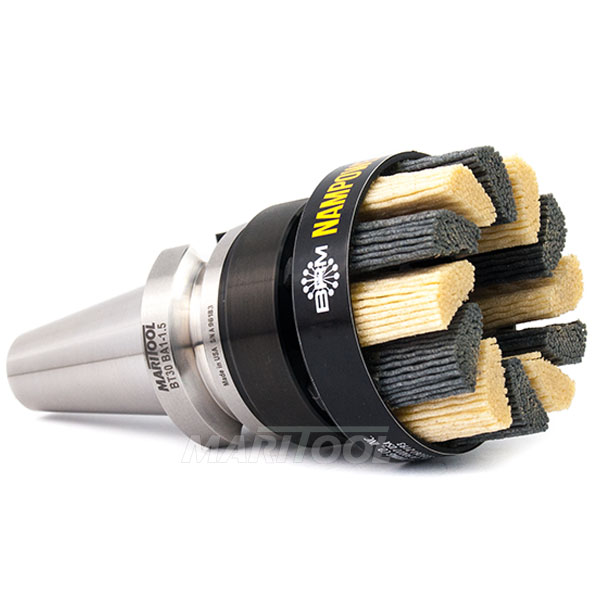

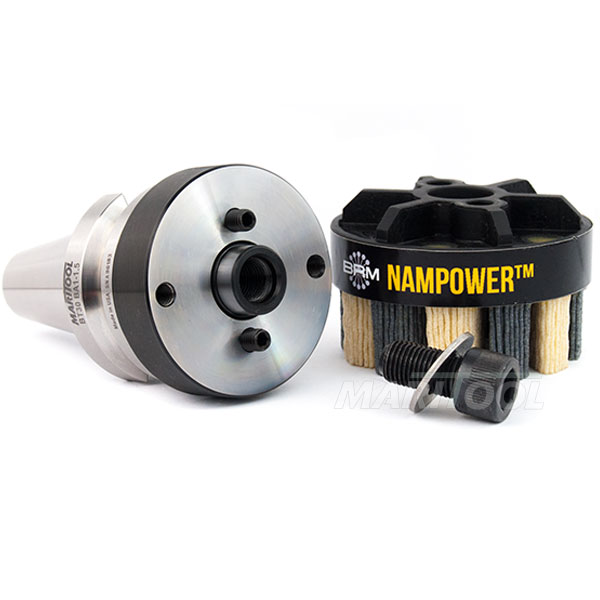

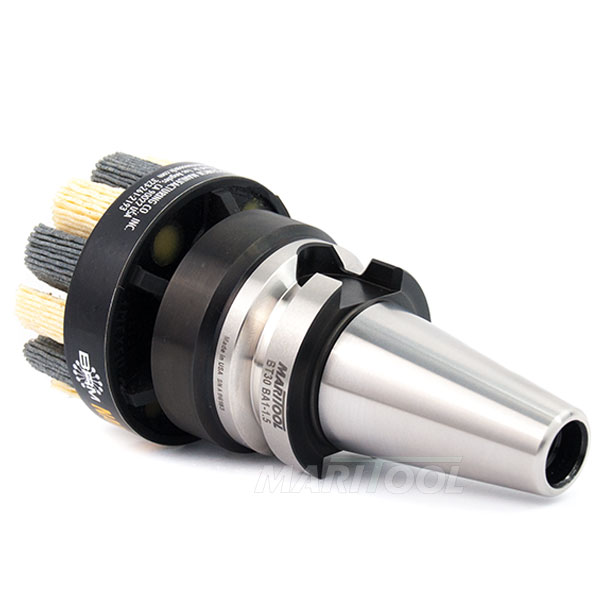

BT30 Brush Arbor Adapter BA1-1.5 $154.00
BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge

BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge 		BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge
BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge 		BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge
BT30 Brush Arbor Adapter BA1-1.5
Click to enlarge
Item No. BT30-BA1-1.5
Price: $154.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-BA1-1.5
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all BT30 machines

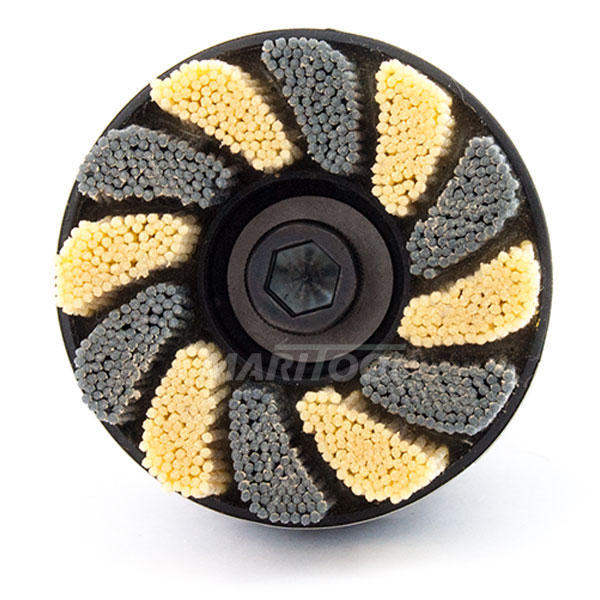

  • Mates perfectly to Dot and Turbine style disc brushes from Brush Research 50mm, 60mm and 80mm diameter and any grit (not included).
  • Tool holder arbor diameter is .596/.595 diameter X .250" tall

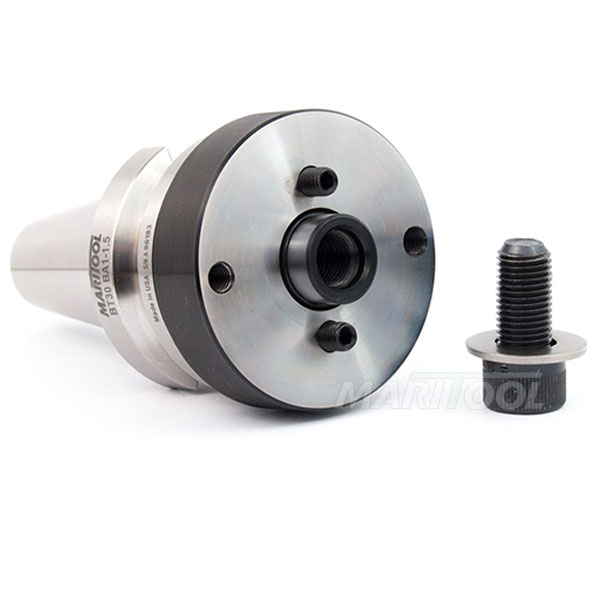

  • Face is tapped M5x.8 for set screw drive keys (only 2 are used)
  • M5x.8 set screws (2) and 3/8-24 SHCS with washer is included
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms (do not exceed brush rated speed)
  • Nose diameter is 50mm
  • Gage length is 1.5 inches
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-BA1-1.5
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  1.5
Material:  Hardened Alloy Steel
Nose Diameter:  50mm
Rear Thread:  M12 x 1.75
Taper:  BT30
