BT30 1/2 SHRINK FIT TOOL HOLDER .500-2.25 W/O Drive Slots $192.75

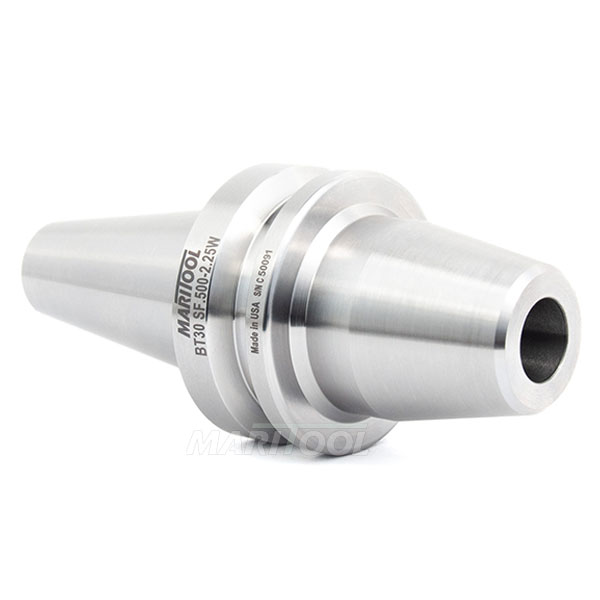

BT30 1/2 SHRINK FIT TOOL HOLDER .500-2.25 W/O Drive Slots
Click to enlarge

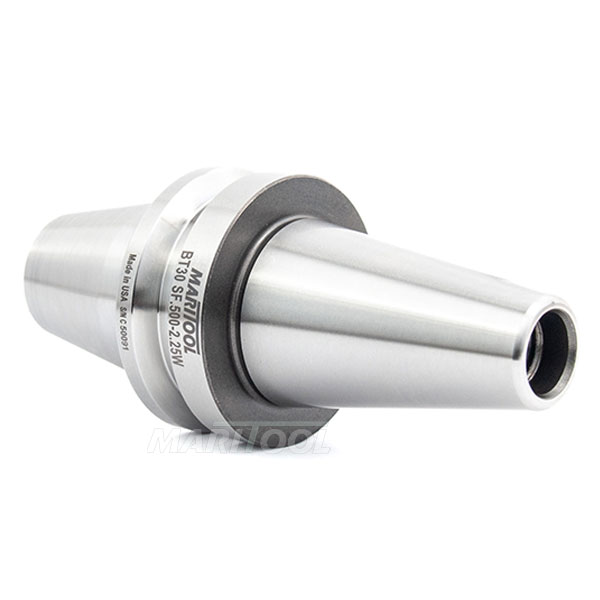

BT30 1/2 SHRINK FIT TOOL HOLDER .500-2.25 W/O Drive Slots

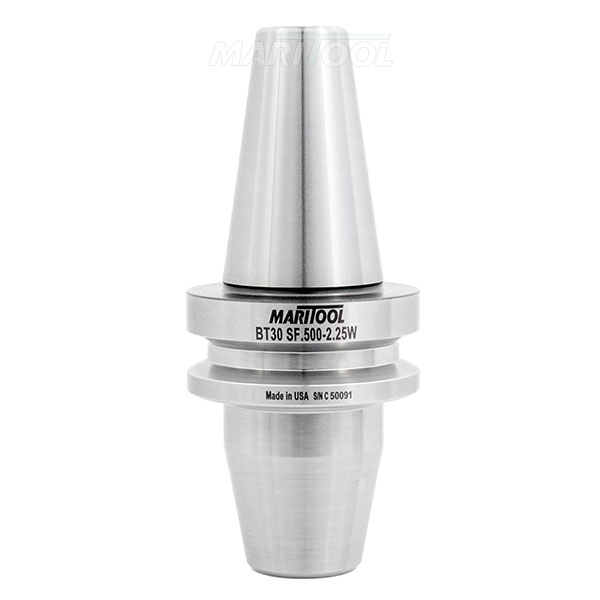

Click to enlarge 		BT30 1/2 SHRINK FIT TOOL HOLDER .500-2.25 W/O Drive Slots
Click to enlarge
Item No. BT30-SF.500-2.25W
Price: $192.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Ideal for router machines that do not require flange drive slots
  • This Shrink Fit Tool Holder accepts all .500 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 2.25 inches
  • Nose diameter is 1.25 Inches
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0001
  • Rear thread for pull stud is M12 x 1.75
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is BT30-SF.500-2.25W
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Gage Length:  2.25
Material:  Hardened H-13 Alloy Steel
Rear Thread:  M12 x 1.75
Shank Size:  .500
Taper:  BT30
