BT30 ER16 80mm Collet Chuck Holder W/Flats - W/O Drive Slots $159.75

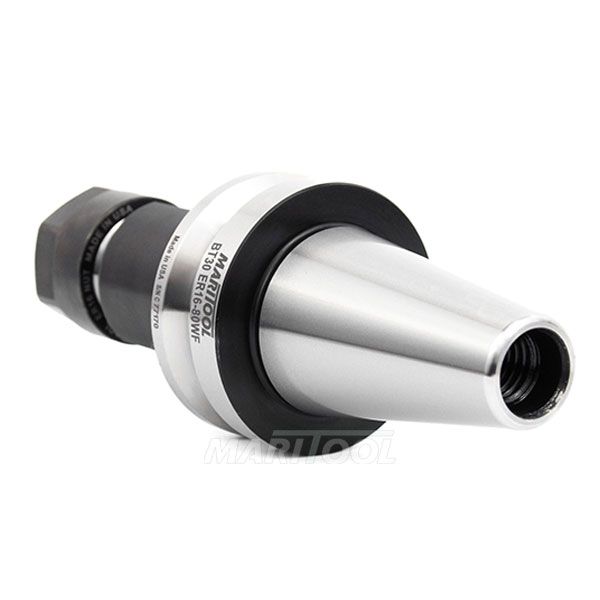

BT30 ER16 80mm Collet Chuck Holder W/Flats - W/O Drive Slots
Click to enlarge

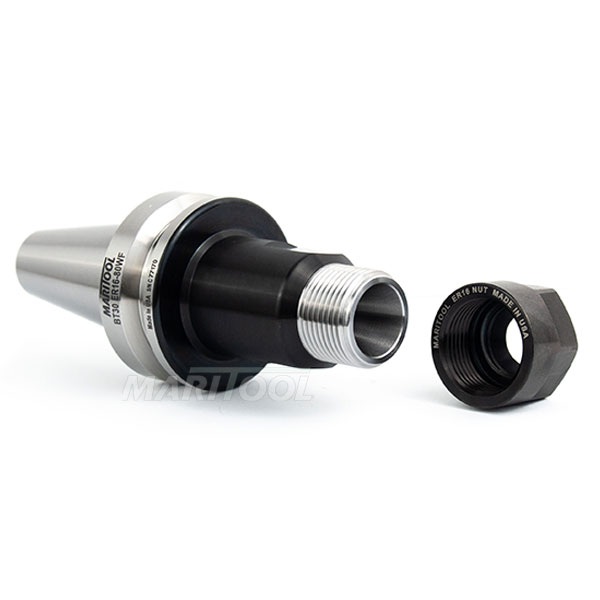

BT30 ER16 80mm Collet Chuck Holder W/Flats - W/O Drive Slots

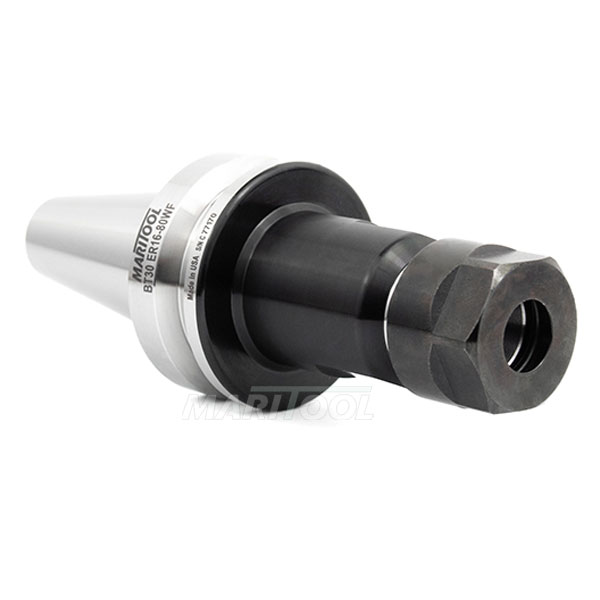

Click to enlarge 		BT30 ER16 80mm Collet Chuck Holder W/Flats - W/O Drive Slots
Click to enlarge

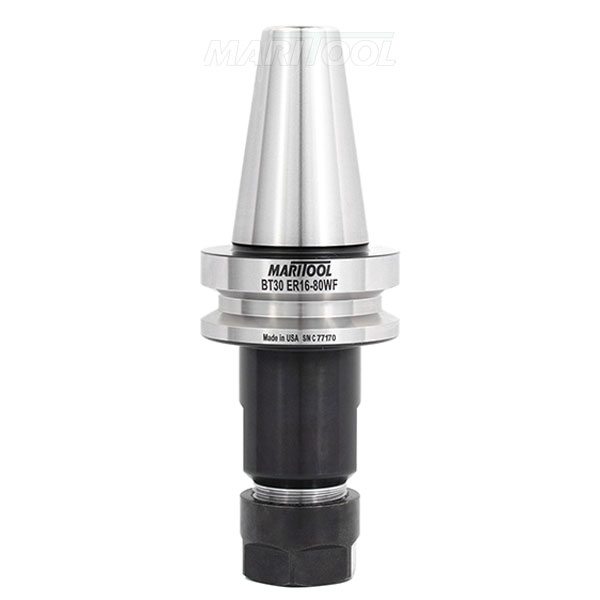

BT30 ER16 80mm Collet Chuck Holder W/Flats - W/O Drive Slots
Click to enlarge
Item No. BT30-ER16-80-WF
Price: $159.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Collet Chuck accepts all ER16 collets
  • Ideal for router machines that do not require flange drive slots
  • Threaded for stop screw type 1 (not included)
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Distance between flats on tool holder (near collet nut) are 1.022" (26mm) apart
  • Gage length is 80mm (3.15 inches)
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-ER16-80-W
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.4375 inches
Collet Size:  ER 16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  80mm
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30
