BT30 Work Stop Tool Holder $62.70

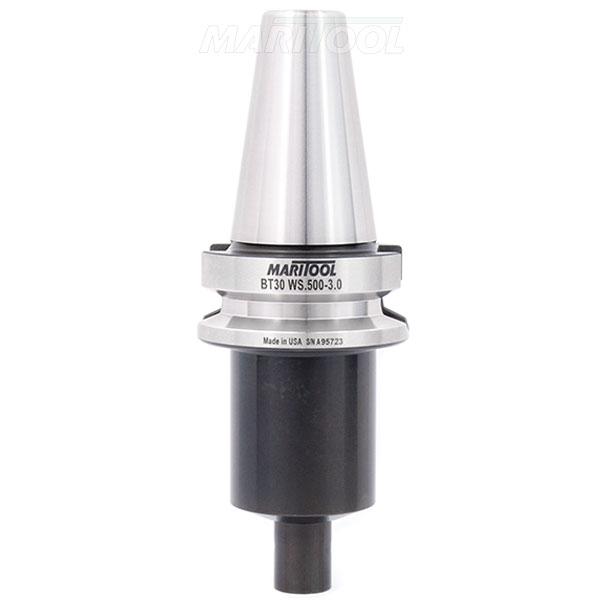

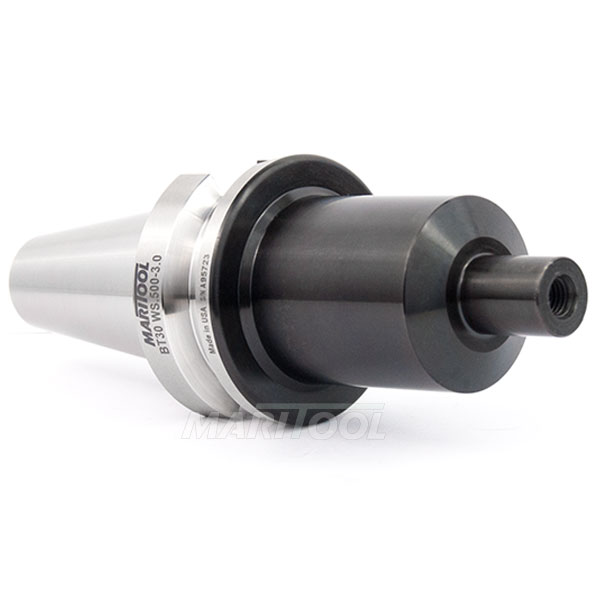

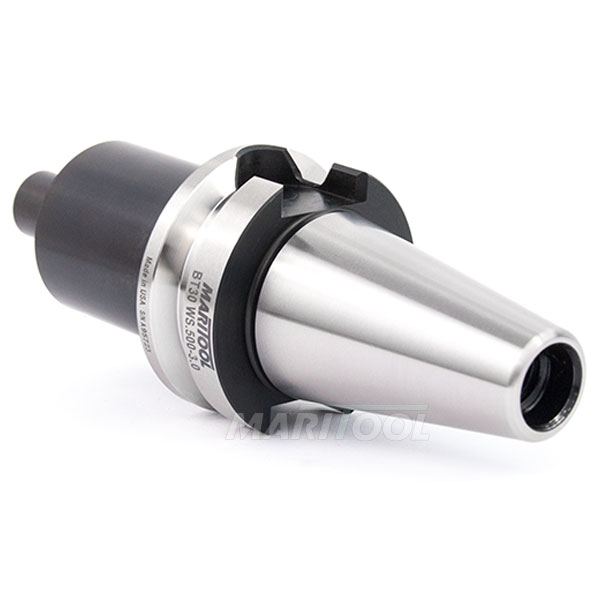

BT30 Work Stop Tool Holder
Click to enlarge

BT30 Work Stop Tool Holder
Click to enlarge 		BT30 Work Stop Tool Holder
Click to enlarge
Item No. BT30-WS.500-3.0
Price: $62.70
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-WS.500-3.0
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all BT30 machines
  • This tool can be used to replace a retractable work stop
  • For situations where you may need to machine both ends of a part so a normal stop is not possible
  • Work stop arbor is .500" dia +-.0003 and is .625" long
  • Nose diameter after work stop is 1.25" diameter
  • Gage length at very end of stop is 3"
  • End of stop is tapped M6 x 1.0
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity of work stop is .0003 inches or less
  • Rear thread for pull stud is M12 x 1.75
  • MariTool Part# is BT30-WS.500-3.0
Product Specifications
Balance Spec:  Not balanced
Coolant Thru:  No
Gage Length:  3.0"
Rear Thread:  M12 x 1.75
Taper:  BT30
