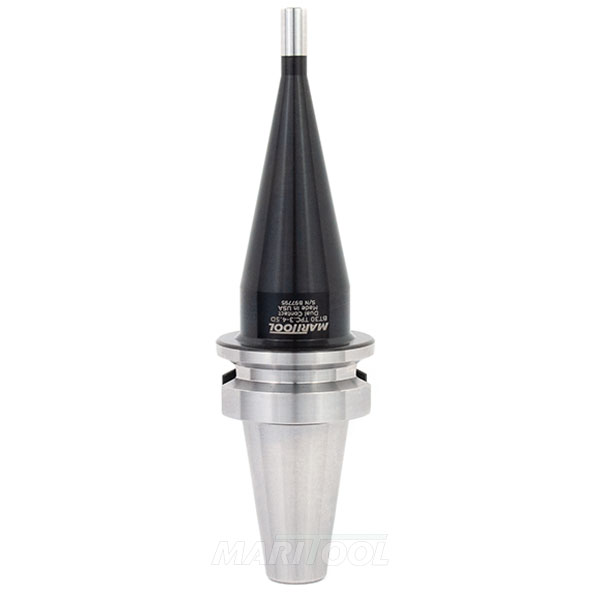

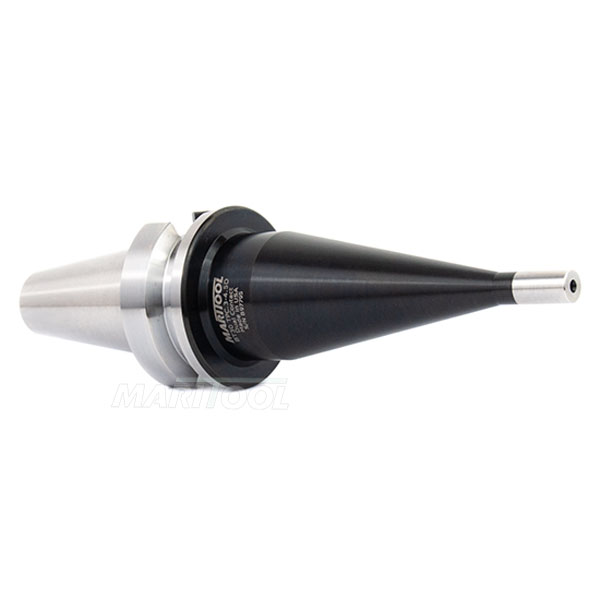

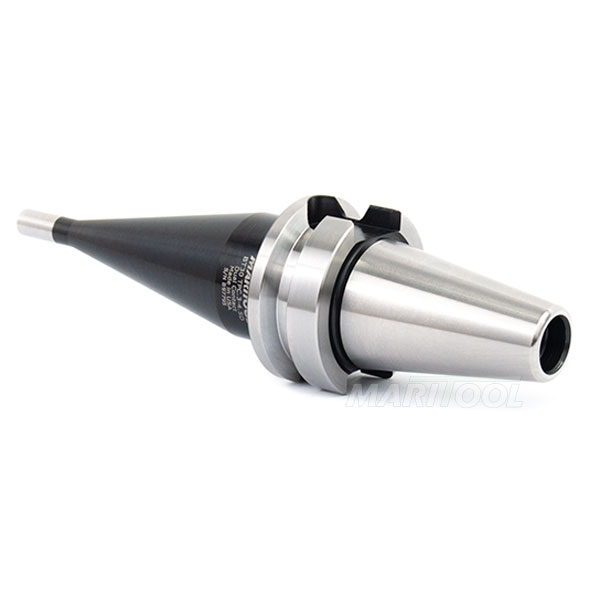

Dual Contact BT30 Tool Probe Calibrator .3-4.5 $252.70
Dual Contact BT30 Tool Probe Calibrator .3-4.5
Click to enlarge

Dual Contact BT30 Tool Probe Calibrator .3-4.5
Click to enlarge 		Dual Contact BT30 Tool Probe Calibrator .3-4.5
Click to enlarge
Dual Contact BT30 Tool Probe Calibrator .3-4.5
Click to enlarge
Item No. BT30-TPC.3-4.5D
Price: $252.70
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Works on all BT30 machines with Dual Contact Spindles
  • Compatible with BIG-PLUS® spindles
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc

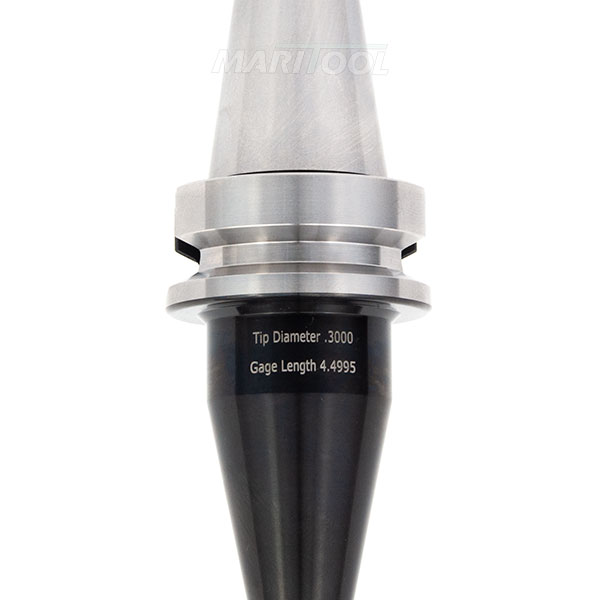

  • Gage length is 4.500 inches to a tolerance of +-.0003
  • Probe diameter is .3000 inches to a tolerance of +-.0002
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is M12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-TPC.3-4.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
