BT30 Tool Probe Calibrator .3-3.0 $224.85

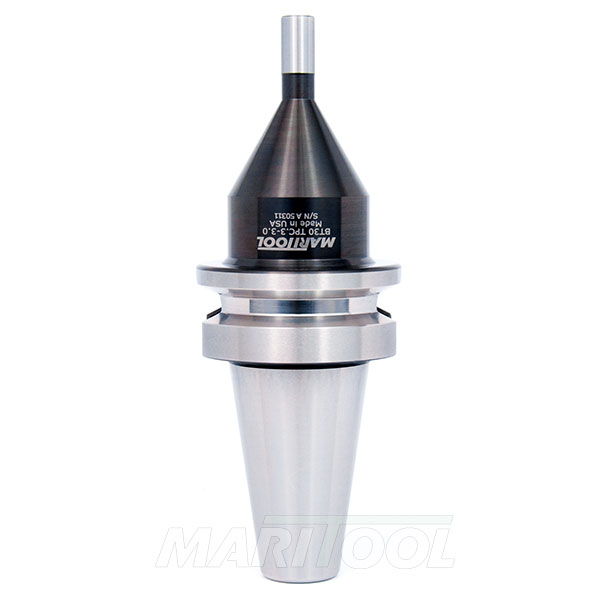

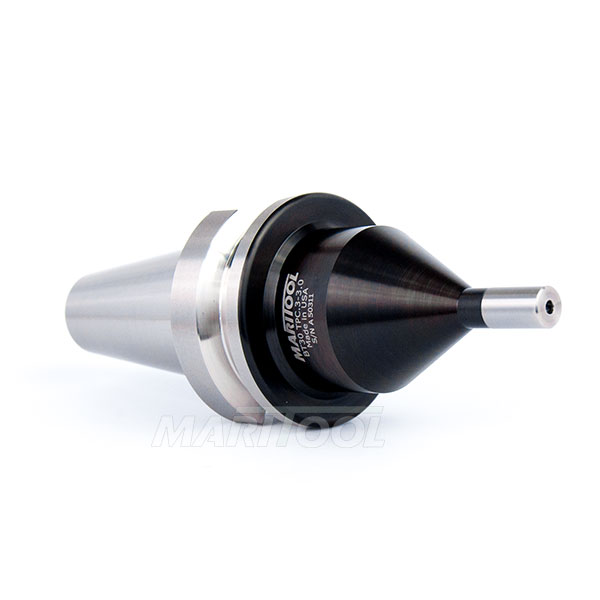

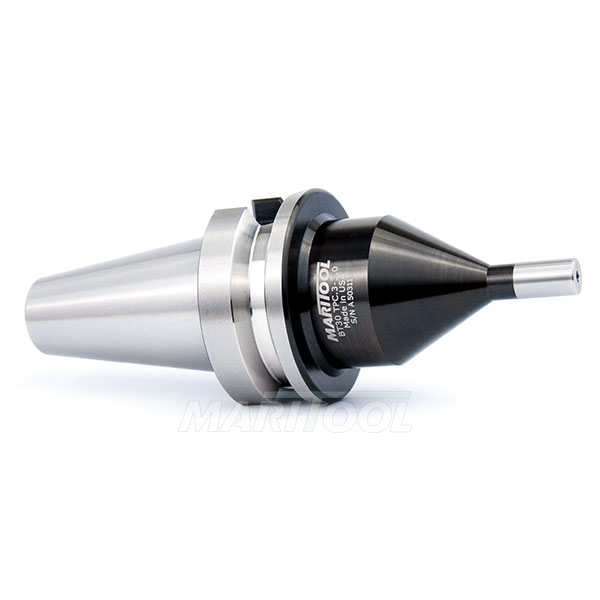

BT30 Tool Probe Calibrator .3-3.0
Click to enlarge

BT30 Tool Probe Calibrator .3-3.0
Click to enlarge 		BT30 Tool Probe Calibrator .3-3.0
Click to enlarge
BT30 Tool Probe Calibrator .3-3.0
Click to enlarge 		BT30 Tool Probe Calibrator .3-3.0
Click to enlarge
Item No. BT30-TPC.3-3.0
Price: $224.85
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for BT30-TPC.3-3.0
PDF file  DWG file  DXF file  STP file
Product Info

View complete catalog page

  • Works on all BT30 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc

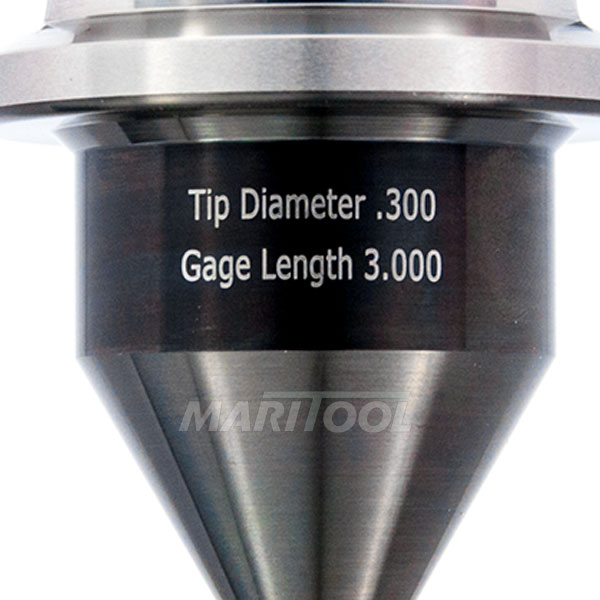

  • Gage length is 3.000 inches to a tolerance of +-.0003
  • Probe diameter is .3000 inches to a tolerance of +-.0002
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is M12 x 1.75
  • MariTool Part# is BT30-TPC.3-3.0
