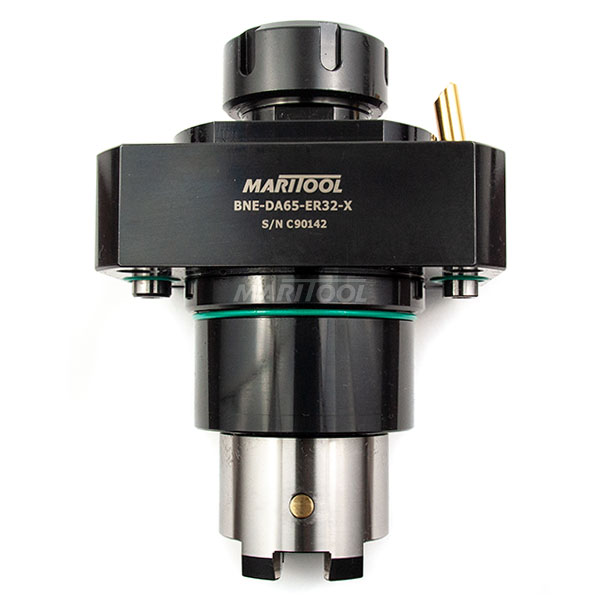

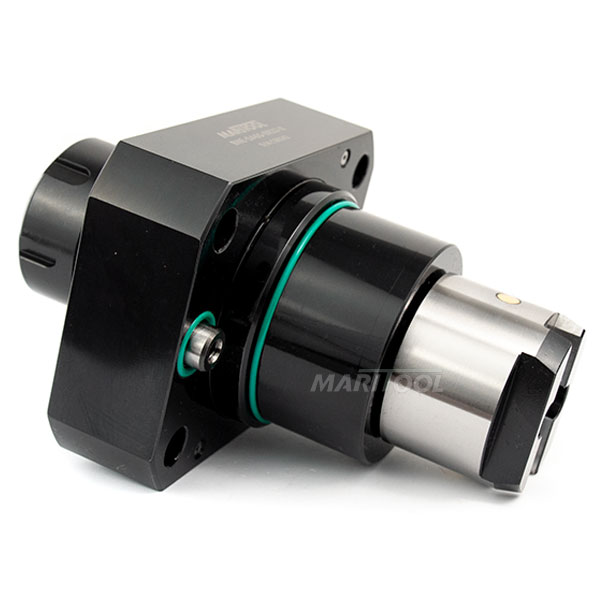

BNE DA65 ER32 X-Live Tooling Block For Miyano $1,790.00
BNE DA65 ER32 X-Live Tooling Block For Miyano
Click to enlarge

BNE DA65 ER32 X-Live Tooling Block For Miyano
Click to enlarge 		BNE DA65 ER32 X-Live Tooling Block For Miyano
Click to enlarge
Item No. BNE-DA65-ER32-X
Price: $1,790.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • X-live unit
  • Works on Miyano BNE machines. Please review cad files or contact us for more information on fit and function
  • Max rpm 5,000 rpms

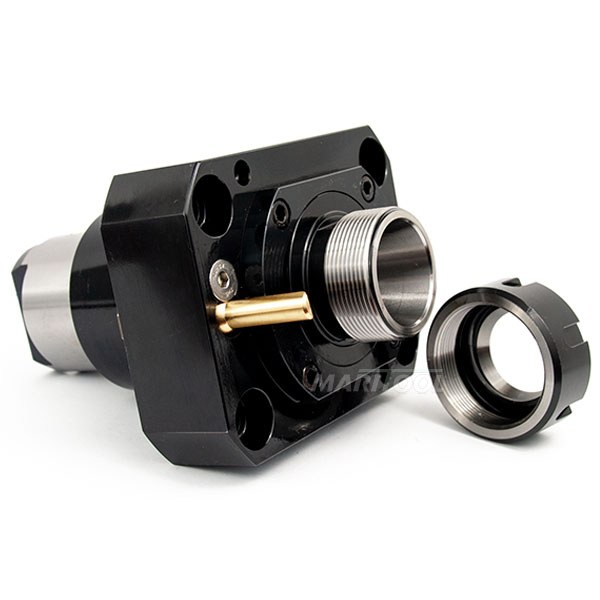

  • Uses ER32 collets, collet nut is included
  • .0002 Max TIR on spindle collet bore
  • Coolant thru side of block, this unit is not coolant thru
  • Uses high precision angular contact bearings for milling and drilling
  • Bolts for attaching to turret are included
  • Wrenches are included
  • 6 month warranty from date of purchase.
Product Specifications
Collet Nut:  ER32
