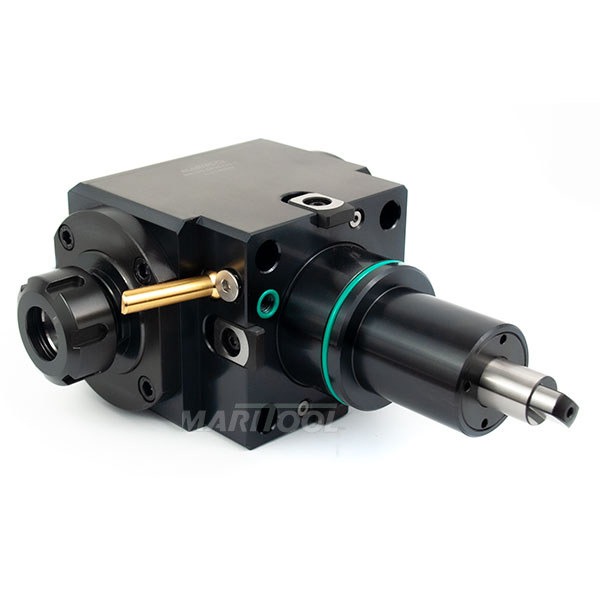

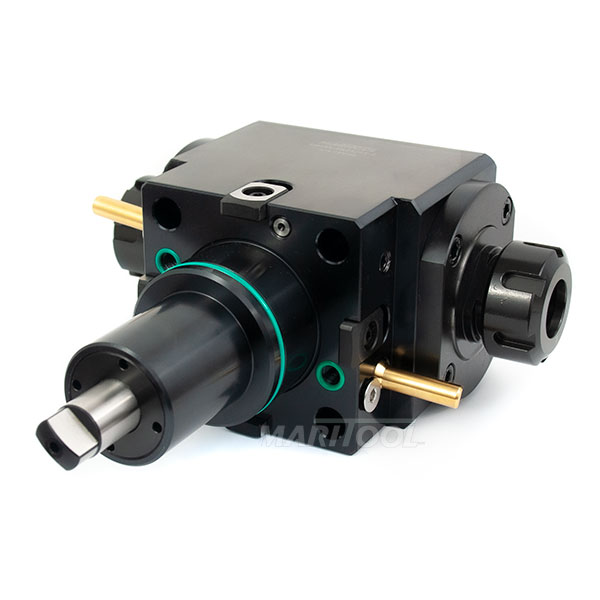

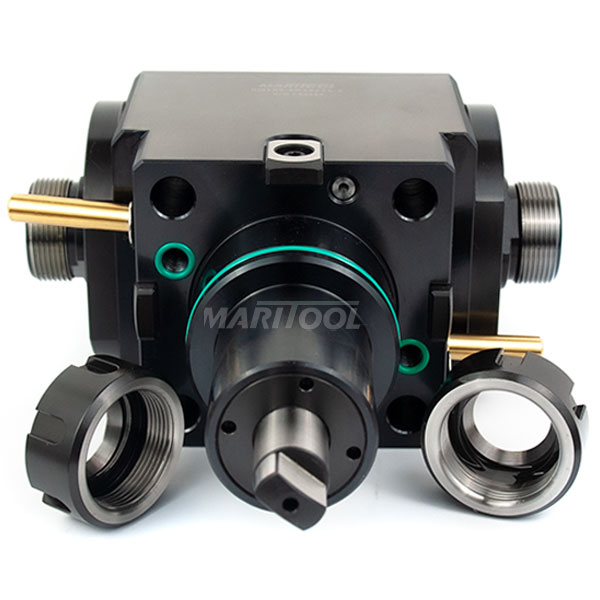

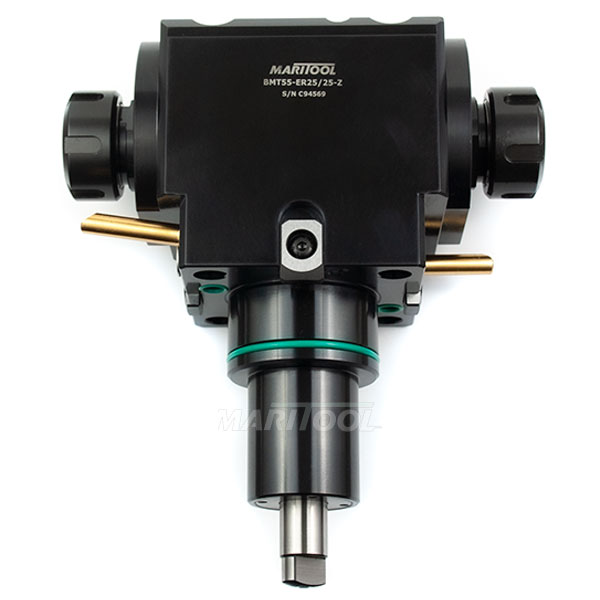

BMT55 ER25 Z-Live Tooling Block Double Ended $2,445.00
BMT55 ER25 Z-Live Tooling Block Double Ended
Click to enlarge

BMT55 ER25 Z-Live Tooling Block Double Ended
Click to enlarge 		BMT55 ER25 Z-Live Tooling Block Double Ended
Click to enlarge
BMT55 ER25 Z-Live Tooling Block Double Ended
Click to enlarge
Item No. BMT55-ER25/25-Z
Price: $2,445.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

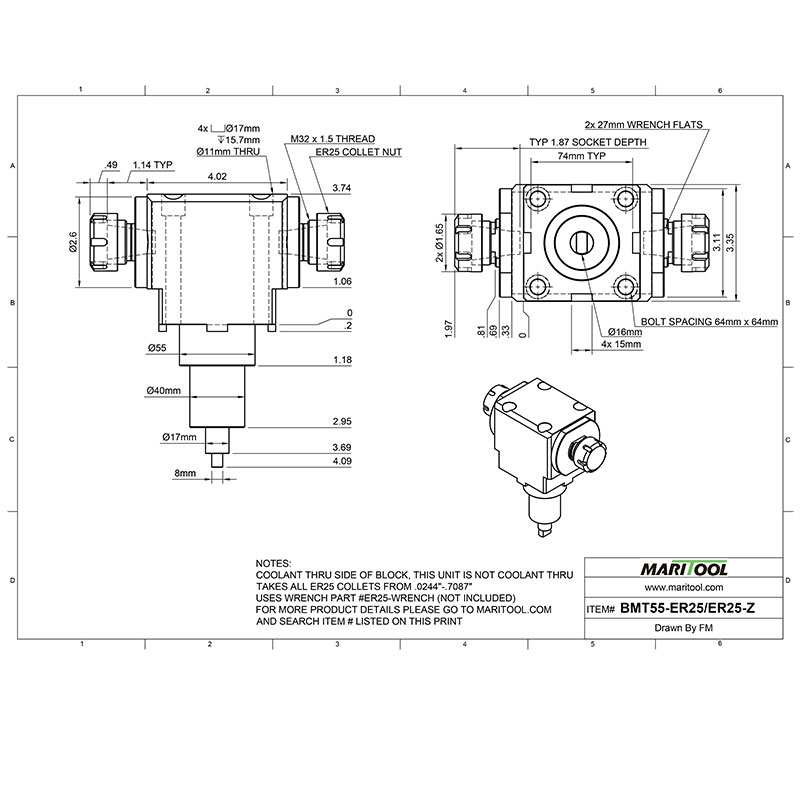

View complete catalog page

  • Z-live unit
  • Works on any machine that accepts BMT55 tooling
  • Max rpm 5,000 rpms
  • Uses ER25 collets, collet nut is included
  • Both ends are ER25 collet chucks
  • .0002 Max TIR on spindle collet bore
  • Coolant thru side of block, this unit is not coolant thru
  • Uses high precision angular contact bearings for milling and drilling
  • Bolts for attaching to turret are included
  • 6 month warranty from date of purchase.
Product Specifications
Collet Nut:  ER25 on both ends
Concentricity:  .0002 or less
Max RPM:  5000
Turret Style:  BMT55
Weight:  14.10 LBS
