1.5 OD x .750 ID Hydraulic Lathe Bushing $202.30

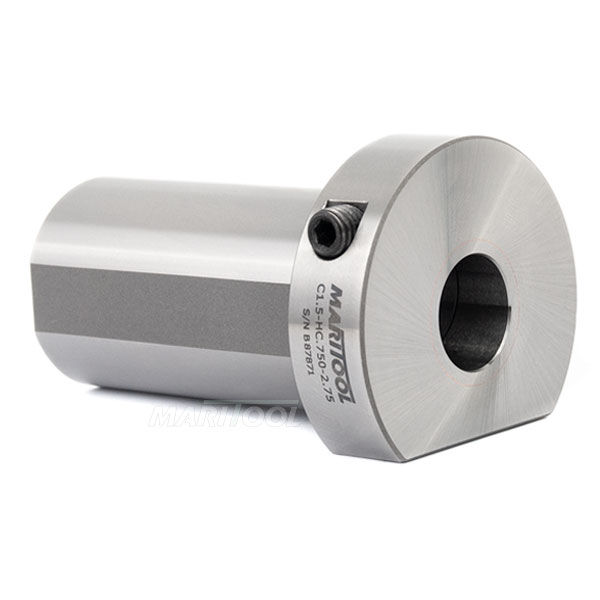

1.5 OD x .750 ID Hydraulic Lathe Bushing
Click to enlarge

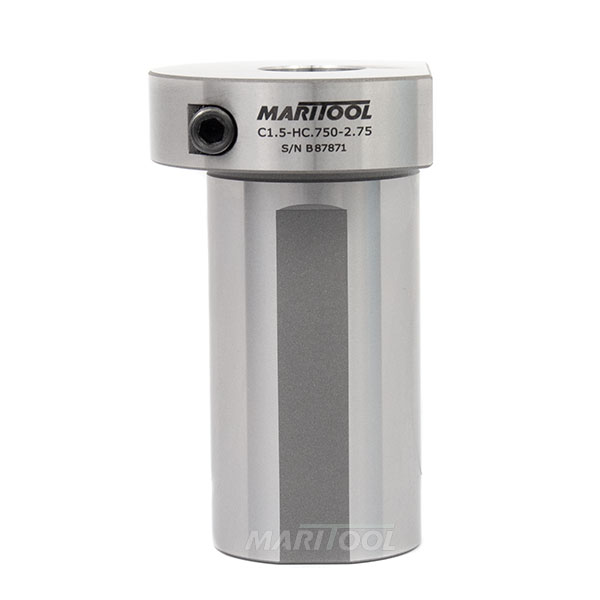

1.5 OD x .750 ID Hydraulic Lathe Bushing

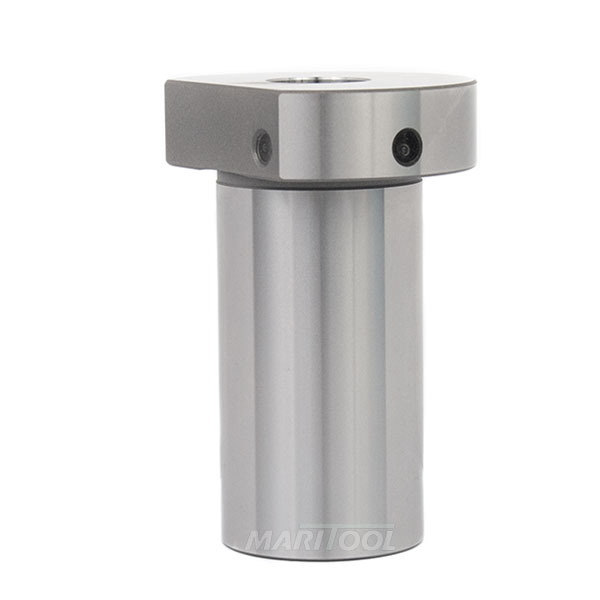

Click to enlarge 		1.5 OD x .750 ID Hydraulic Lathe Bushing
Click to enlarge

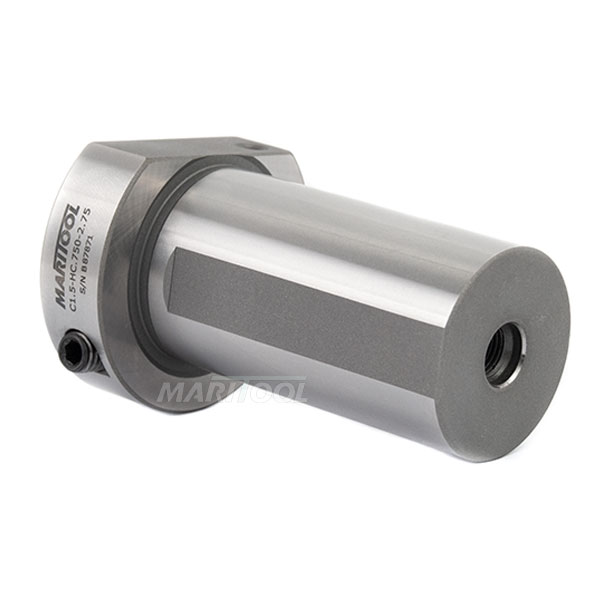

1.5 OD x .750 ID Hydraulic Lathe Bushing
Click to enlarge
Item No. C1.5-HC.750-2.75
Price: $202.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for C1.5-HC.750-2.75
DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • These are not made for rotating, these are not balanced
  • These are for lathe turret or gang block tooling
  • 1.5 shank diameter X .750 inside diameter bore
  • Shank is 2.75 Inches long
  • Shank has a flat for clamping
  • Please do not clamp too hard on shank flat
    The hydraulic bladder is close to the screw flat and may get cracked
    This will not be covered under warranty
    The screws further from the front can be tightened harder than the ones closest to the head
  • .0001 TIR runout from internal diameter to outer diameter
  • Bore socket depth is 2.5 Inches
  • Shank must be inserted min 1.375 deep
  • When using sleeve shank must be in at least 80% of sleeve bore
  • Head diameter is 2.28 Inches
  • Max shank diameter this tool will accept is .750 Inches
  • Uses HC.75-XXX sleeves available here
  • 4mm allen key is not included but available here
  • Stronger grip than any collet chuck
  • MariTool Part# is C1.5-HC.750-2.75
