HBOR50 Boring Head $850.00

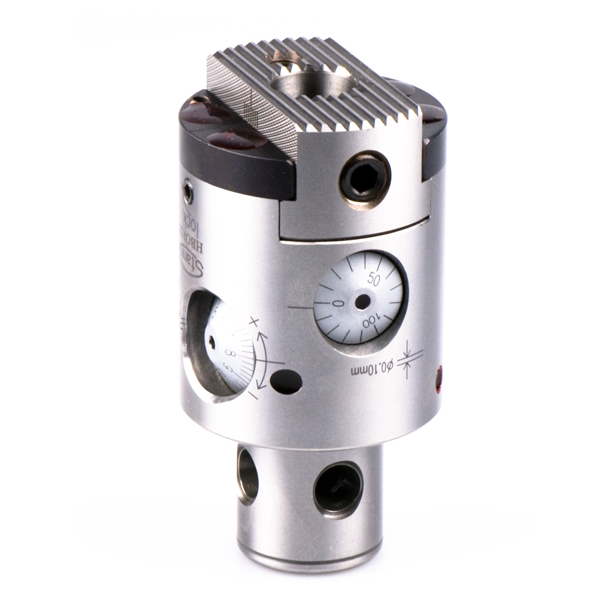

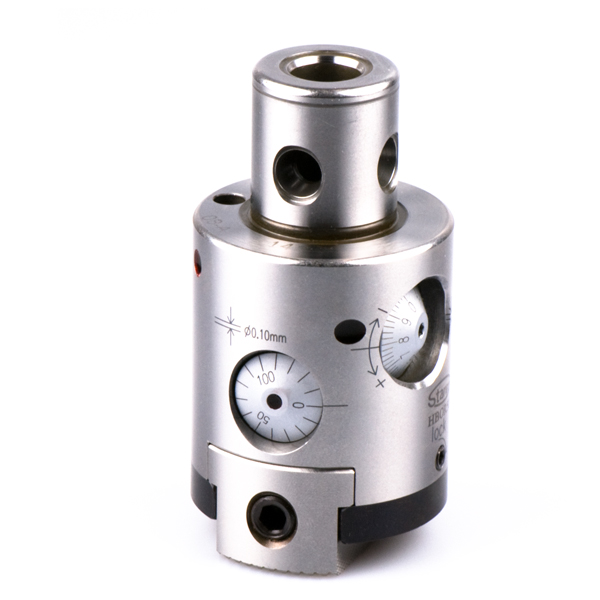

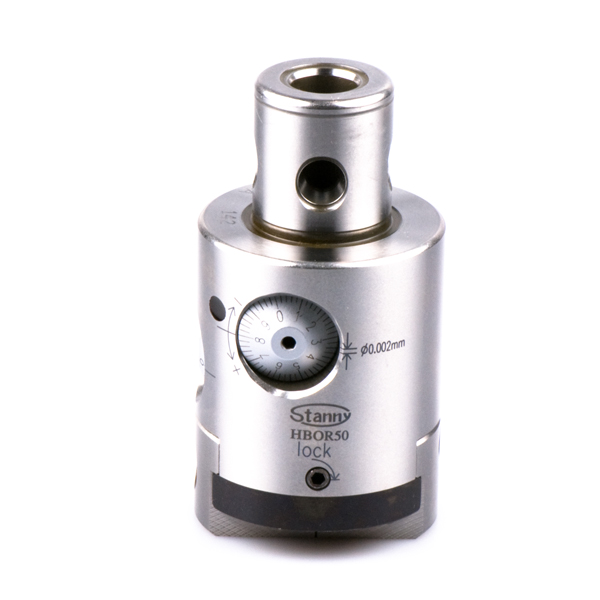

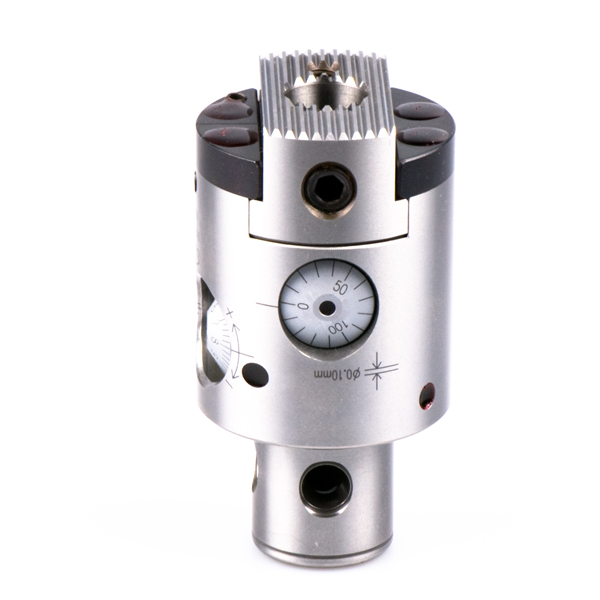

HBOR50 Boring Head
Click to enlarge

HBOR50 Boring Head
Click to enlarge 		HBOR50 Boring Head
Click to enlarge
HBOR50 Boring Head
Click to enlarge 		HBOR50 Boring Head
Click to enlarge
Item No. HBOR50-HEAD
Price: $850.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HBOR50-HEAD
PDF file
Product Info

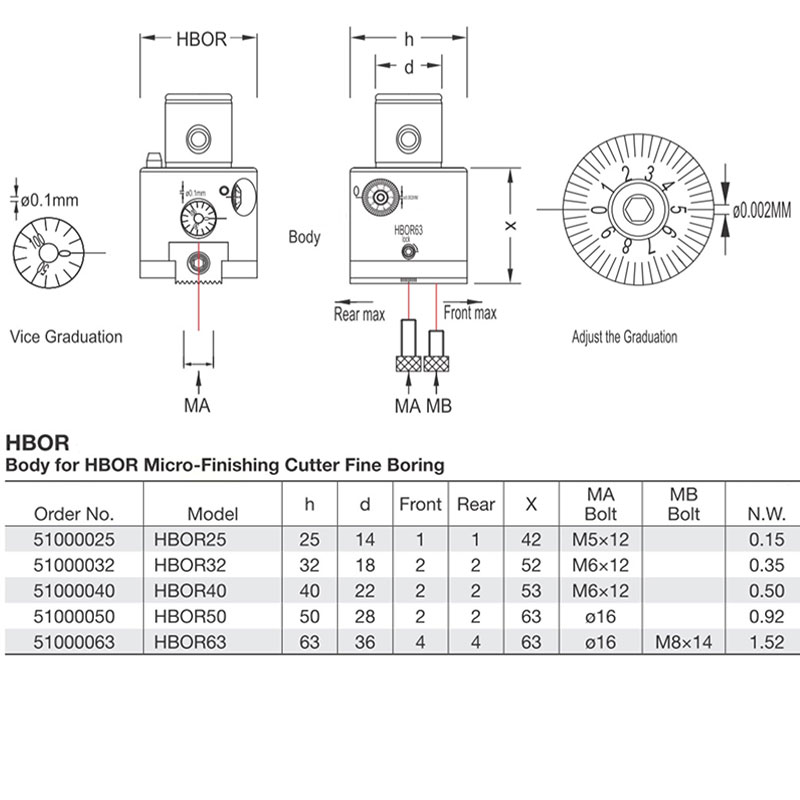

View complete catalog page

  • Super precision boring head is adjustable in 1 micron (.000039 inches) increments
  • Boring head has two dials to show .1mm movements and fine .002mm movements
  • The boring head itself is 50mm in diameter x 62mm long without the shank
  • The shank on the boring head is 28mm dia x 30mm long.
  • Boring head has coolant thru capability
  • On CNC machines with coolant thru option, coolant can be directly ported to the cutting edge
  • CAT40, BT40, BT30, and CAT50 adaptors are not included but available on our website
  • Boring head and all accessories are made from high quality alloy steel
