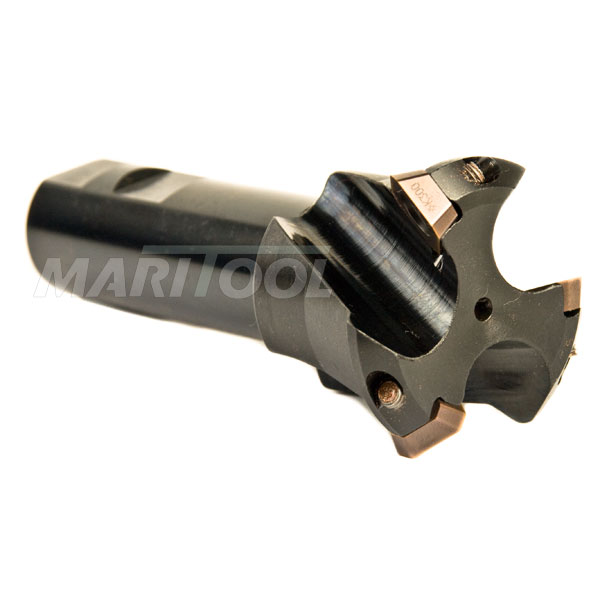

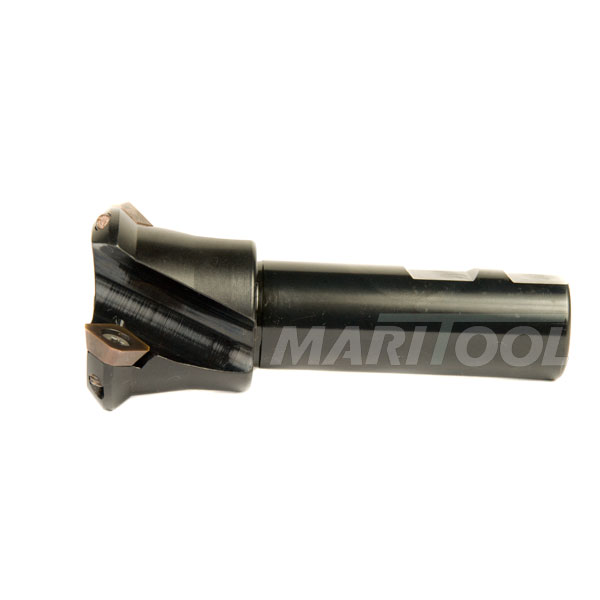

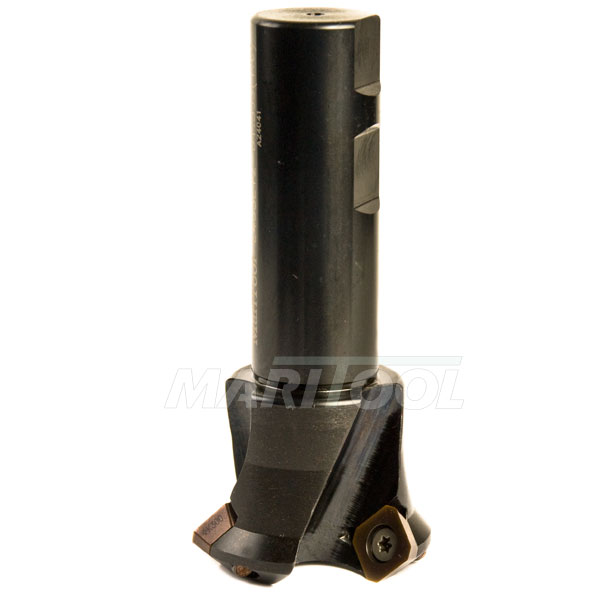

- 3 flute indexable chamfer mill 45 Degree
- Small cutting diameter (where chamfer starts) is 1.5 inch
- Largest cutting diameter (where chamfer ends) is 1.98 inches
- Total length is 4.3 Inches
- Shank length is 2.75 Inches
- Shank is 1.00 Inches With Weldon flats
- All critical surfaces precision ground
- Made from alloy steel for excellent vibration control
- Torx wrench and insert screws are included
- Torque insert screws to 45 in/lbs
- Inserts are not included but available (SEHW1204AFTN or similar)
- Insert size is .5 inch square X .187 thick X 20 deg side clearance X .218 hole
- Insert pockets are precision machined to maintain perfect concentricity
- Inserts can be indexed 4 times in this cutter
- Maximum depth of cut is .230 inches
