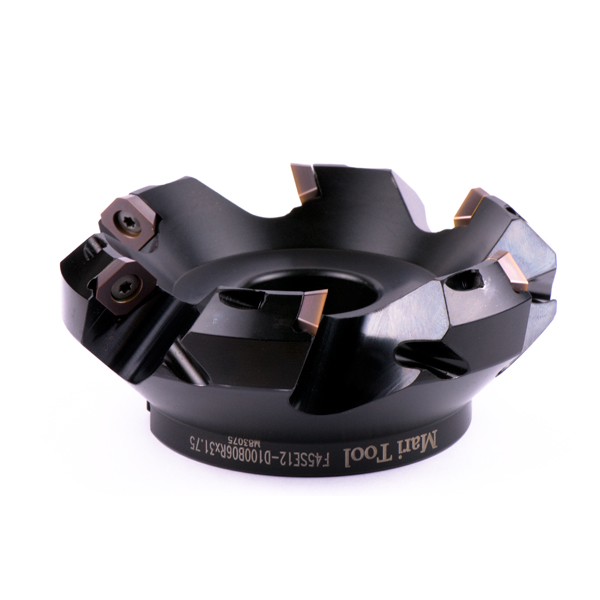

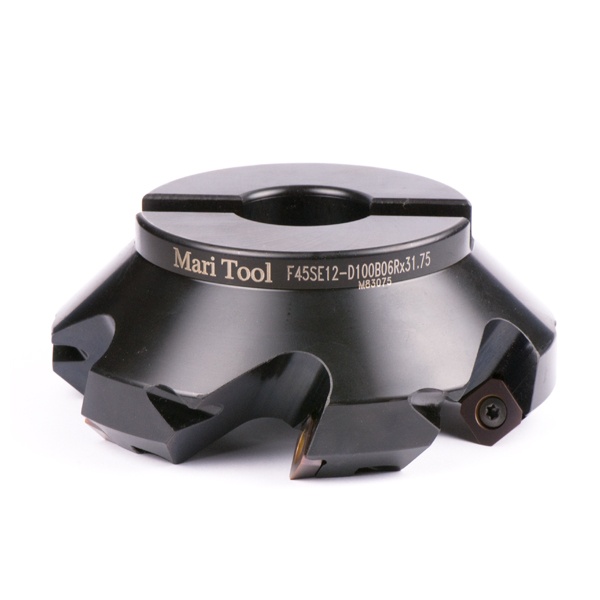

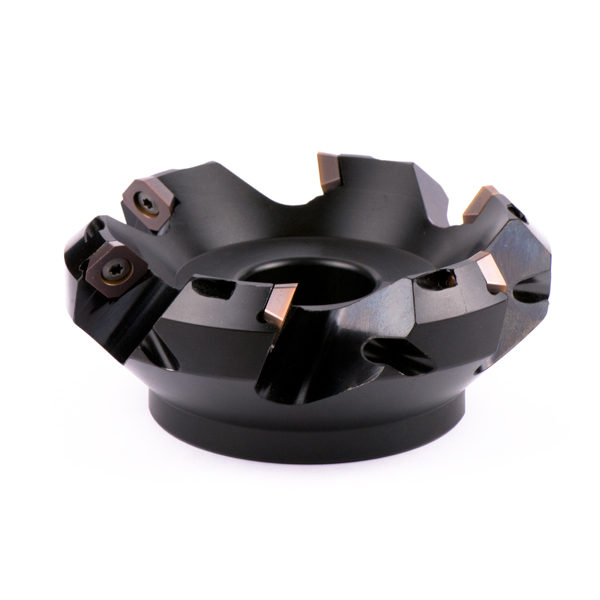

• 6 flute indexable shell mill

• 3.94 inch (100mm) cutting diameter at tip
• This cutter is 2.0 inches tall

• 1.25 inch arbor hole

• Largest body diameter is 4.57 inches
• All critical surfaces precision ground
• Made from alloy steel for excellent vibration control
• Torx wrench and insert screws are included

• Torque center arbor screw to 55 ft/lbs
• Torque insert screws to 45 in/lbs
• Inserts are not included but available (SEHW1204AFTN or similar)

• Insert size is .5 inch square X .187 thick X 20 deg side clearance X .218 hole

• Insert pockets are precision machined to maintain perfect concentricity

• Inserts can be indexed 4 times in this cutter

• MariTool Part# is F45SE12-D100B06R-31.75
