Bottoming Style DIN Length TiCN Coated Tap 1/4-28 H4 $37.80

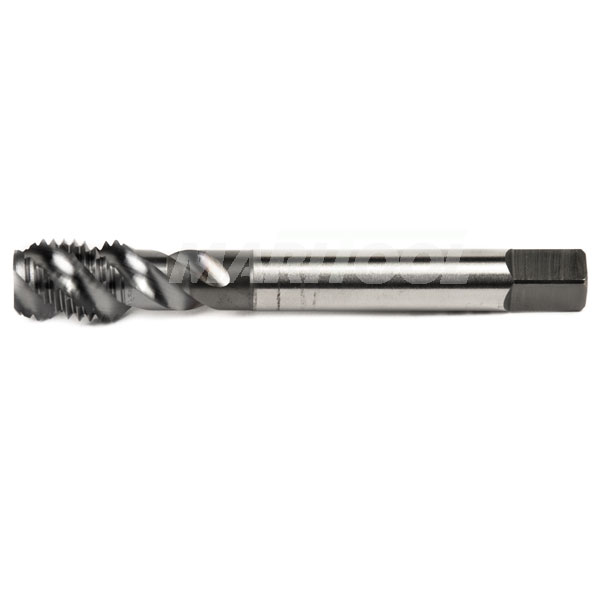

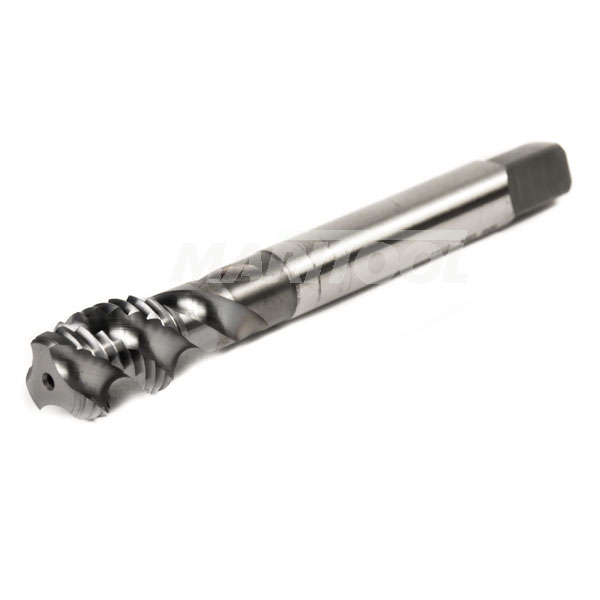

Bottoming Style DIN Length TiCN Coated Tap 1/4-28 H4
Click to enlarge

Bottoming Style DIN Length TiCN Coated Tap 1/4-28 H4
Click to enlarge 		Bottoming Style DIN Length TiCN Coated Tap 1/4-28 H4
Click to enlarge
Item No. 4412-1/4-28-H4-TiCN
Price: $37.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

CLICK HERE to download our Speeds and Feeds Chart.

  • Primarily designed for tapping blind holes. The spiral flutes draw the chips out of the hole.
  • Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness
  • DIN Length - longer than standard USCTI length - provides extra reach in tapping applications
  • ANSI Shank - made to standard American dimensions - fits standard tap holders
  • Made from Premium High Speed Steel - TiCN Coated
  • Thread Length: .433
  • Size: 1/4-28-H4
  • Neck Length: .748
  • Number of Flutes: 3
  • Total Length: 3.150
Product Specifications
Finish:  TiCN
Neck Length:  .748
Number of Flutes:  3
Pitch Diameter:  28
Size:  1/4
Thread Length:  .433
Thread Limit:  H4
Total Length:  3.150
