Bottoming Style DIN Length Steam Oxide Tap 8-32 H2 $15.25

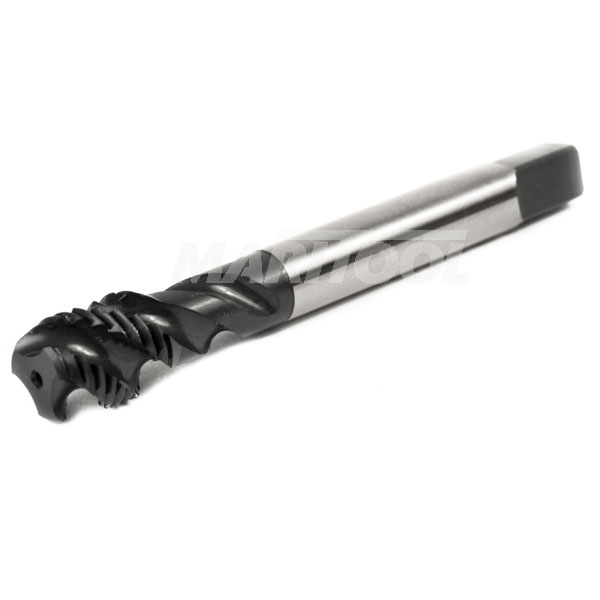

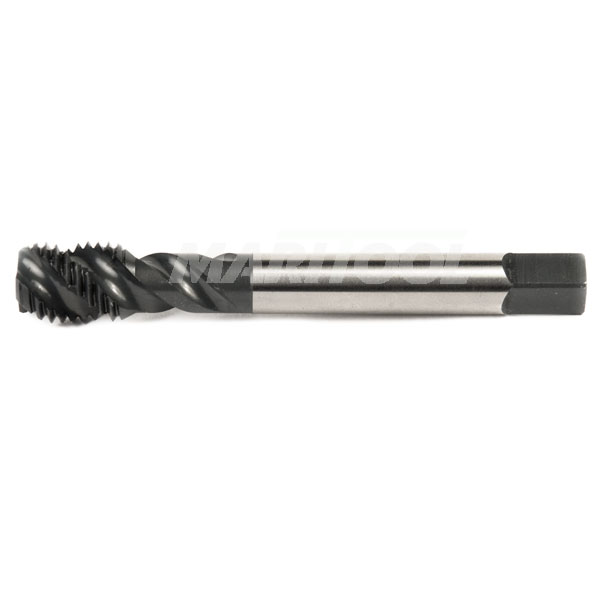

Bottoming Style DIN Length Steam Oxide Tap 8-32 H2
Click to enlarge

Bottoming Style DIN Length Steam Oxide Tap 8-32 H2
Click to enlarge 		Bottoming Style DIN Length Steam Oxide Tap 8-32 H2
Click to enlarge
Item No. 4410-8-32-H2
Price: $15.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

CLICK HERE to download our Speeds and Feeds Chart.

  • Primarily designed for tapping blind holes. The spiral flutes draw the chips out of the hole.
  • Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness
  • DIN Length - longer than standard USCTI length - provides extra reach in tapping applications
  • ANSI Shank - made to standard American dimensions - fits standard tap holders
  • Made from Premium High Speed Steel - Steam Oxide Finish
  • Thread Length: .236
  • Size: 8-32-H2
  • Neck Length: .591
  • Number of Flutes: 3
  • Total Length: 2.480
Product Specifications
Neck Length:  .591
Number of Flutes:  3
Pitch Diameter:  32
Size:  8
Thread Length:  .236
Thread Limit:  H2
Total Length:  2.480
