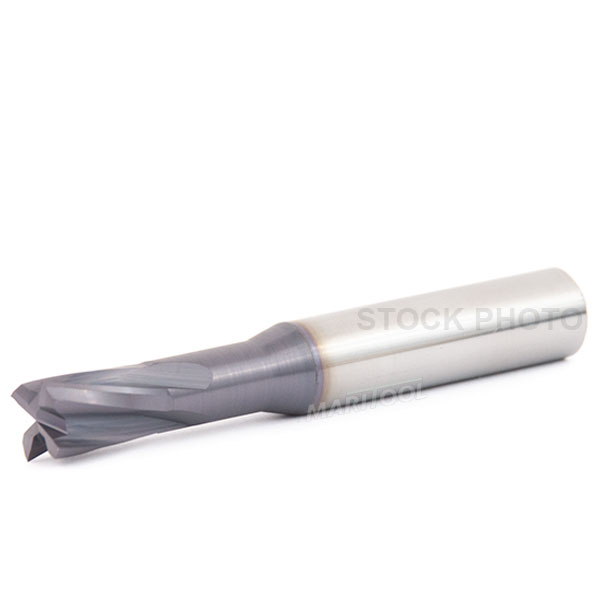

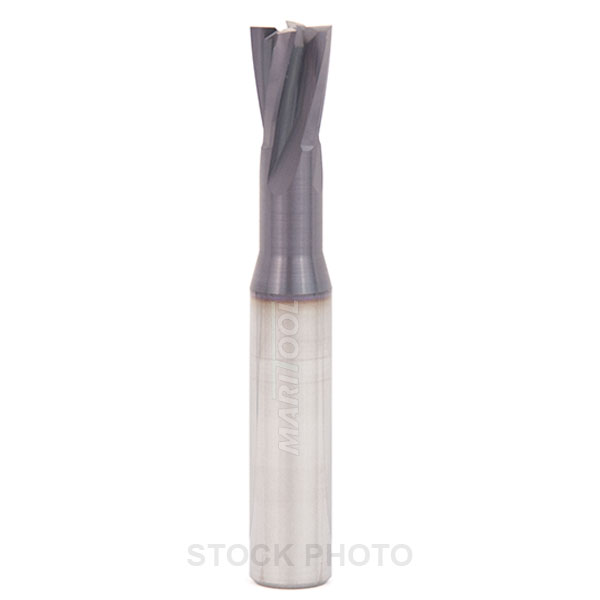

Solid Carbide Dovetail Cutter .375 dia X 4 degree included $64.65
Solid Carbide Dovetail Cutter .375 dia X 4 degree included
Click to enlarge

Solid Carbide Dovetail Cutter .375 dia X 4 degree included
Click to enlarge 		Solid Carbide Dovetail Cutter .375 dia X 4 degree included
Click to enlarge
Solid Carbide Dovetail Cutter .375 dia X 4 degree included
Click to enlarge
Item No. 2434-.375-4D-1
Price: $64.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2434-.375-4D-1
PDF file
Product Info

View complete catalog page

Dovetail cutters are designed for cutting dovetails in a wide variety of materials. Also can be used for chamfering or milling angles on bottom surface of a part.

  • Angle tolerance is + - 1/2 degree
  • Cutting diameter is +0.0 -.002
  • Neck diameter +-.0015
Product Specifications
Coating:  AlCrN
Corner Radius:  none
Cutting Diameter:  .375
Flat:  none
Helix Angle:  30 degree
Included Angle:  4 degree (2 per side)
Material:  Solid Carbide
Neck Diameter:  .332
Number of Flutes:  4
Shank Size:  .375 dia
Total Length:  2.5
Total Reach (flute length + neck width):  1.0
Width:  .625
