Solid Carbide Dovetail Cutter .3125 dia X 60 degree included $59.65

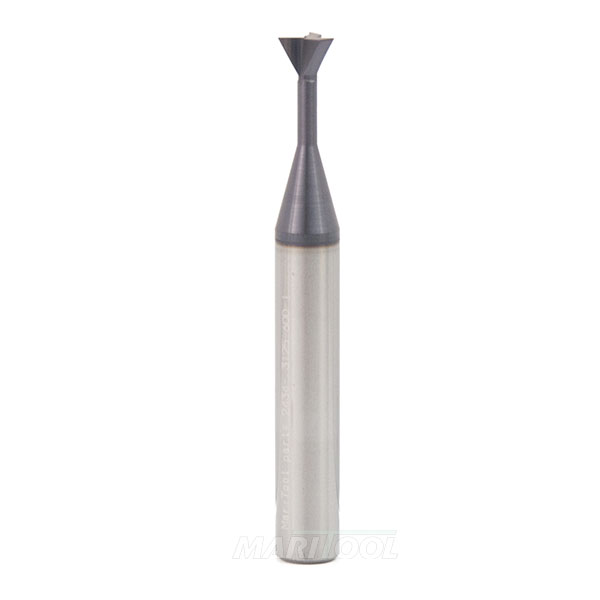

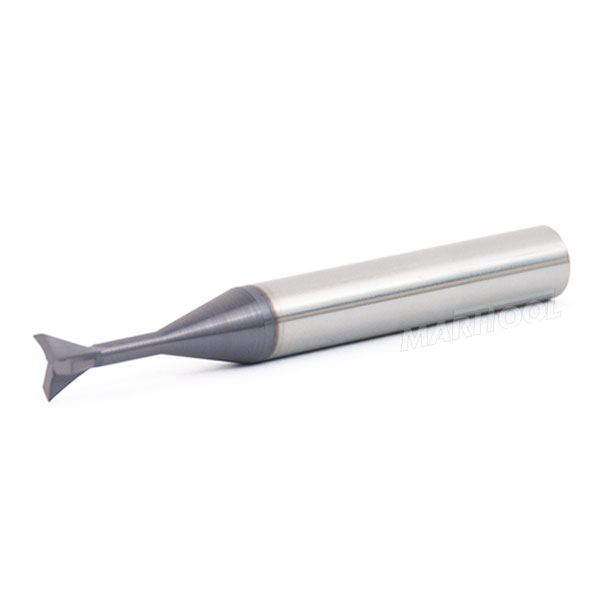

Solid Carbide Dovetail Cutter .3125 dia X 60 degree included
Click to enlarge

Solid Carbide Dovetail Cutter .3125 dia X 60 degree included
Click to enlarge 		Solid Carbide Dovetail Cutter .3125 dia X 60 degree included
Click to enlarge
Solid Carbide Dovetail Cutter .3125 dia X 60 degree included
Click to enlarge
Item No. 2434-.3125-60D-1
Price: $59.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2434-.3125-60D-1
PDF file
Product Info

View complete catalog page

Dovetail cutters are designed for cutting dovetails in a wide variety of materials. Also can be used for chamfering or milling angles on bottom surface of a part.

  • Angle tolerance is + - 1/2 degree
  • Cutting diameter is +0.0 -.002
  • Neck diameter +-.0015
Product Specifications
Coating:  AlCrN
Corner Radius:  none
Cutting Diameter:  .3125
Flat:  none
Helix Angle:  0 degree
Included Angle:  60 degree (30 per side)
Material:  Solid Carbide
Neck Diameter:  .097
Number of Flutes:  3
Shank Size:  .3125 dia
Total Length:  2.5
Total Reach (flute length + neck width):  .500
Width:  .187
